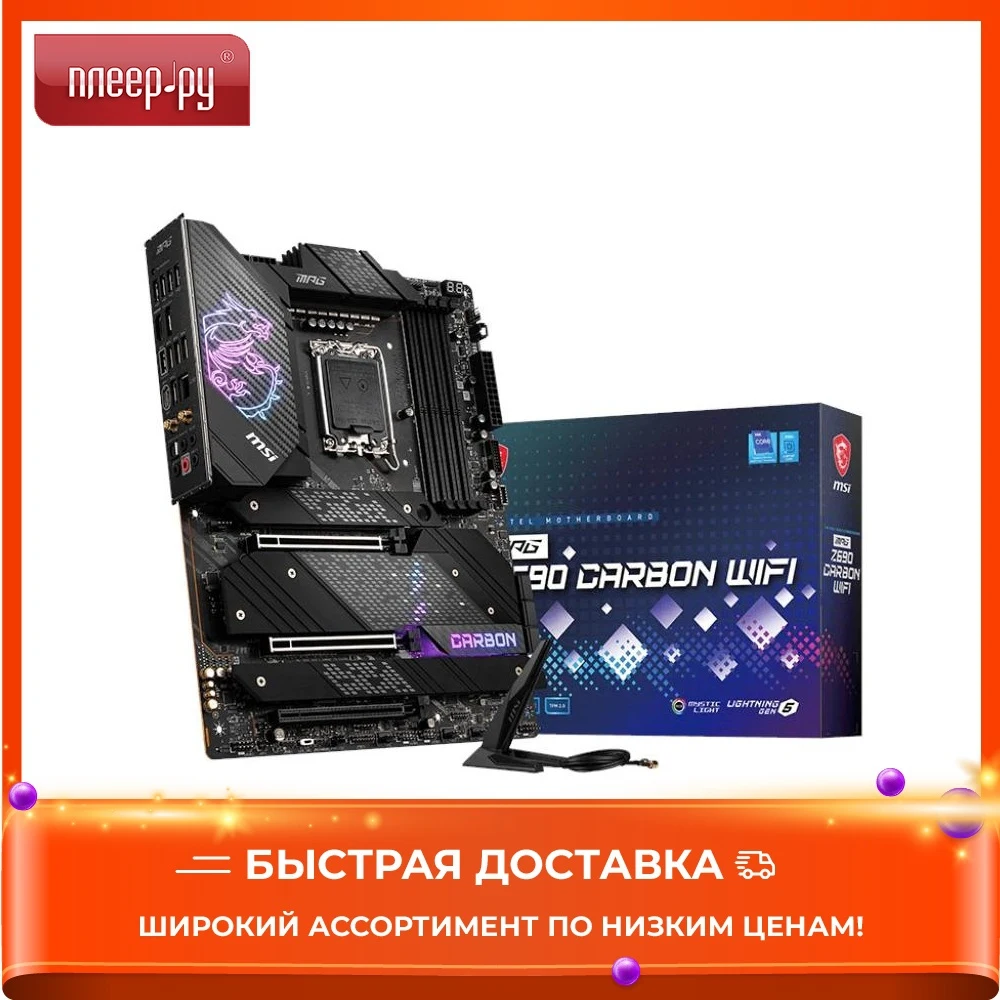

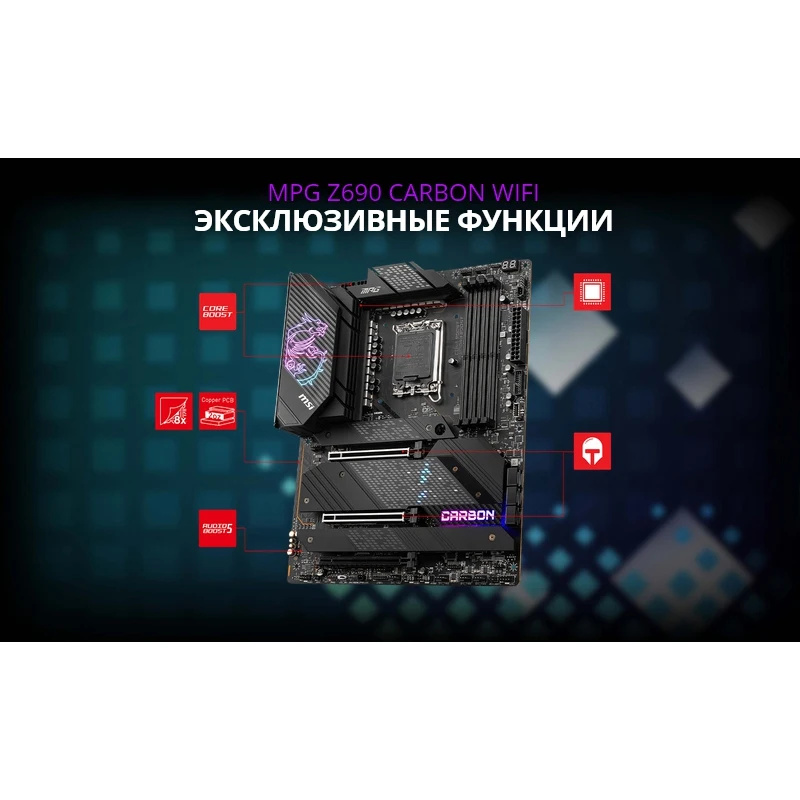

Motherboard MSI mpg z690 carbon WiFi

Form factor ATX (30.5x24.4 cm). For Intel 12th generation CPU®Core™Pentium®Celeron®For LGA 1700 connector. DDR5 memory with a frequency of 6666 MHz and above (in overclocking mode). Slots PCIe 5.0, M.2 (PCIe 4.0x4). USB connectors 3.2 gen2x2.
Technical description
Processor

Support Intel®12 generation Core™Pentium®Gold Celeron®
Processor connector: lga1700

Chipset


Intel®Z690

Memory


4 DDR5 slots, support up to 128 GB
Support 1R 4800 MHz (by JEDEC & Por)
Max frequency at overclocking:

1DPC 1R ~ 6666 MHz
1DPC 2R up to 5600 MHz
2DPC 1R ~ 4000 MHz
2DPC 2R up to 4000 MHz


Support Intel®XMP 3.0 OC
Support Dual Controller dual-channel mode
Memory support non-ECC, un-buffered

Expansion slots


3x PCIe x16
PCI _ E1 & PCI _ E2 slots (from CPU)

Support PCIe 5.0
Support x16/X0, X8/X8


PCI _ E3 slot (from z690 chipset)

PCIe 3.0x4 support



Video outputs


1x HDMI 2.1 with HDR, Max. 4K 60Hz
1x DisplayPort 1.4 with hbr3, Max. 4K 60Hz

Multi-GPU mode


Support AMD®CrossFire™

Storage


4x SATA 6 Gb/s-sata5 ~ 8 * (z690 chipset)
2 x SATA 6 Gb/s-sataa & satab (ASMedia asm1061)
5x M.2 (Key M)

M2 _ 1 (CPU)

PCIe 4.0x4 support
Support 2260/2280/22110 devices


M2 _ 2 slot (z690 chipset)

PCIe 4.0x4 support
Supports 2260/2280 devices


M2 _ 3 slot (z690 chipset)

PCIe 4.0x4 support
Support 2242/ 2260/2280/22110 devices


M2 _ 4 slot (z690 chipset) 1

PCIe 3.0x4 support
SATA 6 Gb/s support
Support 2242/2260/2280 devices


M2 _ 5 slot (z690 chipset)

PCIe 4.0x4 support
SATA 6 Gb/s support
Supports 2260/2280 devices


M2-2 ~ 5 with Intel memory support®Optane™


Support Intel®Smart response for Intel Core processors™
* Sata7 will be unavailable when installing M.2 SATA SSD into m2 _ 4 slot.

RAID


RAID 0, RAID 1 and RAID 10 for SATA devices
RAID 0, RAID 1 , RAID 5 and raid 10 for M.2 NVMe devices

USB


Intel®Z690 Chipset

1x usb3.2 gen2x2 20Gbps Type-C on the back
6x USB 3.2 Gen 2 10Gbps (5 type-A on the back, 1 Type-C available via internal connector)
2x USB 3.2 Gen 1 5Gbps Available via internal connector
4 USB 2.0 on the back


USB Hub-GL850G

4x USB 2.0 available via internal connector



Audio


Realtek®ALC4080 Codec
7.1-Channel high definition audio
Support S/PDIF output

WiFi & Bluetooth


Intel®WiFi 6E
WiFi module preinstalled in M.2 slot (key-E)
Support MU-MIMO Tx/Rx, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
Support 802.11 a/ b/ g/ n/ ac/AX
Support Bluetooth 5.22, FIPS, FISMA

Internal connectors


1x24-pin ATX main power connector
2x8-pin ATX 12V power connectors
6x SATA 6 Gb/s connectors
5x M.2 slots (m-key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 type-A connectors (supports additional 4 USB 2.0 ports)
1x4-pin CPU fan connector
1x4-pin water-pump fan connector
6x4-pin system fan connectors
1x front panel audio connector
2X system panel connectors
1x chassis intrusion connector
1x clear CMOS jumper
1x TPM module connector
1x TBT connector (supports rtd3)
1x tuning controller connector
Features of light
1x EZ LED control switch
4x EZ debug led
1x2-digit debug code led
1x4-pin RGB LED connector
2x3-pin rainbow led connectors
1x3-pin Corsair led connector

Back panel connectors


USB 2.0
DisplayPort
2.5G LAN
WiFi/Bluetooth
Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF out

Form factor


ATX
30.5x24.4 cm

Mount


9 holes
