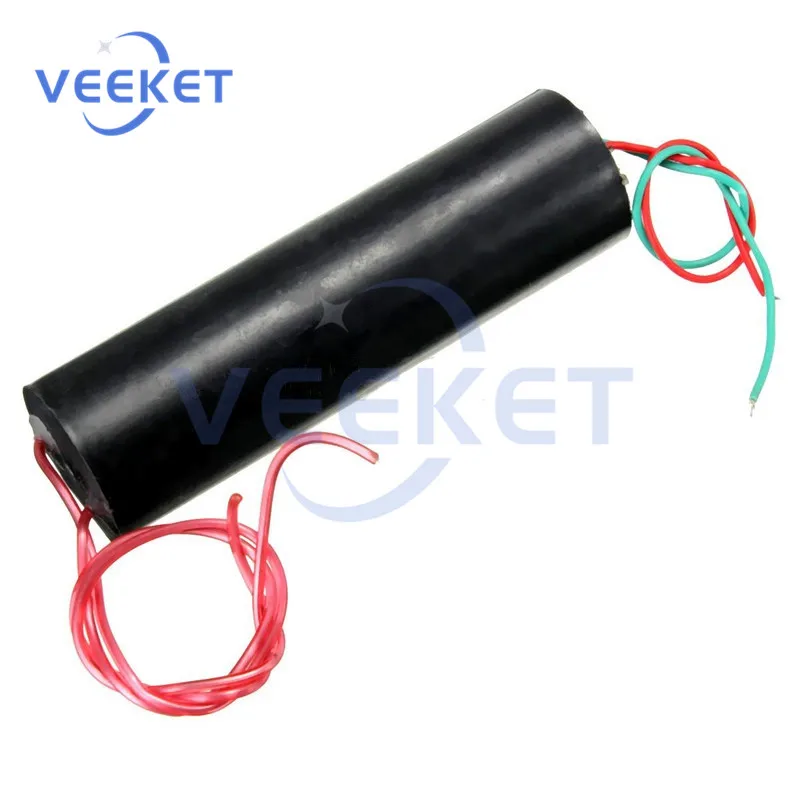

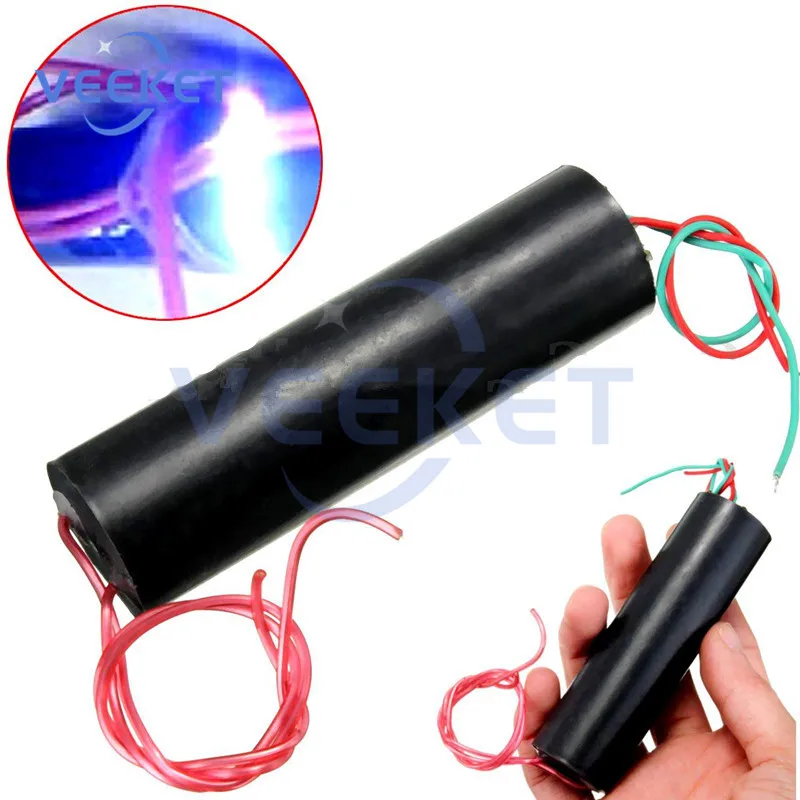

1000KV 1000000V Pulse Inverter DC 3.7-7.4V High Voltage Generator Boost Step up Ignition Coil Pulse Power Module Igniter Module

"Product Specifications:

Module type: MC-901

Input voltage: 3.7V-7.4V

Input current: 0.5A-1A

Input wire length: 9 cm

High voltage type: Pulse DC type

Output voltage: 800KV-1000KV (please pay attention to safety when using)

Output current: 0.5A-1A

Output length: approximately 16 cm

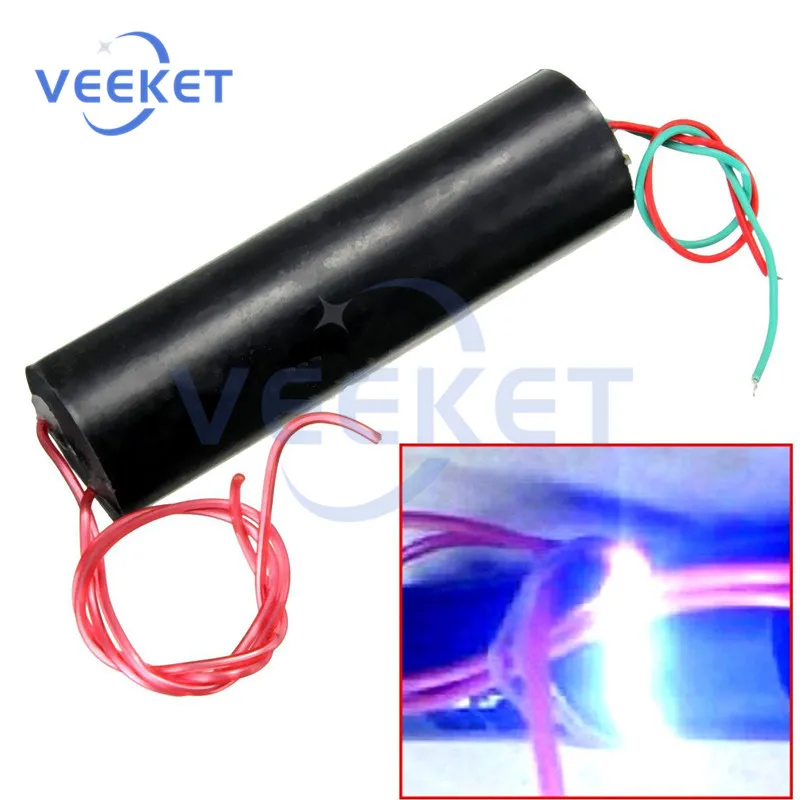

High voltage bipolar discharge distance 1.5 cm-2 cm

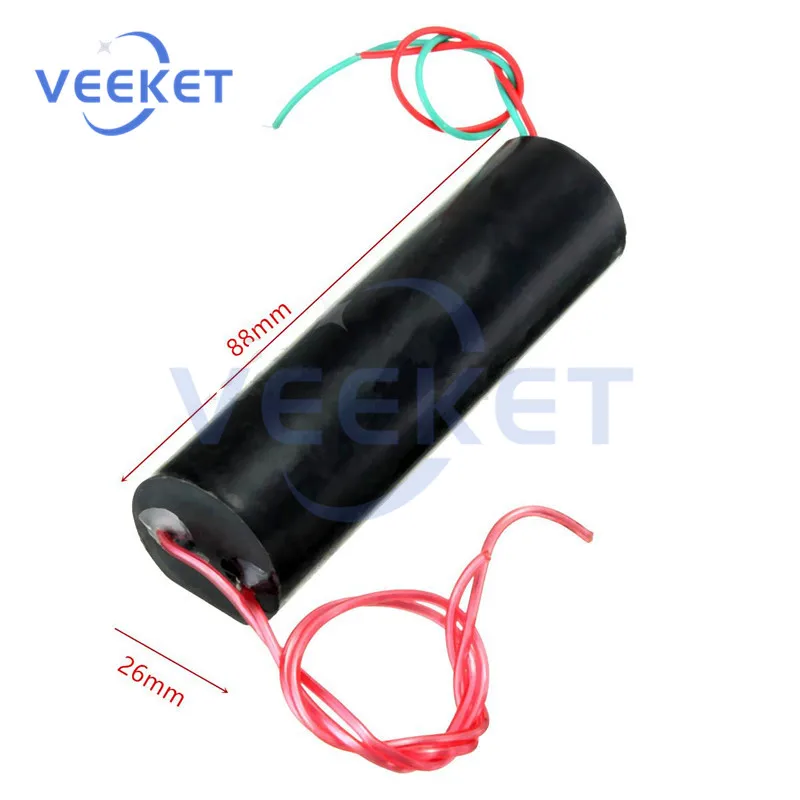

Size: 88x26mm (LXD)

Precautions for module use:

1. High-voltage modules should avoid using high-voltage no-load, and the power supply must

Adjust before the end of the appropriate distance of the high-voltage line, high-voltage wire drawing

The distance is proportional to the voltage and capacity of the battery used.

2. In the short to long experiment, test the arc distance when the power supply is prohibited

Beyond the longest arc distance, because the high-voltage energy cannot be released,

It is easy to damage the module.

3. When the module is powered, the internal heat is not hot, so it does not take a long time to work.

Package Included:

1XHigh Voltage Inverter"
