Описание товара
Description

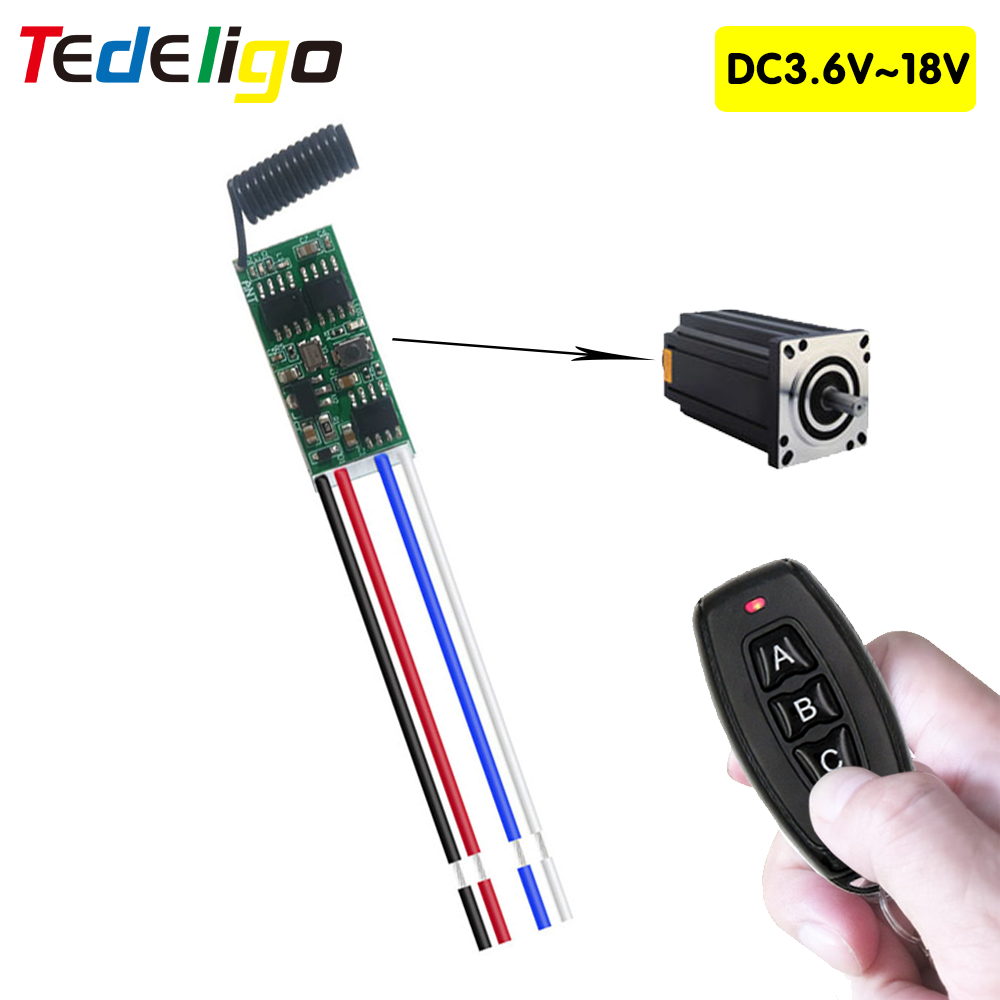

433.92Mhz Wireless RF Relay Receiver Module DC 3.6V 6V 12V 1CH Remote Control Switch and Transmitter for Forward and Reverse DIY
Application environment:
Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Features:
*Wireless control LED lamp string, Christmas tree light string, light control switch.
*Long range working voltage.
*Ultra low power,High sensitive response.

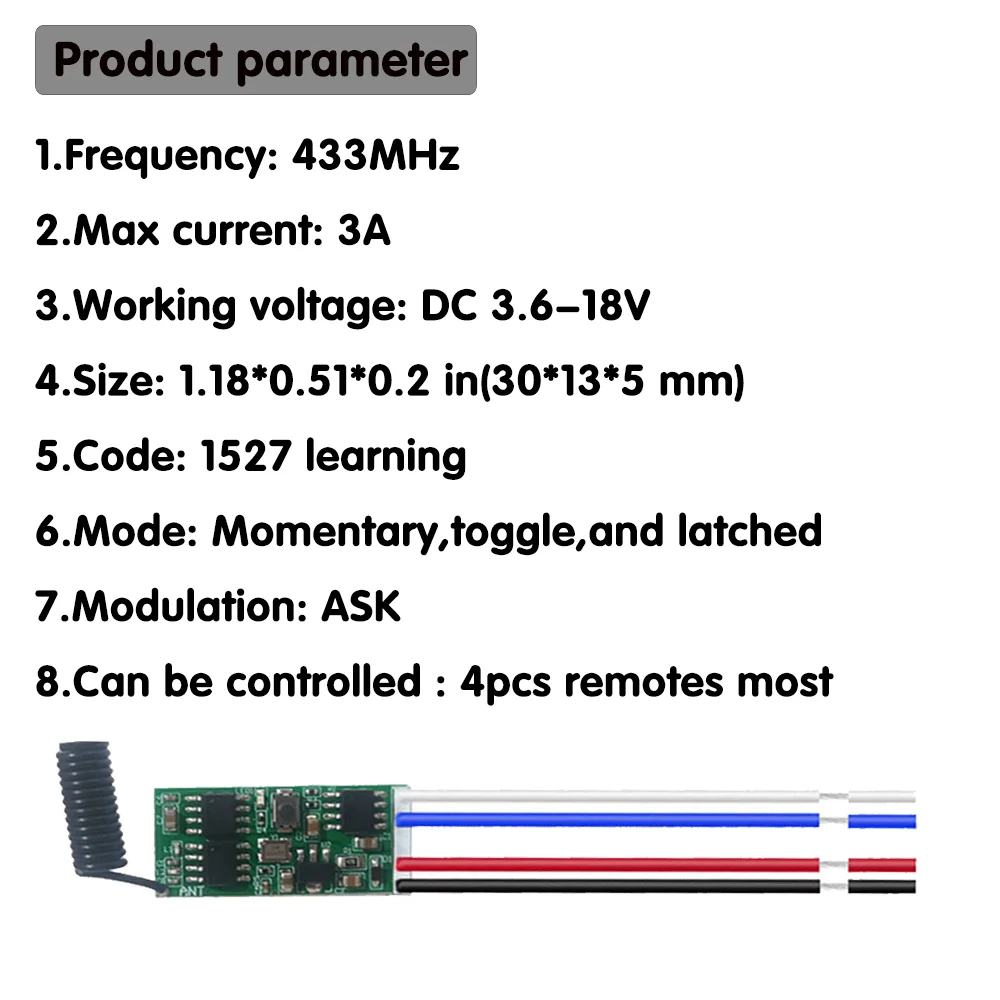

Specifications Of The Receiver:
Working Voltage: DC 3.6V~18V.
Maximum Load: 3A.
Static Current: 3.6 mA ~ 5.5mA.
Working Frequency: 433MHz.
Reception Sensitivity: ≥ -107dBm.
Modulation Mode:ASK (superheterodyne).
Number Of Stored Remote Controls: ≤ 10.
Working Mode: Momentary, Toggle, Latching Mode.
Learning Style: Learning Button.
Working Temperature: -20 degrees 80 degrees.
Specifications Of The Receiver:
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.
Working Voltage: DC 6V.
Working Current: 12mA.
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: ±0.2MHz.
Color: Black.
Battery:2*CR2016

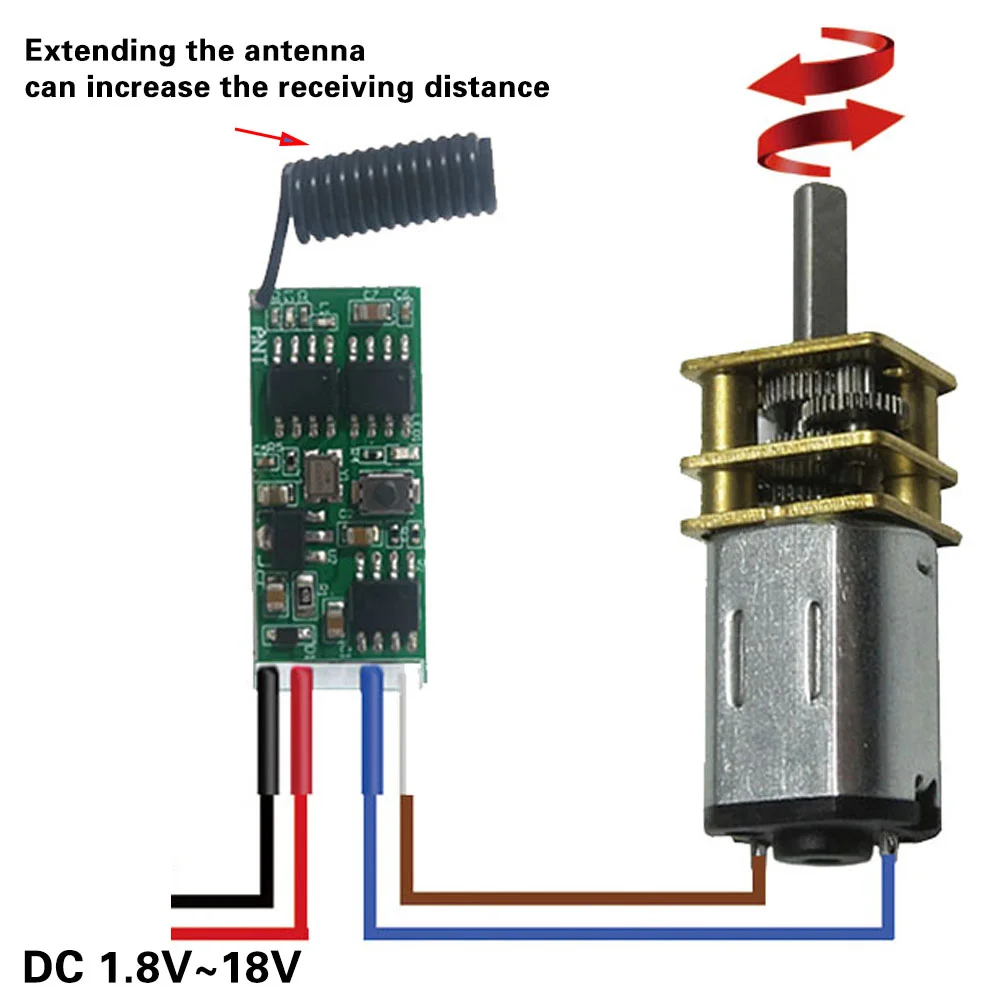

Wiring Diagram
Operating Mode
You can match the Transmitter with the Relay Receiver Module in 3 modes.
Momentary Mode:1. Press and hold one button, relay will turn on;
2. Release the button, this relay will turn off.
1. Press button "A", relay will turn on;
2. Press button "A" again, this relay will turn off.
Latched mode:
1. Press button "A", relay will turn on;2. Press button "B", this relay will turn off.
Delete the existing data about operating modes
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.Note:
1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
2. After deleted the data, all the remote controls cannot work any more.

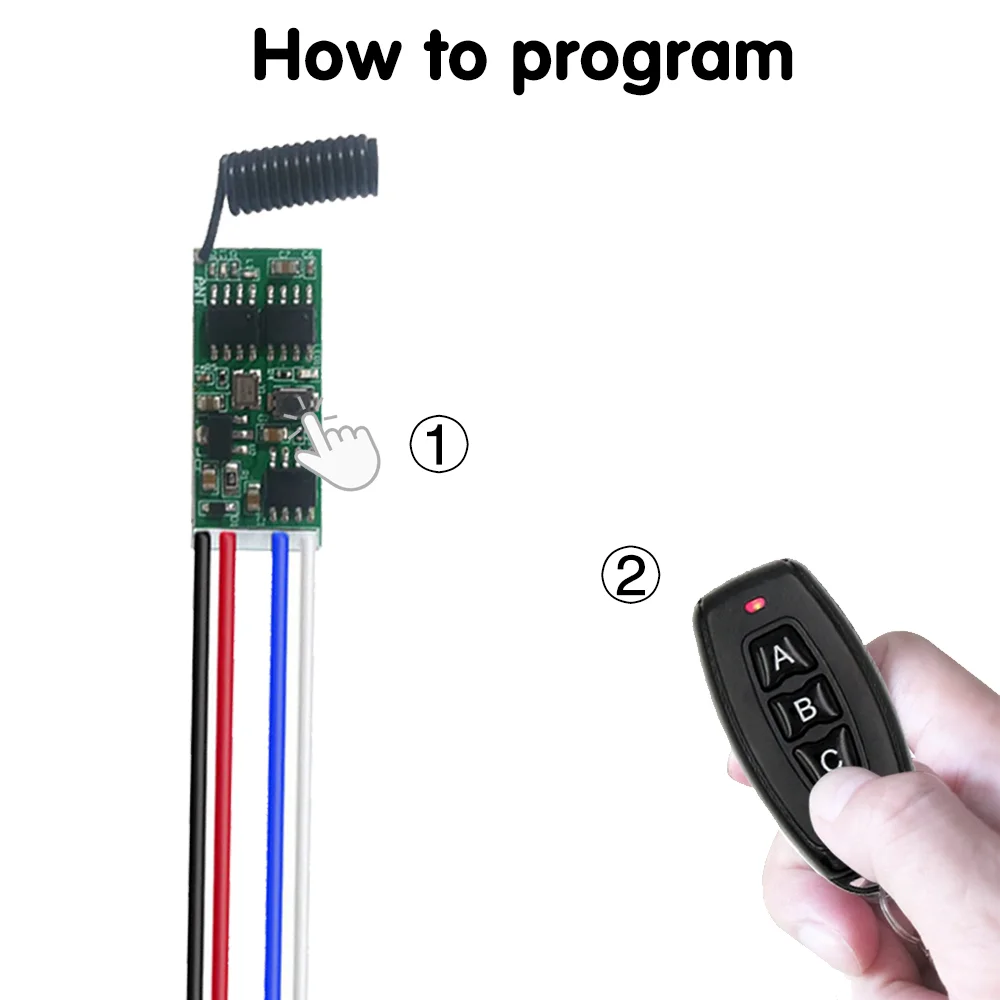

Set up
Set up(Momentary)
1. Press the learning button(on the Receiver) once. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.
Set up(Toggle)
1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;2. Press one button on the remote control. Wait for 3 seconds. Succeed.
Set up(Latched)
1. Press the learning button(on the Receiver) third times. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.
*We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you.*
