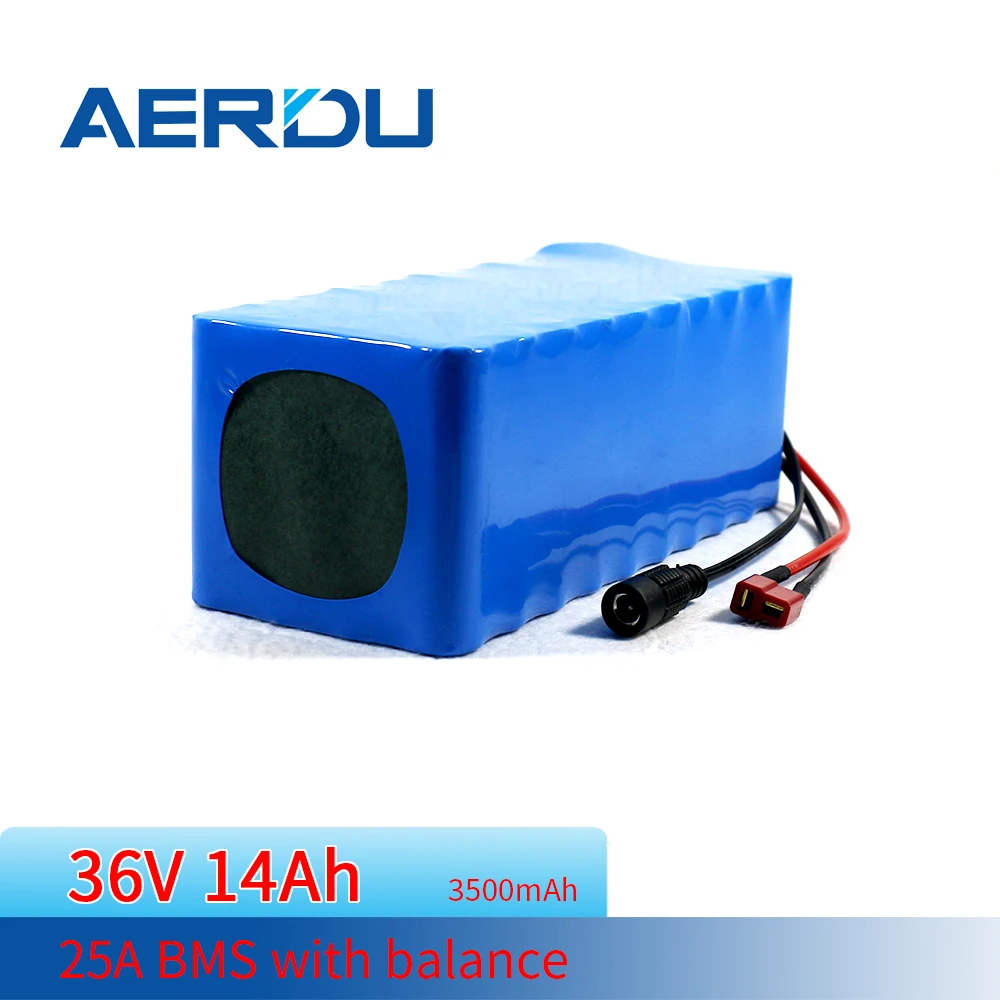

AERDU 36V 10S4P 37V 14AH 18650 Liion Battery Pack for Balance Car Skateboard E-bike Scooter Built In 25A BMS XT60 DC T pulg |

AERDU 36V 10S4P 37V 14AH 18650 Liion Battery Pack for Balance Car Skateboard E-bike Scooter Built In 25A BMS XT60 DC T pulg |

Specifications

Model: AED-361400

Cell type: AED-35P(18650 3500mAh)

Cell count: 40 pieces(10S4P)

Nominal voltage: 36V/37V

Typical capacity: 14Ah/500Wh

Rated power: 700Watt

Output voltage range: 25V-42V

Discharge cut-off voltage: 25V

Charge cut-off voltage: 42V

Charge method: CC-CV

Charge current limit: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

BMS work current: Discharge 25A Charge 5A

BMS type: Separate port

Connector: T Plug for discharge and DC 5521 for charge

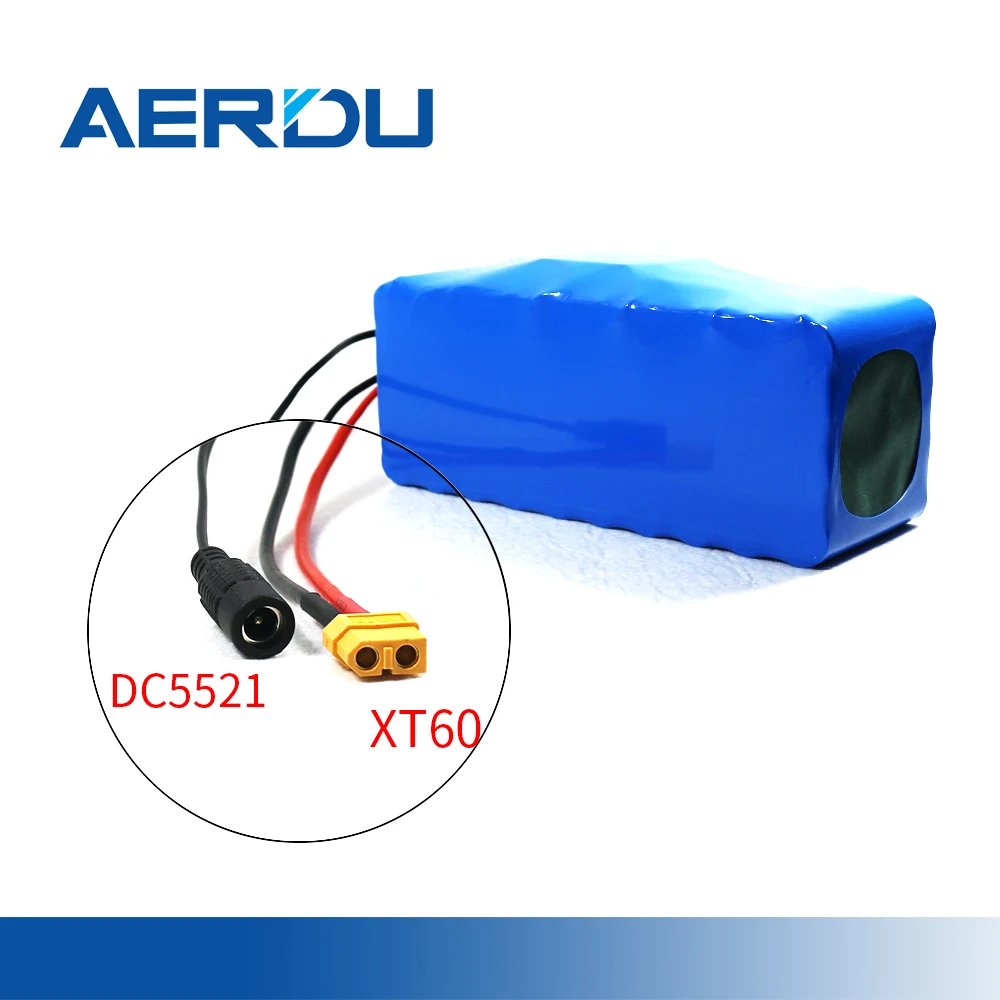

                   XT60 for discharge and DC5521 for charge

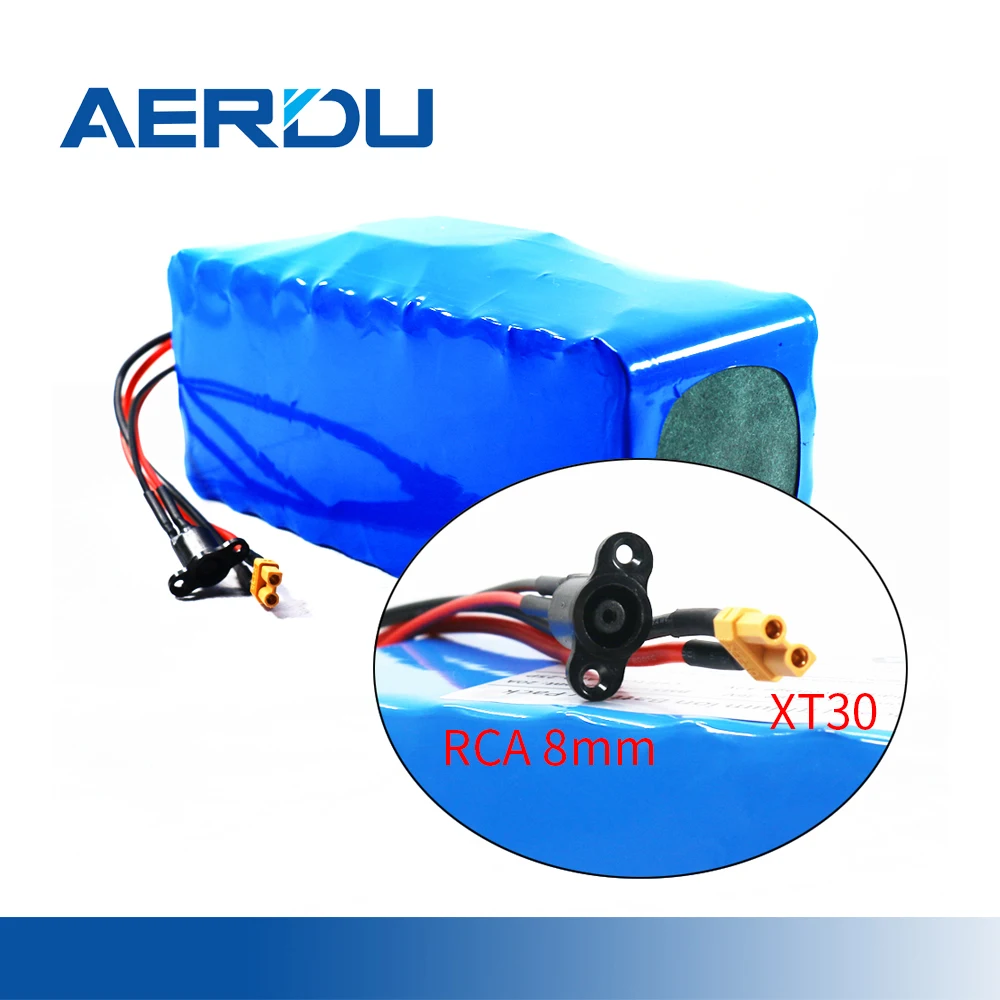

                 XT30 for discharge and RCA 8mm for charge

Package: heat shrinkable PVC, random color

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

Size: 185*85*70mm(±3mm)

Weight: 1900g(±50g)

We can customize the battery pack according to your requirements. If you need to customize it, please contact the store customer service.

Warranty

* Period: 1year

* Coverage: Only Cells, other part are not covered by the warranty.

* Warranty restrictions:Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.

*Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.

* Some countries support 15-day free local return service,If you are not satisfied with the product, please return it within 15 days.

About shipping

Shipping list:

1 pcs battery pack

Shipping reference time:

Default Standard shipping(Postal parcel)

 15-60 working days(Different timeliness in different regions)

This time is for reference only, and the actual transportation time shall prevail.

If you need faster shipping service Or have questions about transportation, please contact store customer service.

Attention!

*The default price does not include duty and tax,Except for special instructions. If you have any questions, please contact the store customer service.

* The weight and size data are obtained by manual measurement and may be subject to deviation,please refer to the actual product..

*The packaging and appearance of the product will be updated and iterated, and may be changed without notice. The image is for reference only, please refer to the actual product.

* The description performance parameter data comes from the AERDU laboratory,Please refer to the actual result.The actual test results will be affected by the test conditions (such as temperature, Heat loss,wire loss, test equipment accuracy, test parameters, etc.). Please perform multiple tests and take the average of the results to reduce the deviation.

*Usually we accept The temperature is 25 degrees Celsius, and the deviation between the pure resistance discharge test results within the description performance parameters and the description data is about 10% is normal .

*Battery is a dangerous product. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions And protective measures when using the battery.
