Cheap High Precise 0.2mm Pulse RS485 Output ABS Plastic Tipping Bucket Rain Gauge | Sensors
История изменения цены
*Текущая стоимость 6554.43 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 7799.86 руб. | 8189.62 руб. | 7994 руб. |
| Aug-15-2025 | 7734.60 руб. | 8121.52 руб. | 7927.5 руб. |
| Jul-15-2025 | 6488.85 руб. | 6812.64 руб. | 6650 руб. |
| Jun-15-2025 | 7603.38 руб. | 7983.0 руб. | 7793 руб. |
| May-15-2025 | 6620.42 руб. | 6951.59 руб. | 6785.5 руб. |
| Apr-15-2025 | 7472.86 руб. | 7846.91 руб. | 7659 руб. |
| Mar-15-2025 | 7406.68 руб. | 7776.75 руб. | 7591 руб. |
| Feb-15-2025 | 7340.49 руб. | 7707.4 руб. | 7523.5 руб. |
| Jan-15-2025 | 7275.48 руб. | 7639.44 руб. | 7457 руб. |
Описание товара
Description
Product Description| Product Name | 0.2mm Pulse/RS485 output ABS tipping bucket rain gauge | |
| Material | ABS | |
| Resolution | 0.2mm/0.5mm | |
| Rain inlet size | φ200mm | |
| Sharp edge | 40～45 degree | |
| Rain intensity range | 0 mm~4mm/min; Maximum rain intensity allowed 8mm/min. | |
| Measurement accuracy | ≤±3% | |
| Output | A: RS485 (standard Modbus-RTU protocol, device default address: 01) | |
| B: Pulse output | ||
| C:4-20mA/0-5V/0-10V | ||
| Power supply | 4.5~30V DC (when the output signal is RS485) | |
| Power consumption | 0.24 W | |
| Way of sending | Two-way reed switch on and off signal output | |
| Working environment | Ambient temperature: 0 ° C ~ 70 ° C | |
| Relative humidity | ＜100% | |
| Size | φ220mm×217mm |
Product Applications
Manufacturing TechniqueThe rainwater collected by the water-receiving port passes through the upper tube (funnel) and is injected into the metering tipping bucket-the tipping bucket is injection molded of engineering plastics and divided into two half-cone chambers of equal volume with a middle partition. It is a mechanical bistable structure. When one chamber receives water, the other chamber is in a waiting state. When the volume of the received rainwater reaches a predetermined value of 0.5mm, it will overturn due to gravity and be in a waiting state, and the other chamber is in a water receiving state.
When the water receiving volume reaches a predetermined value, it overturns by itself and is in a waiting state. A magnetic steelis installed on the side wall of the tipping bucket, which scans from the side of the dry reed tube when the tipping bucket is
turned over to make the dry reed tube switch on and off. That is, every time the tipping bucket is overturned, the dry reed pipe
is switched on and sends out a pulse signal.Products Description
1. ABS Durable Shell 2. No rust 3. Built-in filter circuit 1. Small size and easy installation 2. High precision and good stability
1. Dedicated four-core shielded wire 2. Water and oil proof 3. Strong anti-interference ability The rain opening is made of engineering ABS plastic, with high smoothness and small errors caused by stagnant water and stainless steel base design.

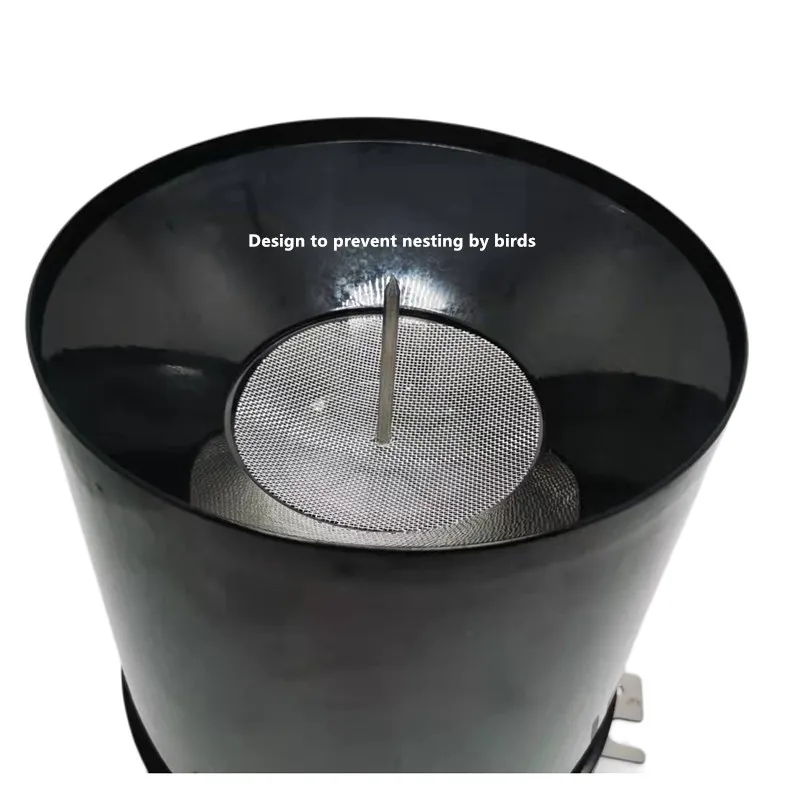

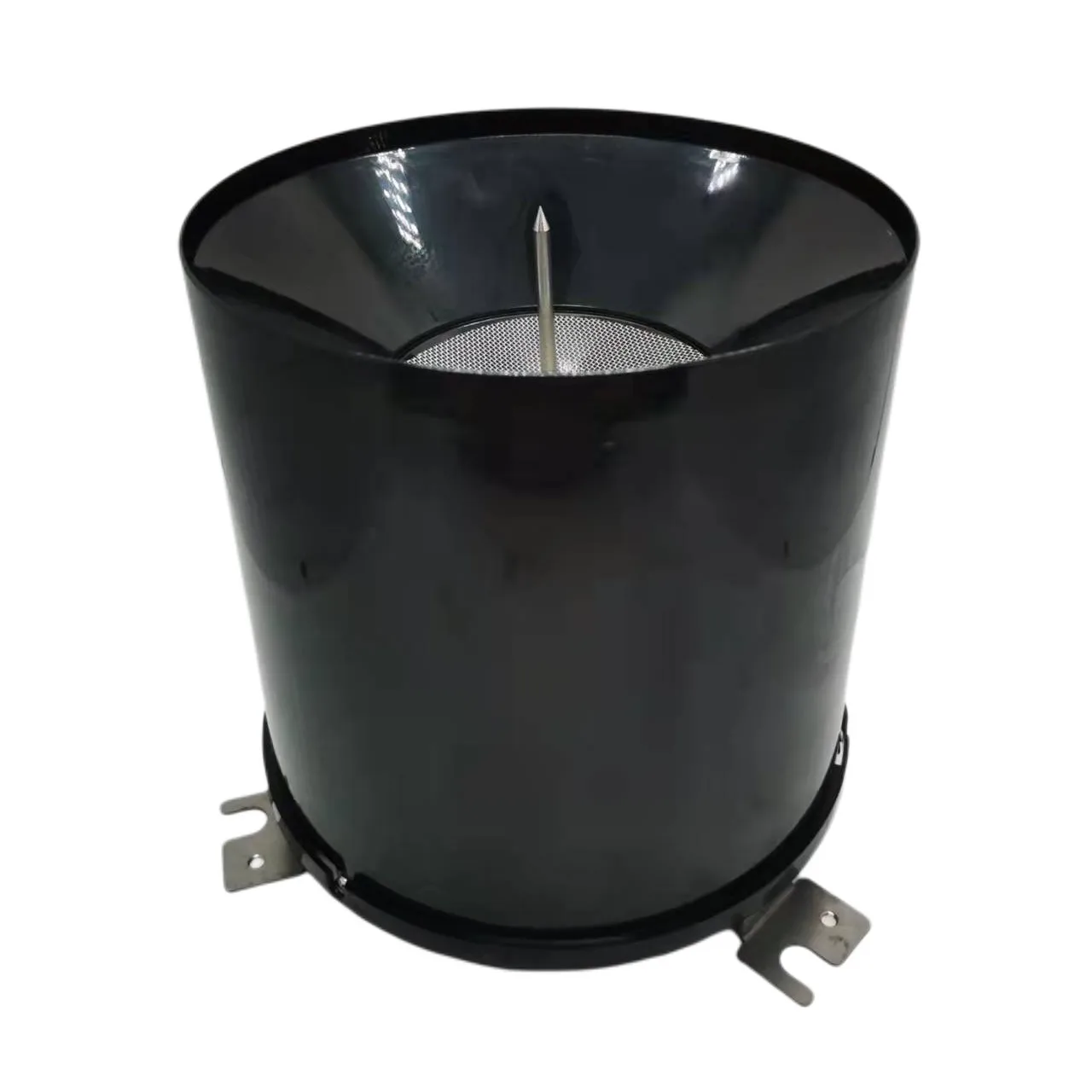

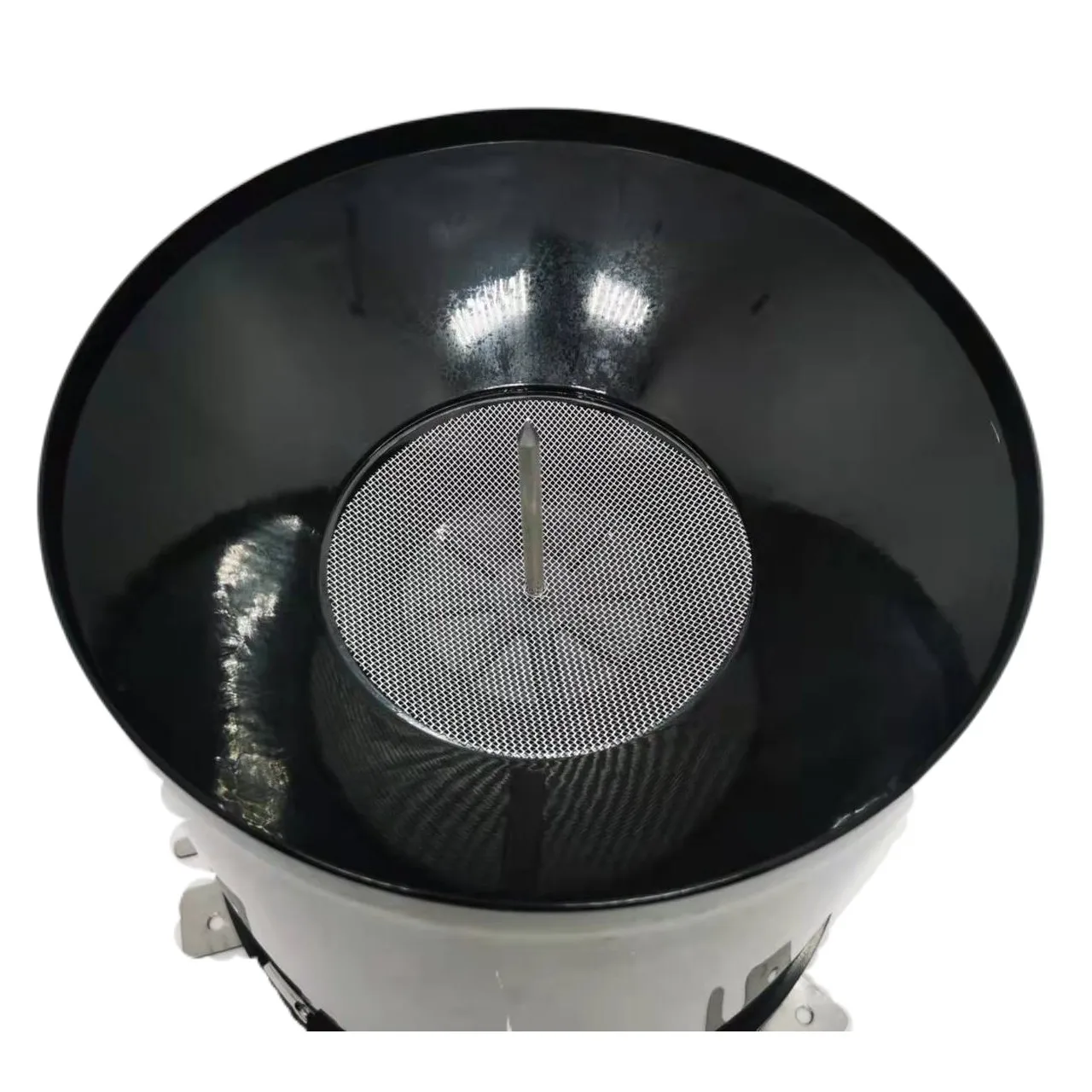

Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting. There is a level adjustment bubble inside the base to assist in adjusting the rain gauge to the suitable level.
Packing&Shipping
Company IntroductionRaindao Science and Technology CO.,Limited founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQQ: How can I get the quotation?A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once. Q: What's the main characteristics of this rain gauge sensor?A: It is ABS tipping bucket Rain Gauge with the measure resolution with 0.2mm/0.5mm and with very cheap price.Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting. Q:Could I get samples?A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What's the output type of this rain gauge?A: It including the pulse output,the RS485 output,4-20mA/0-5V/0-10V output. Q: May I know your warranty?A: Yes, usually it's 1 year. Q:What's the delivery time?A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity. Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation.Смотрите так же другие товары:
