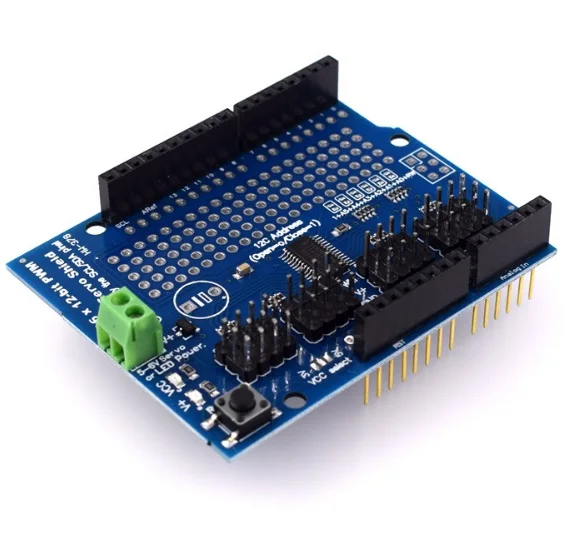

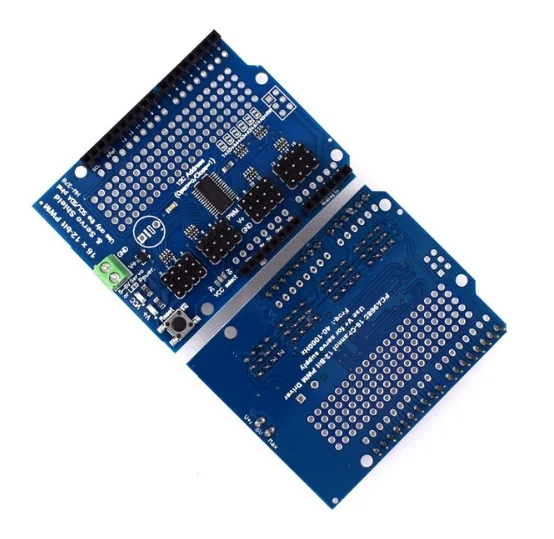

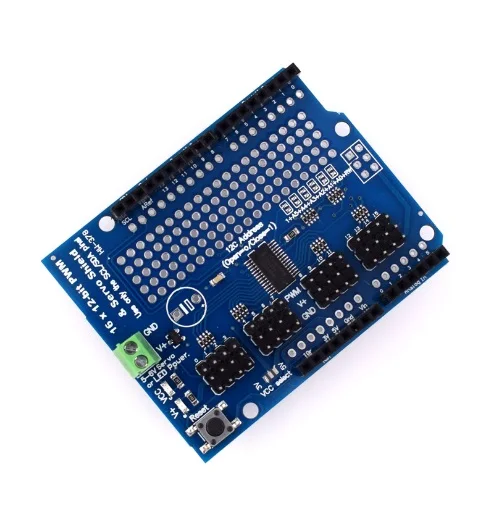

PCA9685 16 Channel 12-bit PWM Servo Drive Shield Board DC Motor Driver Module I2C Controlled |
История изменения цены
*Текущая стоимость 472,33 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-17-2025 | 562.5 руб. | 590.44 руб. | 576 руб. |
| Aug-17-2025 | 557.58 руб. | 585.62 руб. | 571 руб. |
| Jul-17-2025 | 467.31 руб. | 490.80 руб. | 478.5 руб. |
| Jun-17-2025 | 548.19 руб. | 575.76 руб. | 561.5 руб. |
| May-17-2025 | 477.76 руб. | 501.70 руб. | 489 руб. |
| Apr-17-2025 | 538.64 руб. | 565.64 руб. | 551.5 руб. |
| Mar-17-2025 | 533.24 руб. | 560.30 руб. | 546.5 руб. |
| Feb-17-2025 | 529.63 руб. | 555.36 руб. | 542 руб. |
| Jan-17-2025 | 524.34 руб. | 550.77 руб. | 537 руб. |
Описание товара
You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your microcontroller has a limited number of PWM outputs! What now?
Using only two pins, control 16 free-running PWM outputs! You can even chain up 62 breakouts to control up to 992 PWM outputs
>It's an I2C-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
>It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
>6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
>Adjustable frequency PWM up to about 1.6 KHz
>12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
>Configurable push-pull or open-drain output
>Output enable pin to quickly disable all the outputs
We wrapped up this lovely chip into a breakout board with a couple nice extras
>Terminal block for power input (or you can use the 0.1" breakouts on the side)
>Reverse polarity protection on the terminal block input
>Green power-good LED
>3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
>"Chain-able" design
>A spot to place a big capacitor on the V+ line (in case you need it)
>330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
>Solder jumpers for the 6 address select pins
