Introduction:

This is a keyestudio 2.8 inch TFT LCD shield with touchscreen. This TFT display is driven with ILI9325 chip and has 240x320 pixels with individual RGB pixel control.

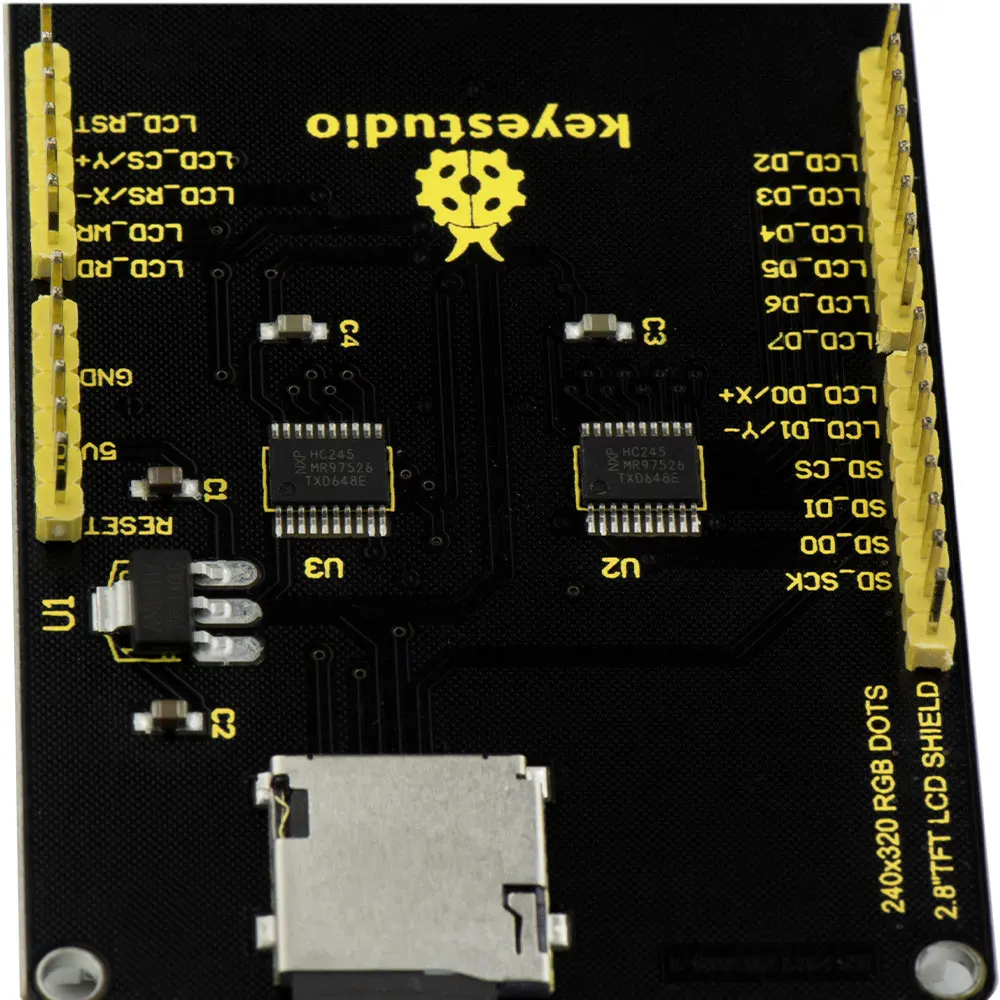

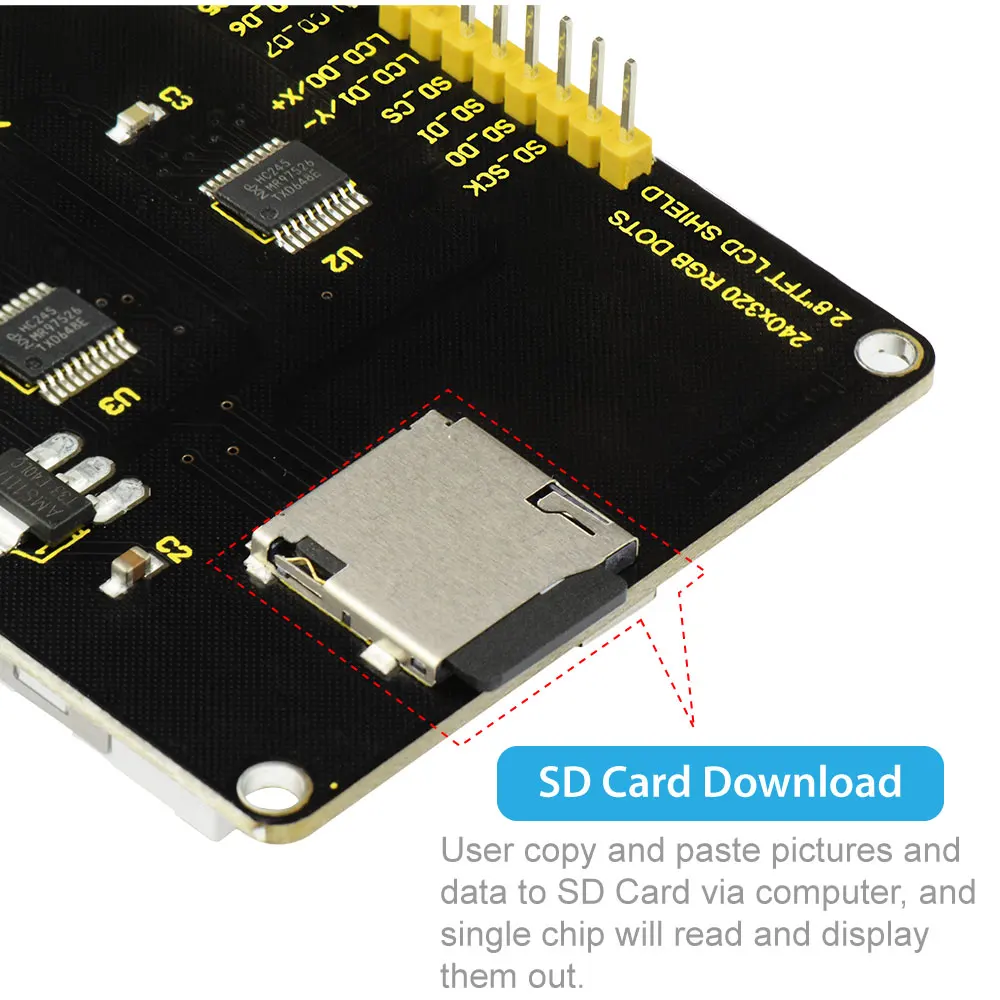

This display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. It also comes with a Reset button marked K1 and MicroSD card socket on the back. (microSD card not included, but any will work)
This LCD shield is fully compatible with the Arduino UNO R3, so that you can easily stack it on the board for simple use.

Technical Details:

• Driving duty:1/240 Duty

• 2.8’’ (COG type)

• Viewing angle: 12:00 o’clock

• ILI9325 LCD driver or equivalent

• Logic voltage: 2.8V-3.3V

• Data interface: 80 system 8/16bit bus interface

• TFT LCD Shield: 8 bit bus mode

• Touchscreen

• White LED backlight, transistor connected so you can PWM dim the backlight.

• Power supply: DC 5V




  Display size	2.8" diagonal
  Number of Dots	W/RGB/H 240×3×320 DOT
  Active Area	W/H 43.2×57.6
  Pixel size	W/H 0.18×0.18mm
  LCD Type	TFT
  Driven IC	ILI9325
  Various color Display	65K ; 262K
  Backlight	White
  Screen	69.5mm x 50mm x 5mm

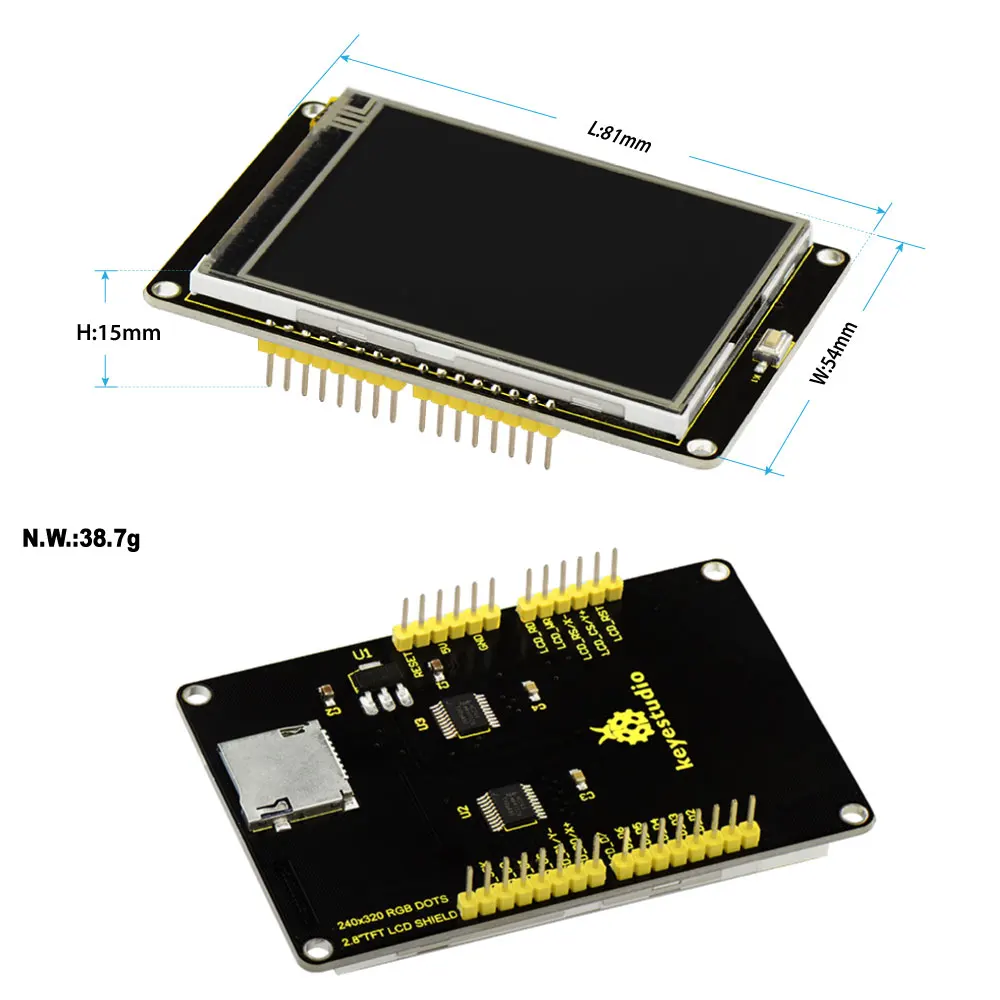

  Board Dimensions	81mm x 54mm x15mm
  Approx.Weight	38.7g

Resources：

Download libraries and code:

//fs.keyestudio.com/KS0257
