Play 100Мбит/с Пассивный беспроводной AP Bridge EU вилка блока питания адаптера. Переходники POE Switch через внутреннюю инъекцию Ethernet.

Play 100Мбит/с Пассивный беспроводной AP Bridge EU вилка блока питания адаптера. Переходники POE Switch через внутреннюю инъекцию Ethernet.

Brand NameNoneOriginMainland ChinaCertificationNONEAccessory TypeCharger AccessoriesMeasurement unitpiece/piecesEach pack1Origin:CN(Origin)Input:100-240V 50/60HZOutput:48V 0.5A, 24V 0.5AEfficiency:80% MinLine / Load Regulation:3% / 5%Ripple / Noise:200mV p-pTurn-On Delay:2 Seconds MaxRise Time:40 mS MaxProtections:Auto Recover Over-Voltage, Short Circuit, Over-Curre

Unavailable in

Description

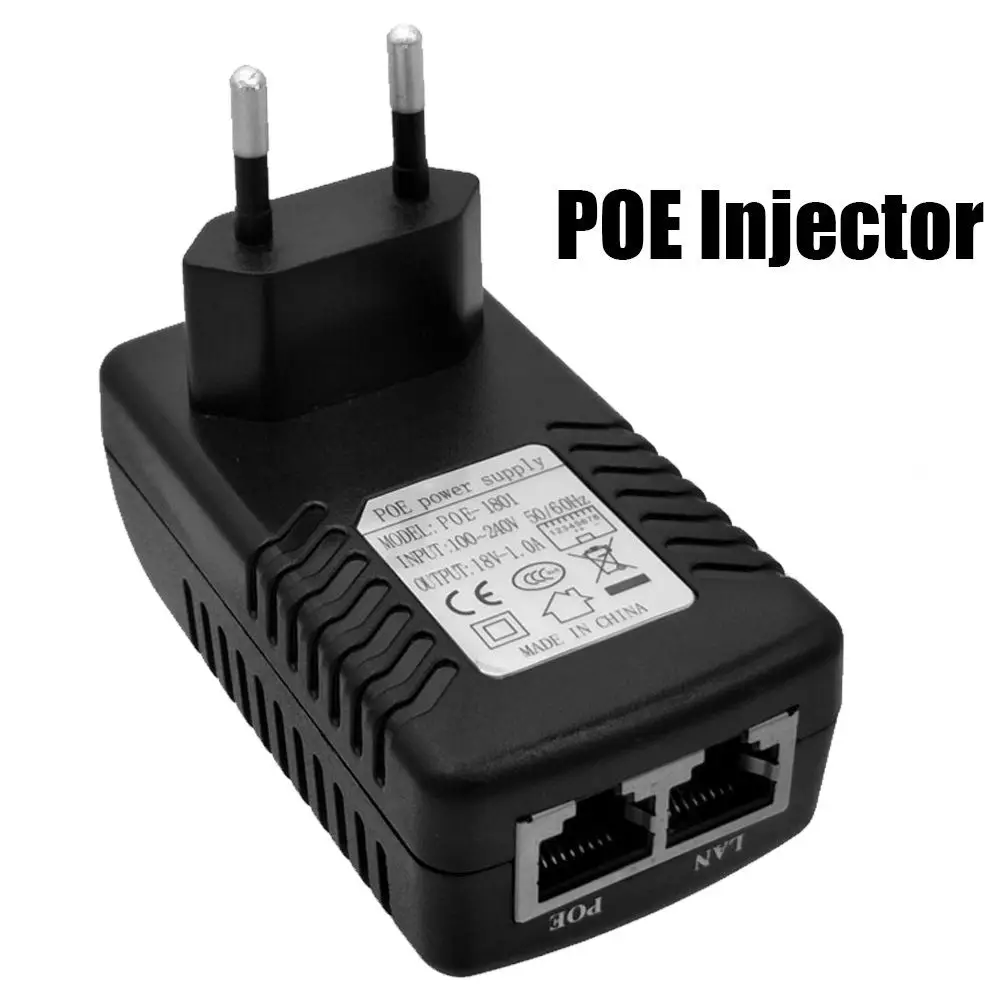

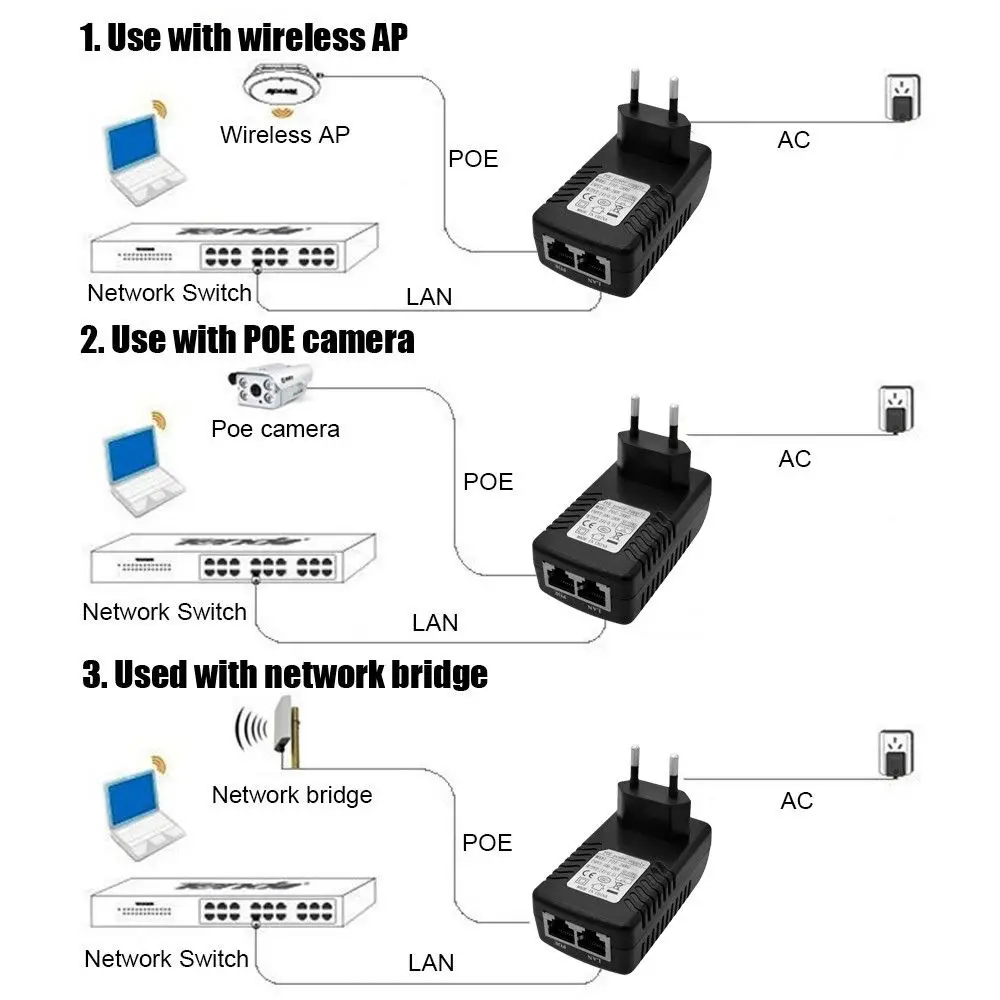

Input: 100-240V 50/60HZ Output: 48V 0.5A, 24V 0.5A Efficiency: 80% Min Line / Load Regulation: 3% / 5% Ripple / Noise: 200mV p-p Turn-On Delay: 2 Seconds Max Rise Time: 40 mS Max Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current Environmental Standards: RoHs Network Connector Type: RJ45 Shielded POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-) Reliable 24W passive POE output Notice: Our POE injector Power input :4&5(+), 7&8(-); It support 802.3af standard POE products. But please make sure it also have same power input. Some 802.3af product only support 1&2(+), 3&6(-) power input, not support :4&5(+), 7&8(-). It not work with such product. Introduction: This Non standard active PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost. This PoE injector not have auto detection function and directly supply power to the network devices by force as soon as you connect them, so you must be sure that powered devices conform to standard IEEE 802.3af in order to protect them from burning. Package include: 1pc Adapter
