Характеристики
2S 3A 4A 5A 8A 10A 13A 20A 7.4V 8.4V Литий-ионная защитная плата / BMS Стандартное балансирование включено.
История изменения цены
*Текущая стоимость 160.97 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 190.62 руб. | 200.28 руб. | 195 руб. |
| Aug-18-2025 | 189.29 руб. | 198.90 руб. | 193.5 руб. |
| Jul-18-2025 | 158.70 руб. | 166.85 руб. | 162 руб. |
| Jun-18-2025 | 186.30 руб. | 195.76 руб. | 190.5 руб. |
| May-18-2025 | 162.80 руб. | 170.94 руб. | 166 руб. |
| Apr-18-2025 | 182.57 руб. | 191.62 руб. | 186.5 руб. |
| Mar-18-2025 | 181.68 руб. | 190.63 руб. | 185.5 руб. |
| Feb-18-2025 | 179.83 руб. | 188.9 руб. | 183.5 руб. |
| Jan-18-2025 | 178.8 руб. | 187.24 руб. | 182.5 руб. |
Описание товара

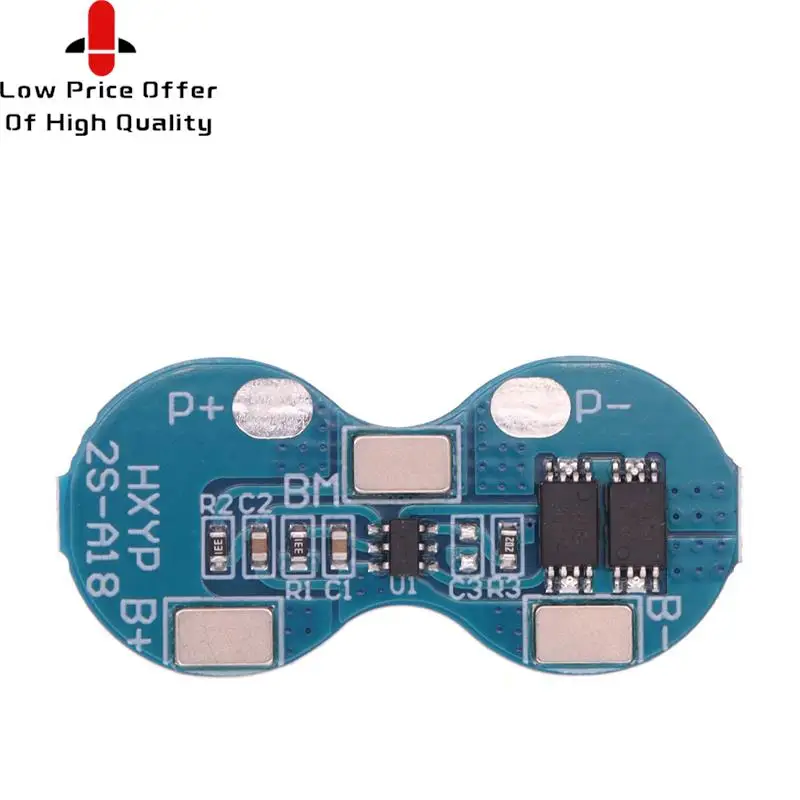

2S 3A Li-ion Lithium Battery 7.4v 8.4V 18650
Charger Protection Board bms pcm for li-ion lipo battery cell
pack
2 Series 18650 battery 7.4V
8.4V
Lithium battery protection
board
Features:
1)
high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage
device;
3) Built-in three-stage
over-current detection circuit (over-current 1, over-current 2, or load short
circuit);
4) MOS transistor can control
the battery charge and discharge;
5) low
standby current consumption.
Parameter:
Over charge
voltage:4.25-4.35v±0.05v
Over dishcarge
voltage: 2.3-3.0v±0.05v
Max continuous
current:3A
Max peak
current:5A
Working
temperature:-40---+50
Storage
Temperature:-40-- +80
Small current:less
than 3uA
Life cycle :more than
50000hours
Resistance:Less than
45m
Short cut protection
:Protectable,charge can repair
Properties of the lithium battery protection
board:
4.25-4.35 v plus or minus 0.05 v Size: 46.7 * 23 * 3.15mm over voltage range:
2.5-3.0 v plus or minus 0.05 v Maximum working current: 10 a working temperature:
- 40 - + 50 ° Maximum instantaneous current: 20 a storage
conditions: - 40 - + 80 ° Static current: less than 10uA effective life:
more than 50,000 hours Resistance: less than 300 m Ω short circuit
protection: to protect and restore must charge Charging voltage: 8.4 v-9v The protection board size and device
description; The protective plate size is 46.7 * 23 *
3.15mm Welding point description: · B + battery anode; · B - connect battery negative
terminal; · MMB connect battery 1 to battery
2; · P + charging/discharge correct poles (charging
end/discharge end sharing); · P - charging/discharge terminal negative
terminal (charging end/discharge end sharing).
Applicable
scope: Suitable for lithium batteries with nominal voltage of 3.7V and full
voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without
limitation on the dimensions) Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm
(Balancing) Charging voltage: 8.4V - 9.0V Continuous discharge current (upper
limit): 20A (If the cooling environment is not good, reduce the load current
use) Continuous charge current (upper limit): 10A Standard Edition: Suitable for
starting drills with currents up to 25A below 50W, or resistive loads below
168W. Balanced version: Suitable for starting currents below 25A and below 50W
power drills, or resistive loads below 168W, with balanced charging function.
Note 1: The successful start of power drill requires two 10C-20C power
batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! !
!); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel
plate!!!) Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When
connecting the battery for the first time, it needs to be charged before output.
Note 3: When the battery is charged, “430” resistance heating is a normal
phenomenon, indicating that the equalizing circuit is working; if the “430”
resistance is also heating in the state of not charging, please check whether
the wrong line is connected. For some customers with poor electronic foundation,
please explain: Do not mix good batteries and bad batteries together! The
capacity/internal resistance of 2 batteries should be as close as possible! (1
good battery + 1 bad battery = 2 battery use effect).
