Высокоточный интеллектуальный электронный двойной цифровой счетчик JK76 с контроллером шагового двигателя-энкодером.

Высокоточный интеллектуальный электронный двойной цифровой счетчик JK76 с контроллером шагового двигателя-энкодером.

modname=ckeditor

type1 : Add a full set of plastic control boxes
type2 : Meter + encoder + mount + meter wheel
type3: Meter + encoder + encoder mount
type4： Meter + encoder + meter wheel + warning light
type5:  Jk76 single meter
type6:   Add iron box control box full set
type7: Plus white control box
type8: White control box plus two-wheel encoder
type9:   JK96 rectangular + meter wheel
type 10 : New non-slip encoder fixing bracket
type11: Meter meter with spring bracket all aluminum wheel
type12:   Meter with spring bracket full polyurethane yellow wheel

type 13: Meter meter + slot encoder

type 14: White or blue iron box with spring bracket

type15: Meter meter + double wheel centimeter sensor
type16: Double wheel centimeter sensor + plastic control box
type17: Two-wheel centimeter sensor + metal control box

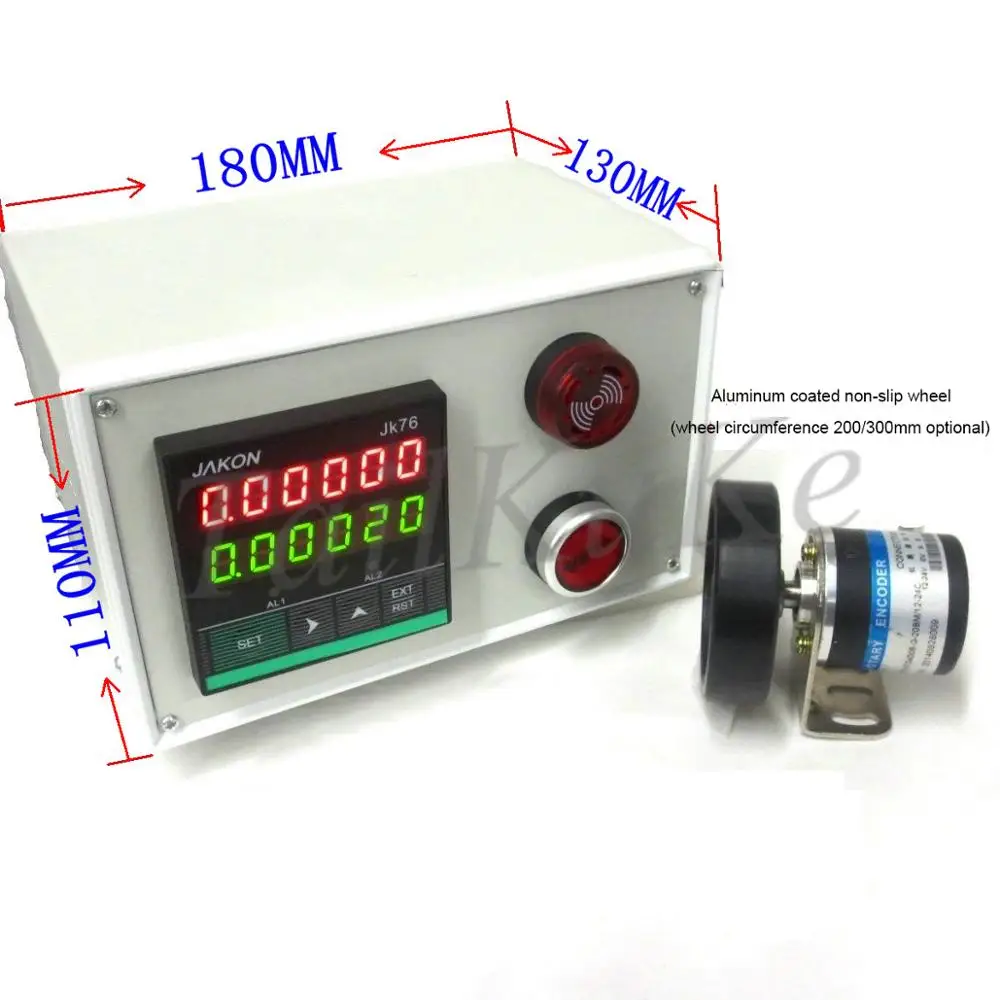

The following pictures are installed for customers'reference.！

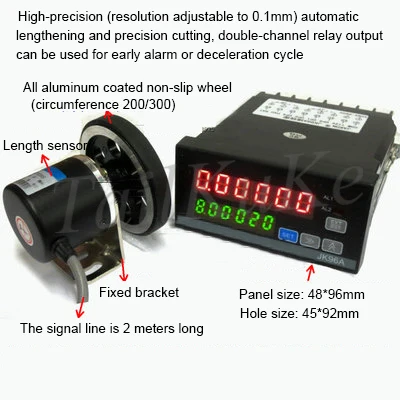

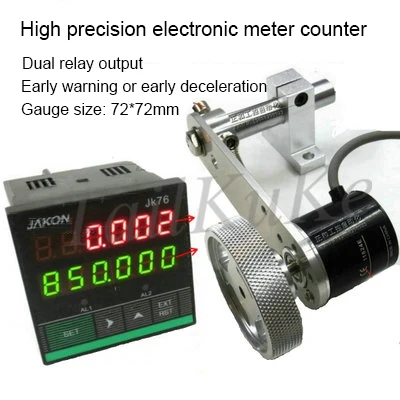

The system works as follows.：First put the encoder'saxisWith conveyor or conveyorcome togetherDo synchronous operation，After installation，Make a mark on the material，Look at encoderTurn around for a weekHow long has the material gone?（Or the circumference of the conveyor wheel，It depends on the facts.），Take this length again.DivideEncoderPulse number，EqualsOnePulse Length，AgainThis lengthSet it to the instrument.。such as：The length of the material traveled by the encoder after a week's rotation is100MM，The number of pulses in the encoder360P，The length of that pulse is：100/360=0.277MM，Analogy，Set this length to the meter again.Pvalue It's time to start working.。It's not very hard.，Can do automatic length calculation，Use of control system for cutting material, etc.！

Schematic diagram：

Matching Encoder：

（wrongOMRON）

pulse：100P ４００P ５００P　６００POptional，If other pulses are required　１０００P　,２０００P　２５００PIt costs extra

·External size：external diameterΦ40millimeter
·Axle diameter：Ф6/Number incision
·Pulse number：10P/R-2000P/R
·Voltage：5 - 12VOf.，5 - 24VType，12 - 24VType，5VOf.
·output signal：LetterAmutually，Bmutually，
·Output form：Collector open circuit output，Voltage output，Linear Driven Output
·Maximum response frequency：100KHzAlways
·Permissible maximum speed：6000rpm
·Axle load：radial50N/axial30N
·Protective structure：IP64（Drip proof，Oil proof）
·Use ambient temperature：-10-70℃

type Number：JK76 ：72*72Panel size orJK96 ：48*96Panel size
Display mode：LED
Counting range：0-999999
Input signal：Contact signal and pulse signal
control mode：Relay counting speed is optional、Four output modes are optional
Positive and Reversible Counting,Dual-stage transmission of adapted rotary encoder
Contact load：AC250V 3A DC24V 5A
Working power supply：AC220V、AC110V、AC24V、DC12V
Auxiliary Output Power Supply:12V
working temperature：0-+50degree（relative humidity45%-75%）
Anti-jamming ability：IEC801 3G
Panel size：72mm×72mm
Opening size：68mm×68mm
special spot：Counting speed is optional、Four output modes are optional
Positive and Reversible Counting,Dual-stage transmission of adapted rotary encoder

'
