Множественный монетоприемник 6 типов для электронных токенов EUR с механизмом выбора вставки в торговый автомат Mech Arcade Game Redemption.

Description

6 Type Multi Coin Acceptor Electronic EUR Tokens Insert Selector Mechanism Vending Machine Mech Arcade Game Redemption

Features:

Identify accuracy rate: 95%
Applying coins:
Diameter: Ф17mm-Ф29mm
Thickness: 1.8mm-3.0mm
Applicable to All kind of coins and foreign currencies.
Atmospheric pressure: 80Kpa-106Kpa
Operating voltage: DC12V ± 10%
Working current: 50mA
Moment maximum current: 350mA (less than 0.5S)
Humidity: ≤95%
Storing temperature: -20℃--+85℃
Operating temperature: -15℃--+60℃
Recognition speed: ≤0.6sec
Recognition: 99.5%
Canning material: PC plastic

Characteristic:
Suitable for a variety of coins
CPU process control, and accurate scoring
Special precision/normal stall, coins smoother
Pulse output available widths
Prevent phishing and other means of cheating,cheat alarm
Suitable of water vending machine, snack vending machine or game machine.

How to setting:

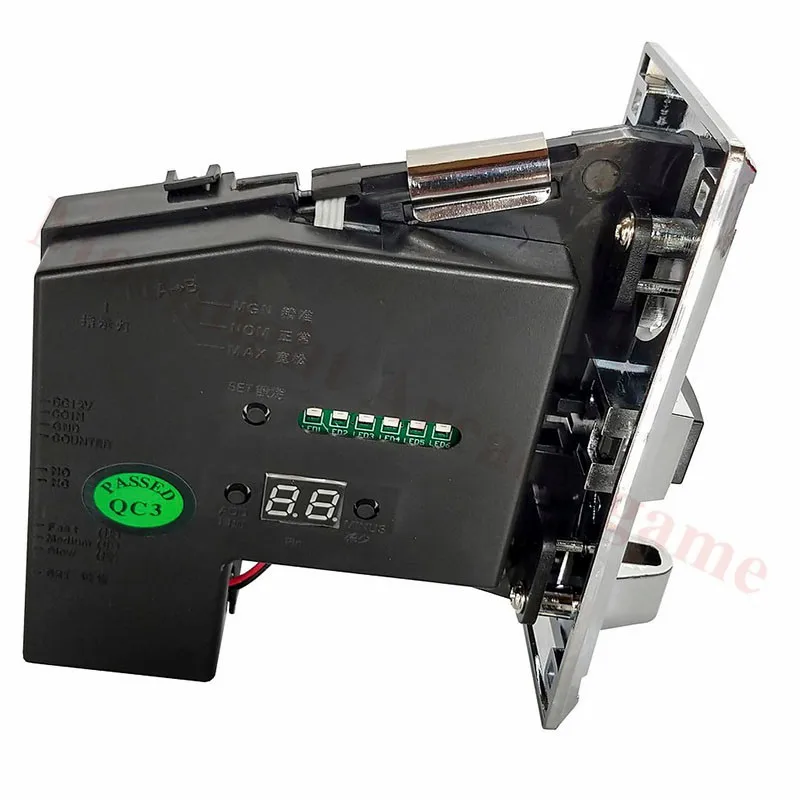

Plessing the accurating key(10) and broaden key (11) on the display panel at the same time for about 2 seconds, you will see the letter A on the dispaly panel,( When the file A/B turn to A) and at this time you can set up the numerical value of the interior.

1.Pressing the setting key(8),and then you will see the letter E,(choosing several currency system),after that you can press the accurating key or broaden key to increase or decrease the numerical value.After setting up, please press the setting key to confirm.

2.Appearing the letter H(the quantity of sampling  for various currency value)

3.Appearing the letter P(the numberial value for signal output lf various currency value)

4. Appearing the letter F(the precision of various currency value)

5. By parity of reasoning,setting is finished with your chosen currency.When the letter E is shown,please turn off the power and it will reopen again.

P.S.           E: Choosing several currency value.(1-6)

H: Quantity of sampling for various currenc value.(1-20pieces)

P: The numberial value for signal output of various currency value.(1-20)

F: The precision of various currency value.(1-20,the smaller the number is,the more accurate the precision is,(Suggesting number is 8)

Setting key :SET   Confirming key

Accuracy: Numberial value"+"                    A--------B  Can be set two at the same time

Broaden: Numberial value-'                          The currency value of different countries

Methods for setting coin samples:

1.  Pressing the setting key ,the letter A is shown. Then press the setting key again,the ldtter A1 is show,and the first LED light is always on, so at this moment, inputting 20 first sample coins by constant velocit.(When the setting numberial value of H1 is 20)

2. After inputting the coins, LED lights will flicker. When the letter A2 is shown and the first two LED lights are on. please inputting 20 second sample coins by constant velocit.(When the setting numberial value of H2 is 20)

3. After inputting the coins, LED lights will flicker. When the letter A3 isshown and the first three LED lights are on. please inputting 20 third sample coins by constant velocit.(When the setting numberial value of H3 is 20),By parity of reasoning,please finish the setting.After finishing setting all the needed numberial value coins,all the LED lights will flicker several times, it can be used normally.

Features:

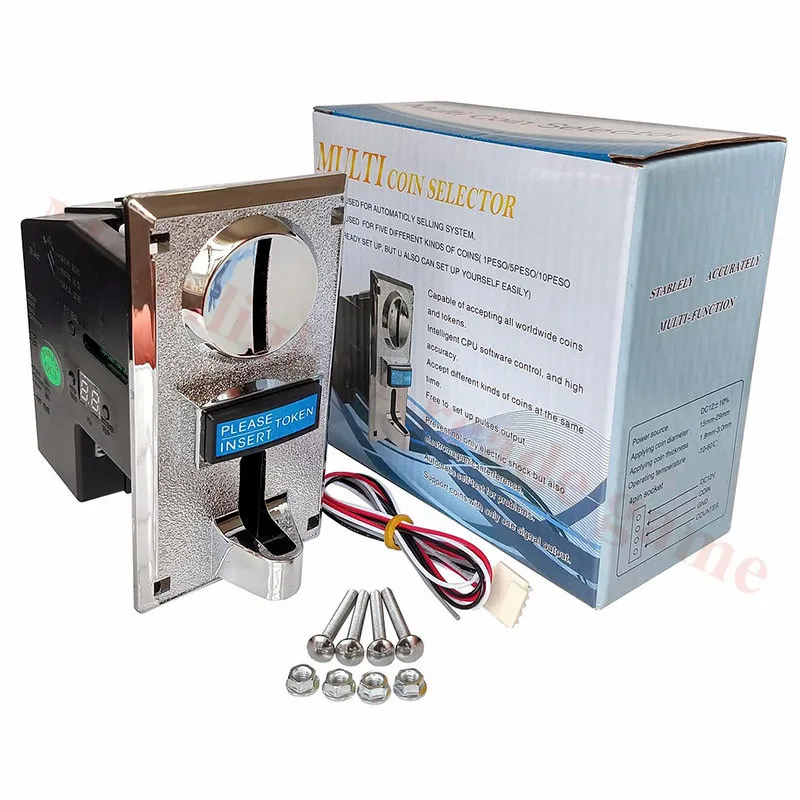

Package included:

1*616 Multi coin acceptor

1*Wire harness

4*Screws for coin acceptors
