Violin Microphone Wireless

About the product
1. High quality sound--- The condenser microphone core, so that the sound reproduction of the instrument can reach 99%.
2. Stable signal transmission --- The signal transmission distance is 164ft (50m). A total of 16 UHF channels can be selected, and 3-4 sets of microphone systems can be used at the same time without signal interference.

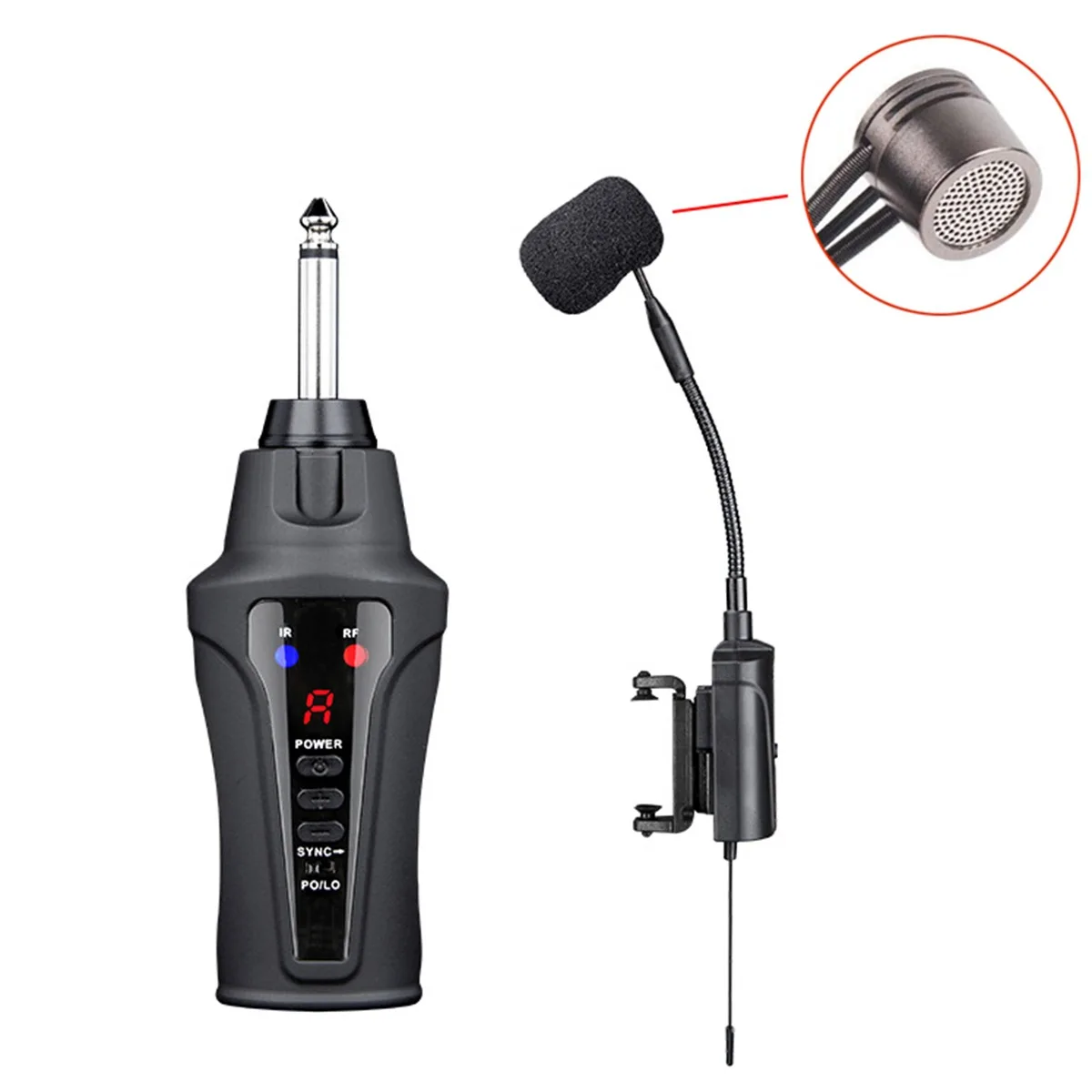

3. Easy to use ---The transmitter has a spring clip with silicone, which will not cause damage to the paint. Clamp the transmitter on the side of the violin, plug the receiver into the MIC interface of the speaker, and then turn it on and use it .
4. High-capacity lithium battery --- One divides into two charging cable to charge the receiver and transmitter at the same time, greatly reducing the charging time.The transmitter and receiver has built-in 750mAh battery, which can be recharged 2000 times, and can be used for 6 hours after 2 hours of charging.

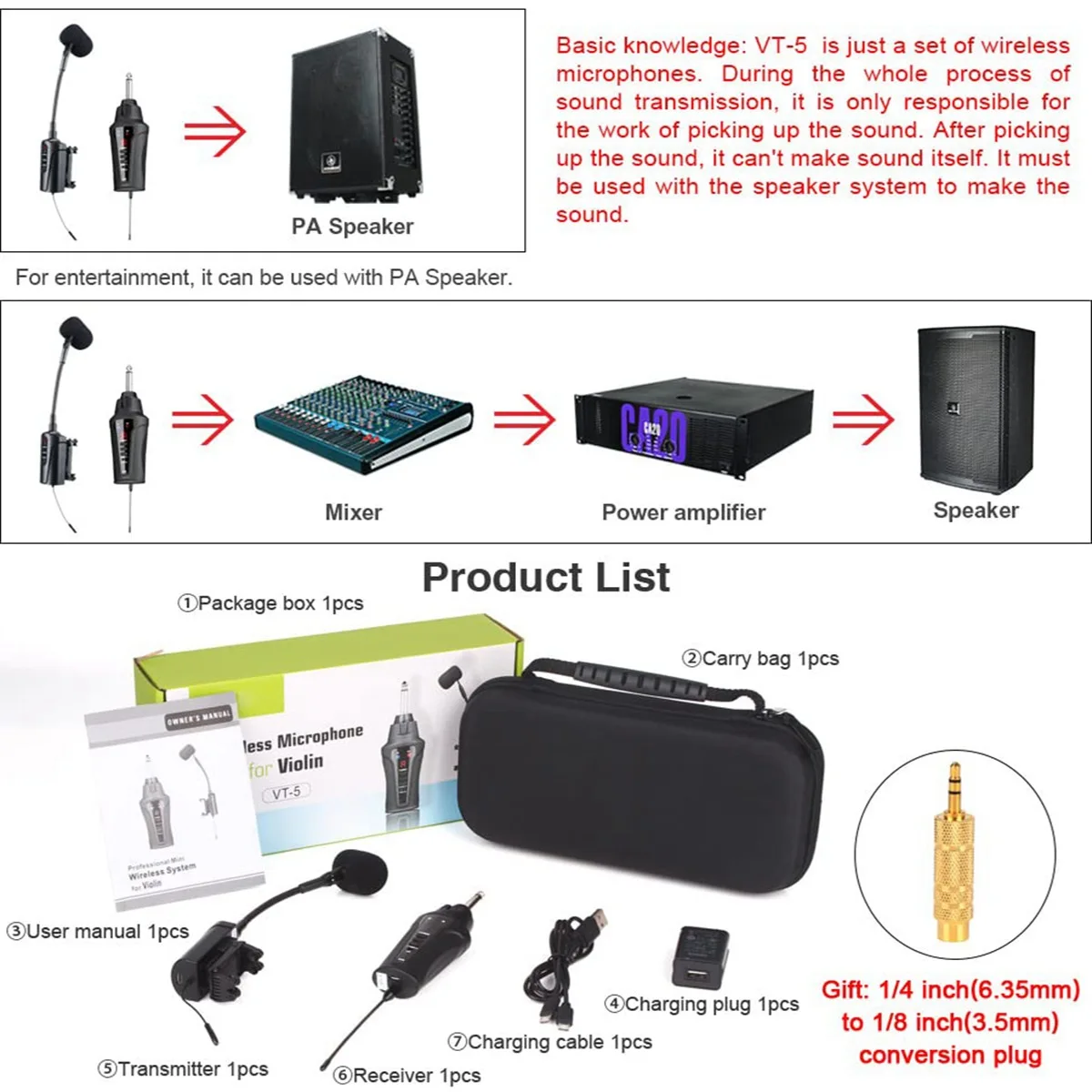

5. Widely Used --- This violin wireless microphone can be used in solo performance, accompaniment performance, personal entertainment, group performance. 1/4 inch plug (and give a 1/4 inch（6.35mm） to 1/8 inch（3.5mm） conversion plug) can be used to a variety of equipment, loudspeakers, computer audio, drawbar speakers, mixers, and so on.

Description:

Brand: ACEMIC

SPECIFICATION
UHF 600-952MHz frequency range (region dependant)
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16 selectable frequencies
Digital ID code, completely solves frequency interference
IR sync downloading the frequency from receiver
Lithium battery power supply
Portable plug-on receiver, plug in the mixer or active speaker directly
Up to 60m line-of-sight operating range
Suitable for violin stage performances, street performances, etc.

RECEIVER
Frequency range: 660-690MHz (region dependant)
Frequency: Pre-set 16 selectable channels
Modulation mode: pi/4 DQPSK
Latency: <6ms
Sampling: 48KHz
Frequency response: 60Hz - 15KHz ± 2dB
Total Harmonic Distortion: <0.8%(1KHz)
Signal/noise ratio: >92dB
Receiving sensitivity: -92dBm
Output: 6.35mm plug
Power supply: 3.7V Lithium battery
Power consumption: >6 hours continuosly using
Dimensions: 185*20*10mm

TRANSMITTER
Frequency range:660-690MHz (region dependant)
Modulation mode: pi/4 DQPSK
Transmitter power: 10mW
Sensitivity: -47 db±2dB
Frequency change: IR synch
Microphone type: Condenser
Microphone dimension: Φ14*5.0mm
Power supply: 3.7V lithium battery
Power consumption:>6 hours continuosly using
Dimension: 125*40*20mm

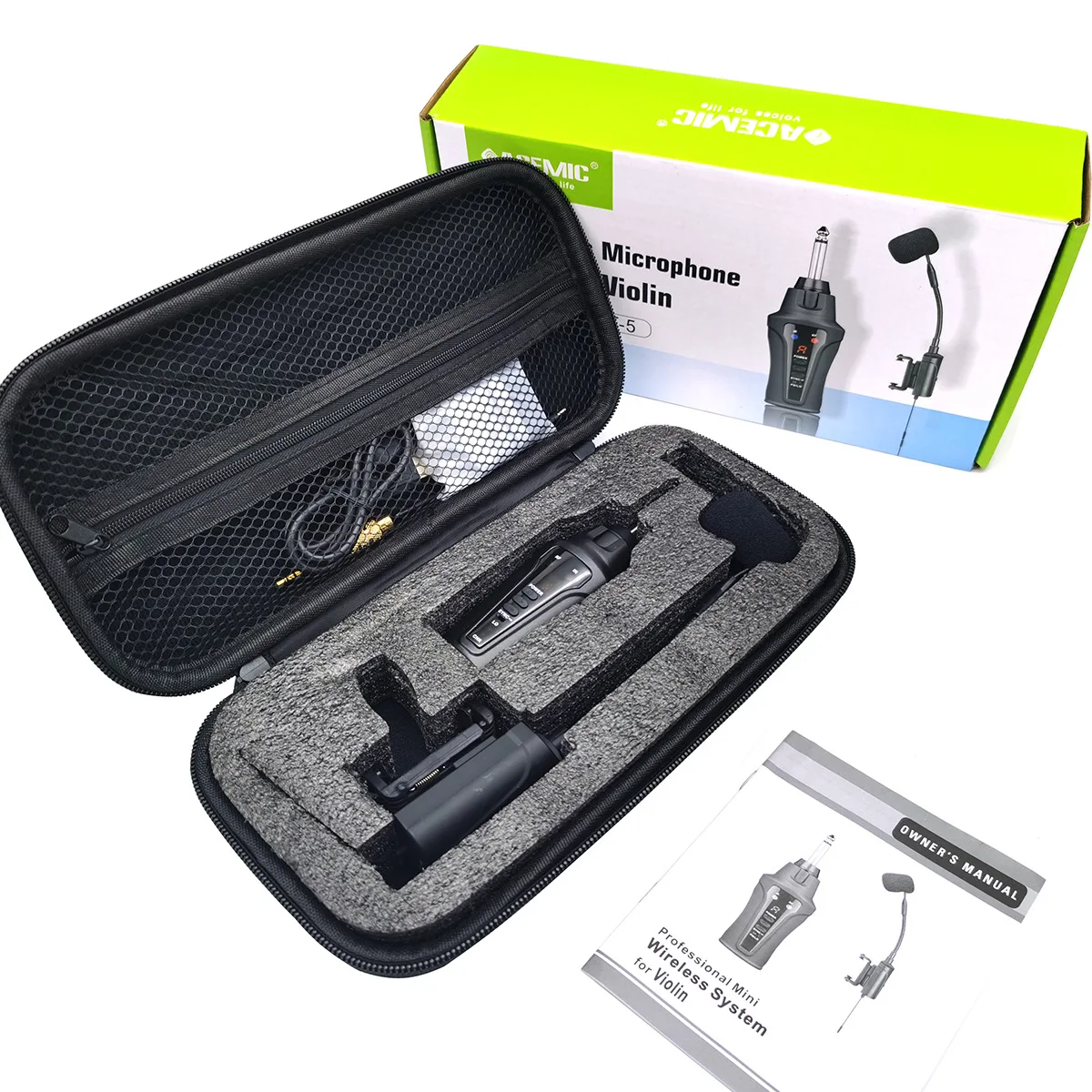

Package Include
1x Receiver
1x Transmitter
1x USB Charging Plug
1x Charging Cable
1x 6.35mm to 3.5mm Conversion plug
1x Carry Bag
1x User Manua
