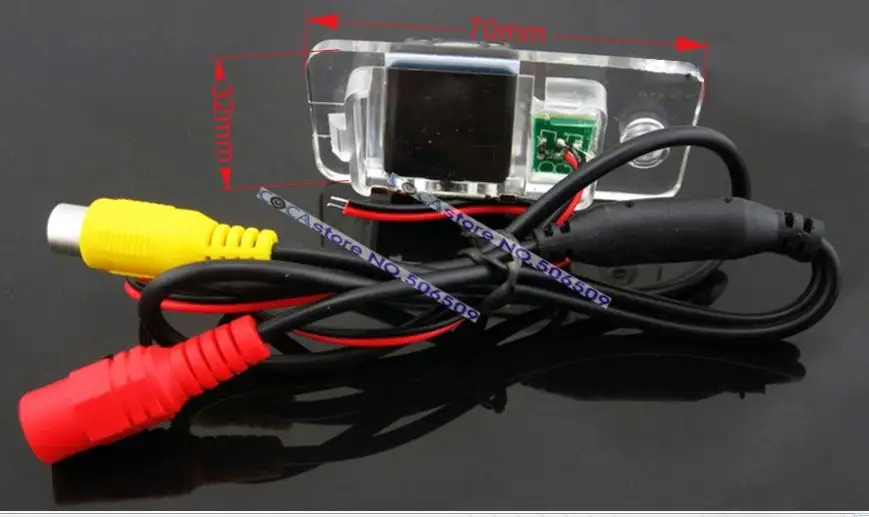

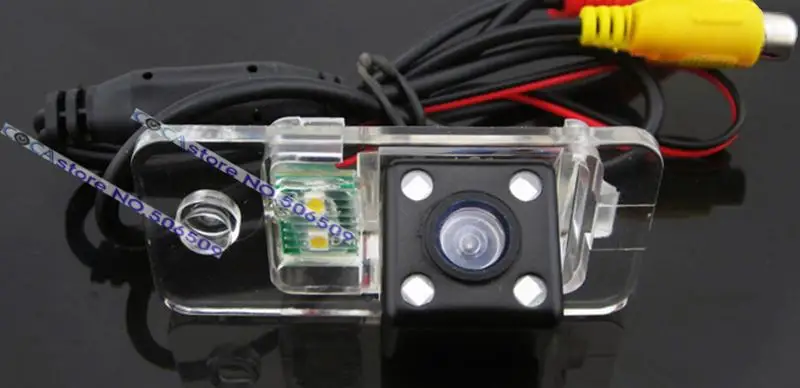

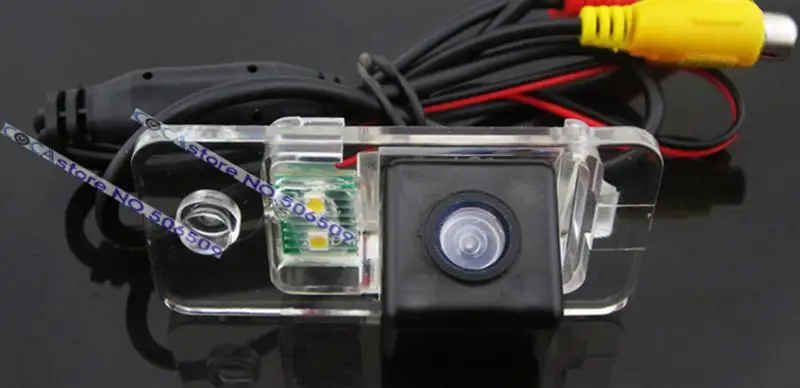

Car Reverse back parking Rear Camera for SONY CCD AUDI A8 A6 A4 A3 Q7 S5 S6 S8 RS4 RS6 Avant Quattro / Cabrio assist | Автомобили и

The cable as below (6m AV cable as default)

for wireless Transmitter receiver shown

 1,when you connect normal monitor 4.3 /5" ,DVD wihtout trigger line ,please select this

2,when you connect portable GPS for  ,the plug is 2.5mm

IMPORTANT NOTE: if you will connect 7" monitor or your DVd with reversing trigger line.please have to buy wireless receiver with trigger line,and please have to pay for $1 ,CLICK here or below picture to pay for 1USD

the blue line is ACC reversing the priority line

Connection:

In different countries, car models can be differentiated Please check your car license plate light cover or trunk hand size before you buy ,thanks.Maybe a few of the country's camera are different.

1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,

if your monitor is PAL system, it will be showed jitter , Black and white color.

Solution:

a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.

 Because there are many monitor with 2 system in market, it can set. But some old-type GPS can't set. So please choose the right system to fit the camera.

b. Please must check the right cable connection installation.

c. If above solutions still can't deal, please ask your local professional car staff for help.

2) The image occurred jitter, splash screen, unstable just because the

voltage is lower than we suggest.

Solution:

Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,

it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.

(6)our car have video and power cable,Can you use it when I buy this camera?
