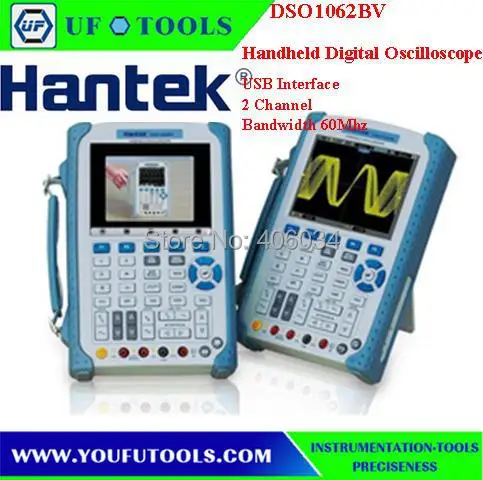

Hantek DSO1062BV 60MHz 25GSa/s Handheld Digital Oscilloscope 5.6" TFT Display



Specifications

1. Feature 60MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph. Built in Video Help and 2G SD flash memory. 1M Memory Depth. High Refresh Rate (2500 frames). Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform. Easy-to-use pop-up menu with built-in multi-language help system. 32 Automatic Measurements. Waveform Math: Add, Subtract, Multiply, and Divide. Store and recall over. Automatic cursor tracking measurements. XY Mode. Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems. Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames. Pass/Fail function compares a stored waveform to an unknown input. Average Mode for smoothing waveforms. Square Wave Output (2V, 1kHz) for probe adjustment. USB Host/Device 2.0 full-speed interface; support removeable disk;  LAN Option, easy to control by PC or long-distance. Dimensions (mm): 240(L)x165(W)x50(H), be carried easily..

2. Hardware Specificatons

Model	DSO1062BV
Bandwidth	60MHz
Channel	2
Real-Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Record Length	1M
Rish time	≤5.8ns
Timebase Accuracy	±50ppm
Time Base Range	4ns/div-40s/div
Video Help	Yes
SD Card	4GB
Input Impandance	1MΩ
VOLTS/DIV Range	2mV/div- 5V/div
A/D Converter	8bit
Position Range	±50V(5V/div), ±40V(2V/div- 500mV/div),  ±2V(200mV/div- 50mV/div), ±400mV(20mV/div- 2mV/div)
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2
Math	+, -, x, ÷, FFT, Invert
Cursor Measurement	Voltage difference between cursors: V; Time difference between cursors: T; Reciprocal of T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
DMM Max. Resolution	6,000 Counts
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC: 600V, DC: 800V
Max. Input Current	AC:10A , DC: 10A
Max. Input Impandance	10MΩ
Display	5.6"TFT 16K Color Display, 640*480 dots
Size	245mm x 163mm x 52mm
Weight	1.3KG(Without Package)
Standard Probe	PP80x2
