Description

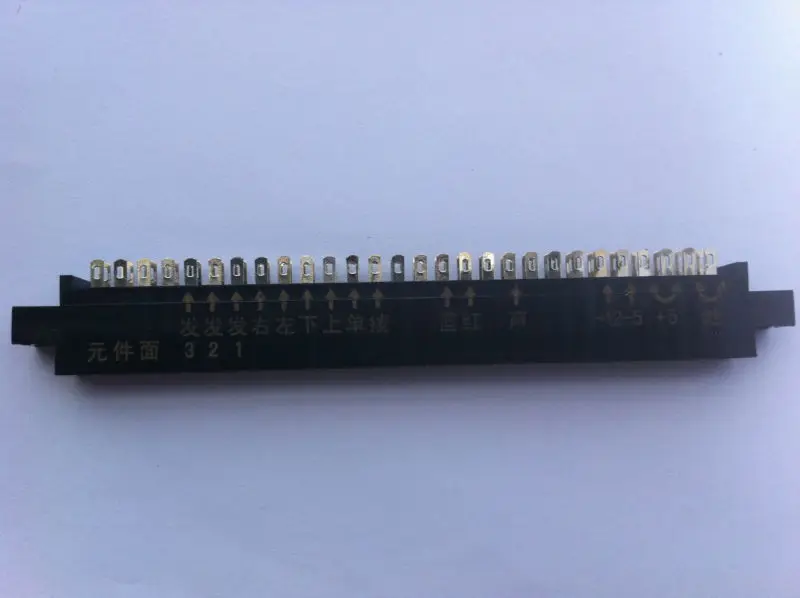

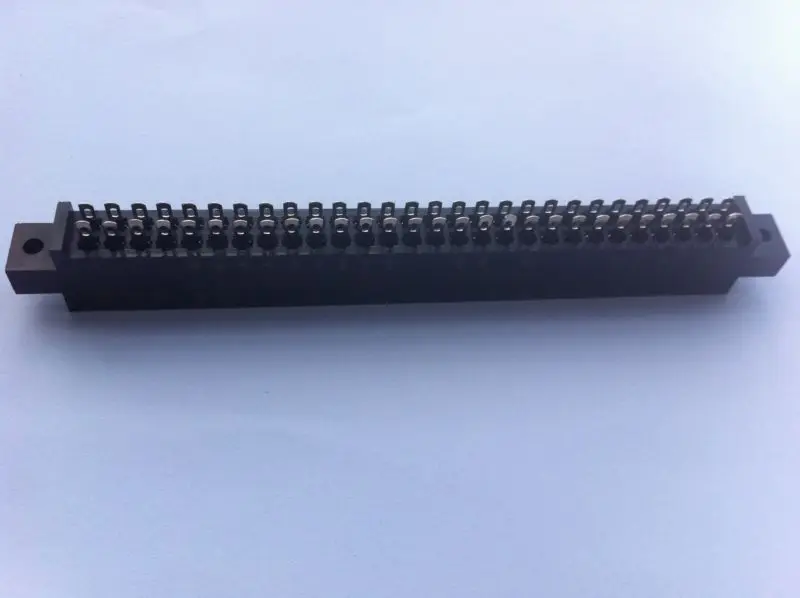

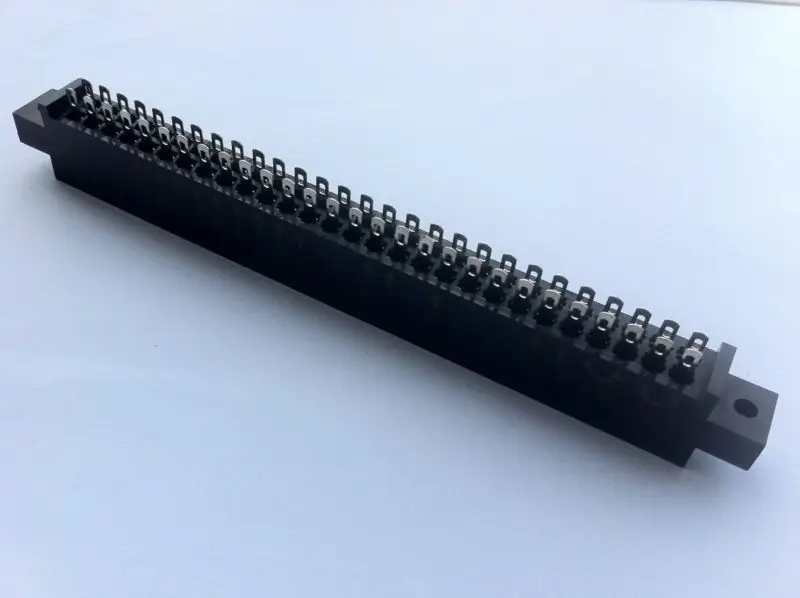

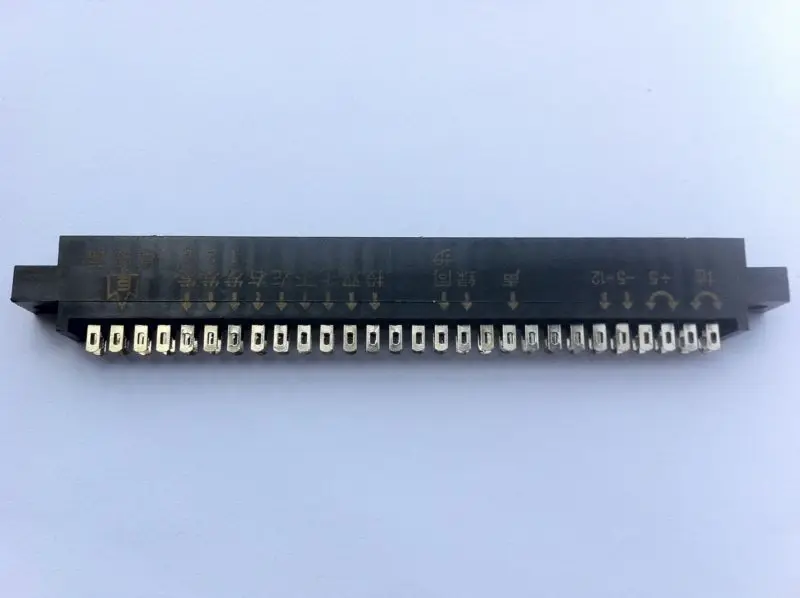

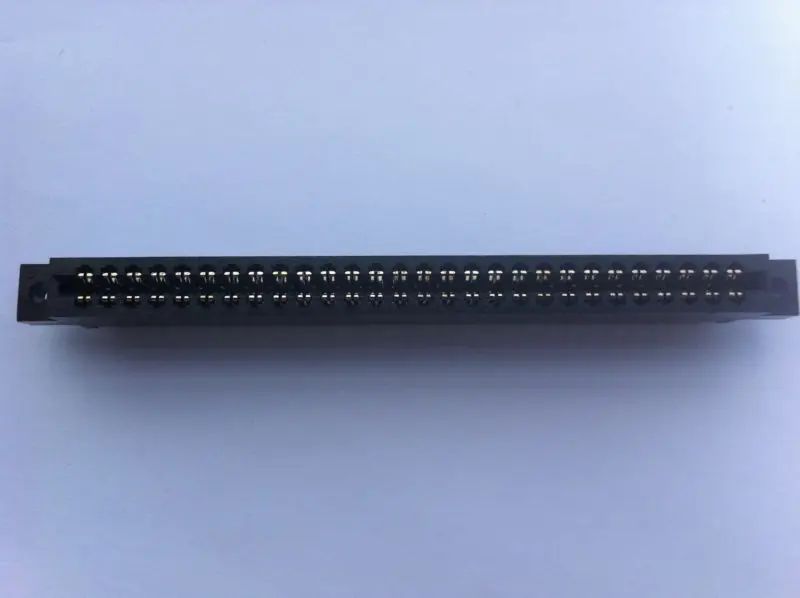

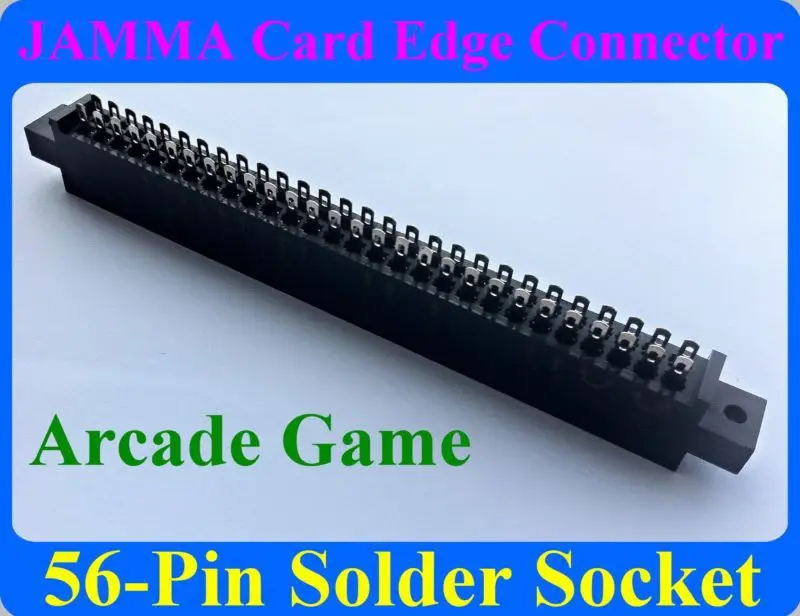

This is Used for JAMMA, Early Capcom games and others 56-pin solder eyelet card edge connector.

28 Pin Edge Connector made of strong fiberglass reinforced polyester - a strong and durable material that will not flex or bend. An edge connector is the portion of a printed circuit board (PCB) consisting of traces leading to the edge of the board that are intended to plug into a matching socket.

28 pins per side, 56 pins in total. It is very easy to replace old and worn connectors - just solder the wires straight on the new edge connector.

Features

(1)This is 28 pins per side which is 56 pins in total.

(2)For people that call a JAMMA card edge connector a 56 pin pin edge connector.

(3)Replace your old and worn JAMMA connector with this brand connector.

(4)Easy to replace, just solder the wires straight on from you old JAMMA connector to this one.

Sepcification

Structure

JAMMA PINOUT CHART

Solder Side Alpha Characters 28 Pins A-Z, a-f

The solder surface is the base surface of the PCB. It is the surface anywhere the soldered connections of lesser are bare to view. Few, if any, lesser are situated on the solder side. The solder surface pinout is recognized by means of alpha characters.

Parts Side Numeric Characters 28 Pins 1-28

The lesser surface is the top surface of the PCB. It is the surface anywhere the lesser are located. The lesser surface pinout is recognized by means of numeric characters.

Usually, the PCB is printed and the edge connector is embossed by means of the alpha and numeric characters.

GROUND A, 1

GROUND B, 2

+5VDC C, 3

+5VDC D, 4

-5VDC E, 5

+12VDC F, 6

KEY SLOT H, 7

COIN COUNTER #2 J

COIN COUNTER #1 8

LOCK OUT COIL #2 K

LOCK OUT COIL #1 9

SPEAKER (-) L

SPEAKER (+) 10

N/C M

N/C 11

VIDEO GREEN N

VIDEO RED 12

VIDEO SYNC P

VIDEO BLUE 13

SERVICE SWITCH R

If you base what you do on inaccurate information, you might be unpleasantly surprised by the consequences. Make sure you get the whole Understanding the JAMMA PCB and Edge Connector Pinout story from informed sources.

VIDEO GROUND 14

TILT (SLAM) SWITCH S

TEST SWITCH 15

COIN SWITCH #2 T

COIN SWITCH #1 16

PLAYER 2 START U

PLAYER 1 START 17

PLAYER 2 UP V

PLAYER 1 UP 18

PLAYER 2 DOWN W

PLAYER 1 DOWN 19

PLAYER 2 LEFT X

PLAYER 1 LEFT 20

PLAYER 2 RIGHT Y

PLAYER 1 RIGHT 21

PLAYER 2 BUTTON 1 Z

PLAYER 1 BUTTON 1 22

PLAYER 2 BUTTON 2 a

PLAYER 1 BUTTON 2 23

PLAYER 2 BUTTON 3 b

PLAYER 1 BUTTON 3 24

N/C c

N/C 25

N/C d

N/C 26

GROUND e

GROUND 27

GROUND -f

GROUND 28

Understanding the JAMMA Pinout Chart:

N/C No connection.

Key Slot A keyed slot construct aligns by means of a leave-out in the pinout part of the PCB.

This security characteristic is ,advertising to promise so as to the Power Section seats at the right end of the pinout section. If the edge connector is reversed, and the Power Section is seated at the conflicting or wrong end, irreparable damaged can occur to the PCB.

If the key has persons name removed as of the edge connector, after that mark the connector as to the Parts Side to assist promise right seating.

Power Section Pins A-F, 1-6, e, f, 27, 28

Video Section Pins N, P, 13-15

Coin Section Pins J, K, T, 8, 9, 16

Controller (Joystick) Section Pins V-Y, 18-21

Pushbutton Switch Section Pins Z-B, 22-24

Knowing enough about Understanding the JAMMA PCB and Edge Connector Pinout to make solid, informed choices cuts down on the fear factor. If you apply what youve just learned about Understanding the JAMMA PCB and Edge Connector Pinout, you should have nothing to worry about.
