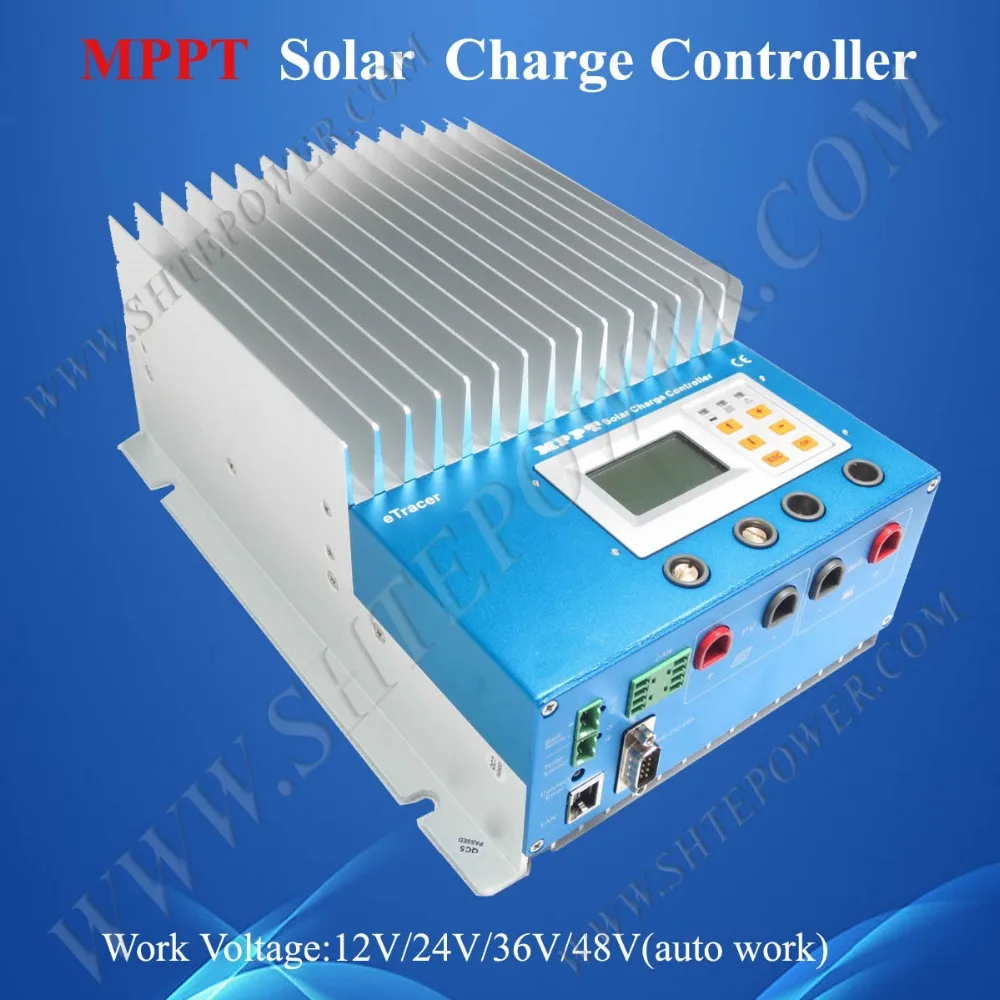

solar charger controller 30a mppt 12v/24v/36v/48v

Features:

1. 12V/24V/36V/48V auto work

2. Excellent EMC design

3. Thermal design and nature air cooling

4. The first tracking to the maximum power point of solar modules less than 15 seconds, tracking efficiency Max. 99%

5. Multiphase synchronous rectification technology ensures peak conversion efficiency up to 98% 6. Multiphase power decentralized control make small power charging high effective, and improve the generated energy

7. High speed and performance of the double processors architecture, improve the response speed and optimize the performance of the system

8. Multiphase control technology, optimizes charging current smoothness, reduces ripple, and improves the system generating efficiency

 9. Humanized browser interface

10.128*64 dot-matrix LCD intuitively displays data and state, 6 buttons combinations for easy operation

11. View up to 450 days data logging by connecting to Ethernet.

12. Update controller software by connecting to PC

13. RS232, CAN BUS and Ethernet 3 kinds of communication way to meet different occasions of demand

14. Sealed, Gel and Flooded battery option

15. Three stages of optimizing charging control

16. Protection: over heat, over charging, PV short circuit and PV (battery) revered

Specifications:

 Environmental

1 –LCD: Display interface, 128x64 dot-matrixes

2 –Buttons: Browse or modify all parameters.

3 – Battery Indicator: An LED indicator shows battery status.

4 – Charging Indicator: An LED indicator shows charging or not.

5 – Faults Indicator: An LED indicator shows controller faults.

6 –Terminal: Refer to Figure 2-2

7 – Serial RS-232 Port (DB9): Monitor controller by PC orupdate controller software.

8 – Ethernet Port (RJ45): Connect Ethernet, monitor controller remotely by network.

9 – Solar polarity reversed Indicator

An LED indicator shows solar modules positive and negative reversed.

10 – Remote Temperature Sensor Port (MC1.5-3.81-2L)

Connect RTS, Measure battery temperature to make temperature compensation.

11 – Remote Battery Voltage Sensor Port (MC1.5-3.81-2L)

Connect RBVS, measure battery voltage accurately.

12 – CAN BUS Port (MC1.5-3.81-4L)

Communicate with other CAN BUS devices made by appointed maufacture.

Parameter for 12V system

Multiplied 2,3 and 4 respectively for 24V ,36V and 48V system

\
