Intelligent security alarm system Crystal Shield Series immobilizer anti-theft products | Безопасность и защита

GSM dual-networkAlarmFeatures:

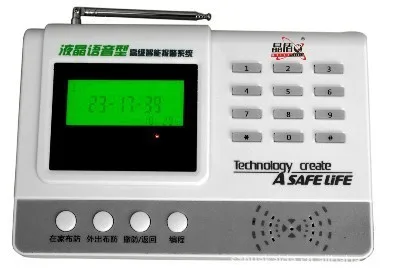

Large-screen LCD display prompts the whole Chinese , dual-networkAlarmFunction, when someone illegally entered the fortified area , the host will immediately via GSM mobile telephone network or PSTN landline network. Achieve telephone dialing alarm or SMS alarm . Support multiple wireless / wired output control port , wired detector input port to achieve smart home control and alarm system linked to form a powerful smart home security system .

The series also supports the doorbell function , you can use this function when the user at home . When a host is set at home mode, the host receives a trigger signal from the detector only ring the door bell ( ding dong ring ) , not the police , such as coupled with wireless doorbell button when the doorbell . This series of products created when using wireless security coding technology , a super anti-jamming capability. Large-screen LCD display , the appearance of high-end fashion .

Features:

Chinese large-screen LCD display ;

GSM / PSTN dual-network intelligent switching , dial-up alarm or SMS alarm ;

GSM dual-band 900M / 1800MHZ, optional quad-band GSM 850/900/1800 / 1900MHZ;

Host site monitoring , intercom functions: Alarm with field personnel who can talk , minus the words ;

Optional multi-lingual prompt ;

Each zone individually set arm and disarm ;

Optional 10 seconds self- employment ( optional ) ;

Three kinds of arming modes at home / go / 24 hours zone ;

Host built doorbell function ;

Intelligent detection of telephone lines , GSM network failure in the host screen display ;

40 wireless detectors can be configured to be expanded to 160 , and four remote control ;

Support a way to control and two -way cable outputs wired detector input control ,

Support SMS alerts (mains power, electricity recovery ) and SMS inquiry system status ;

You can set 5 groups alarm telephone ;

Each group when the phone sends an SMS alarm can be set to alarm or not to send alarm messages ;

When the built-in flash memory card power down the set information is not lost ;

You can set the alarm when the number of cycles to dial the number ;

Host built 105 db siren , external 120 db siren wired or wireless ;

You can set the alarm siren sound or no sound , and when long ;

Telephone remote control can be set to the number of rings : ring 1 to 9 times or prohibit telephone remote control function ;

Alarms can be set to host immediate or delayed alarm ;

With a "black box" warning data recording function ;

Technical parameters:

Power supply : DC 12V-1500mA

Backup lithium battery : 3.7V-1000mAH

Current : Static 30mA

Dynamic 500mA

Sound intensity : Built 105dB siren

External alarm 120dB

Doorbell 90dB

Built- TX transmitter power : -10dB

Built- long recording time : 10 seconds

GSM Frequency : 850 / 900MHz or 1800 / 1900MHz or quad-band GSM systems in different countries depending on availability

Wireless receiving frequency : 315 / 433.92Mz ( error 0.5Mz)

Wireless detectors and remote control sending / receiving distance :> 150M ( open area without interference )

External load current : 300mA ( maximum single channel current )

Working temperature : -10 ~ 60C

Operating humidity : < 80%

Storage temperature : -40C- + 70C

AlarmScope:

GSM dial burglar alarm system is suitable for the important parts of villas, houses , shops, corporate finance , factory workshops , small supermarkets , car theft , hospitals schools, financial establishments , such as unattended job securityAlarm.
