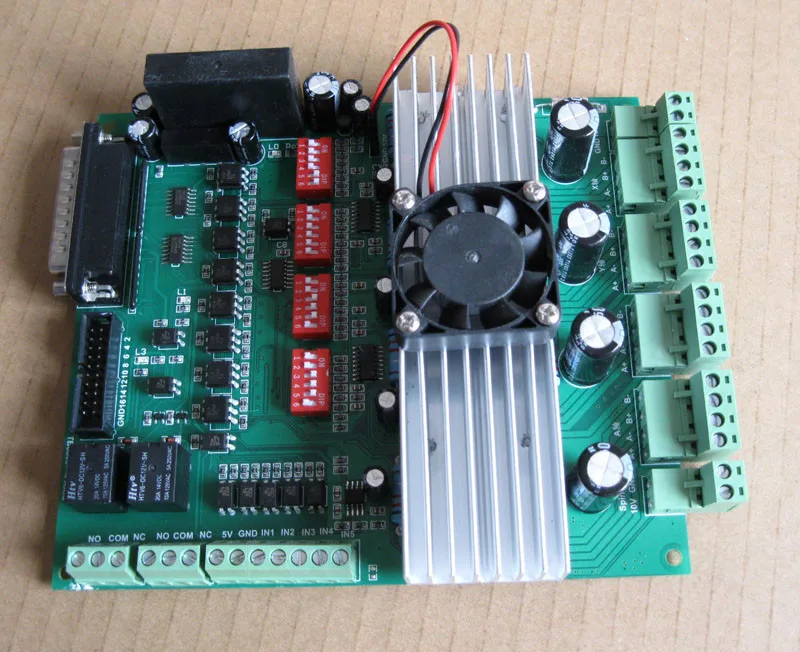

TB6600 4 Axis Stepper Motor Drive Board Controller for CNC Router 5A | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.37 руб. | 0.40 руб. | 0 руб. |
| Feb-19-2026 | 0.31 руб. | 0.69 руб. | 0 руб. |
| Jan-19-2026 | 0.9 руб. | 0.93 руб. | 0 руб. |
| Dec-19-2025 | 0.49 руб. | 0.38 руб. | 0 руб. |
| Nov-19-2025 | 0.12 руб. | 0.81 руб. | 0 руб. |
| Oct-19-2025 | 0.53 руб. | 0.92 руб. | 0 руб. |
| Sep-19-2025 | 0.47 руб. | 0.91 руб. | 0 руб. |
| Aug-19-2025 | 0.70 руб. | 0.25 руб. | 0 руб. |
| Jul-19-2025 | 0.2 руб. | 0.26 руб. | 0 руб. |
Описание товара
Description:
- Supports mach2,mach3(mach3 support Win7 system),KCAM4 etc …
- Can drive four channels 4.5A stepper motors, input voltage up to 24V - 40V.
- Resolution 1, 1/2, 1/4, 1/8, 1/16 micro stepping output.
- 100% Full DC-DC optical isolation to protect the user's computer and equipment.
- The Max. output is +/-4.5A,40v. The Max current is 5A
- Low output resistance. The Source is 0.5Ω, the receiving end is 0.4Ω
- Can set up 0.5A /1A /1.8A /2.5A /3.3A/ 4A /4.5A current to suitable for different motors
- Increase the simulation 0-10V output, combined with MACH3 software to control the drive speed.
- Add a select group of relay outputs
- Increase the 20-pin multi-connector, receiving variety of signal input control
- Automatic idle-current reduction.
Electrical Properties (ambient temperature Tj = 25C pm):
| Input Voltage | 24V-40VDC, Recommend DC24V or DC36V |
| Output Current | Peak Current 5A/phase, 8 Options available |
| Driving Mode | Constant current PWM Control |
| Exciting Mode | 1, 1/2, 1/4, 1/8, 1/16 |
Current Setting:
| Current | 0.4A | 1.6A | 2.6A | 3.2A | 3.8A | 4.0A | 4.3A | 4.5A |
| S1 | ON | OFF | ON | OFF | ON | OFF | ON | OFF |
| S2 | ON | ON | OFF | OFF | ON | ON | OFF | OFF |
| S3 | ON | ON | ON | ON | OFF | OFF | OFF | OFF |
Subdivision Setting:
| Subdivision | NC | 1 | 1/2 | 1/2 | 1/4 | 1/8 | 1/16 | NC |
| S4 | OFF | OFF | OFF | OFF | ON | ON | ON | ON |
| S5 | OFF | OFF | ON | ON | OFF | OFF | ON | ON |
| S6 | OFF | ON | OFF | ON | OFF | ON | OFF | ON |
Warning:
- Make sure the power supply voltage dose not exceed the drive’s input range. Double check the connections and make sure the power lead polarity is correct.
- Do not set high current to small stepper motor. It is possible that the motor will be damaged.
- Disconnect the motor from the load if you are not sure the move direction. Adjust the axis in the middle before trying to run the motor.
- Never disconnect the motor lead when the power source is energized.
Package Included:
1 x 4 Axis TB6600 CNC Stepper Motor Driver Controller Board For CNC Router Milling
