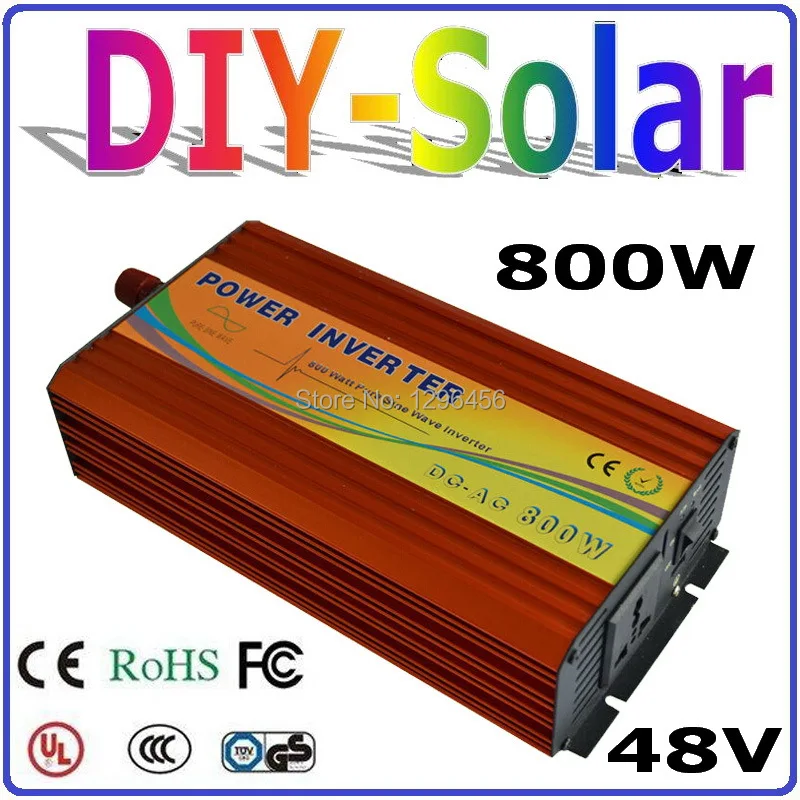

New Design 800W Inverter 48V DC to AC 110V or 220V with 1600W Surge Power, 800W Pure Sine Wave Power Inverter

Product Brief Introductions

It adopts intelligent IC control of this series inverter ,also have perfect defensive function.( Overload protection,  over current protection, high temperature protection ,short circuit protection , the battery reverse connect protection, battery over voltage and under voltage protection are included. At the same time with built fuses). It also with working indicator and fault alarm functions. It takes import high quality double sizes PCB circuit and components to produce high quality product with high-performances.

This inverter with pure sine wave output so that can be applied to any type AC loads. With beautiful shape and also can be taken easily because of the small size.

Please kindly check product features as below:

1. Unique front and back double soft start technology;

2. Core of CUP and the pulse width control technology of SPWM;

3. Special constant power technology;

4. Technology Of prevent the reverse Diode;

5. With USB charge interface;

6. Quarantine of front and back level;

7. Perfect powerful fault protection function (including the overload protection, over current protection, high temperature protection, short circuit protection, the battery reverse connect protection, and it is also equipped with inbuilt fuse)

8. Battery protective function (Battery over-voltage under-voltage protection, overvoltage, under voltage recovery and related function)

9. Shock-protect function;

10. AC pure sine wave output has no effect on the use lifetime of equipment;

11. This inverter with Aluminum shell, surface of sandblasting anodic oxidation treatment, high hardness and prefect shape.

Technical Parameters Table

Usage

Connection Steps

1. Check if all the components are all included. Such as, enclose bags and use manual. At the same time inspect whether battery voltage is accordance with the rated input voltage.

Enough current should be offered from the input battery voltage. Details calculate is that the output power /input voltage/0.85=output current;

For example: load of 1000w, the output voltage is 12v, so the input current =1000/12/0.85=98 (Ampere);

Appropriate connection wires should be chosen according to the current rule that within 1 meter 8A/mm. 12mm connect wires should be regarded as the 1000w inverter with input voltage 12v. Others must also match with each other.

2. The GND wire of inverter should be connected to ground firstly before using. Do not regarded zero wire as the ground connect line.

3. Close the power of inverter, ie, press down the button "OFF".

4. Confirm the positive and negative polarity of battery, high voltage is the positive and low one is negative.

5.  Pull out the inverter input terminal, red means positive polarity (+) and black refers to negative polarity (-).

6. Choosing the suitable black area line according to the first step and then connect to black wire of inverter input terminal and pull tight at last.

7. Choosing the suitable red area line according to the first step and then connect to red wire of inverter input terminal and pull tight at last.

8. Connect the black wire on the other side of the battery negative pole and ensure connection is firm.

9. Connect the red wire on the other side of the battery positive pole and make sure connection is firm.

10. Check and make sure all the connection are in right order and then the inverter power, just press the button "ON" is ok.

11.  Inverter will get stable alternate current within 5 seconds after green led of inverter turn on.

12. The power of electronic equipment which connected to the AC socket of inverter shouldn’t be exceed rated power of inverter.

13. Press the button "ON" and then the power switch of load will be opened.

Connection Diagram

Notice

1.  The inverter only can be connected the load with the power which less than rated power;

   Two or three times power of inverter should be chosen for some electronic equipment with high start current. Refrigerators, freezers, color TV, water pump, motor, air conditioning, air compressor, computer and similar appliances are included.

2.  Battery voltage must match with the input voltage of inverter, otherwise, it will damage the inverter with high voltage.

3.  Please avoid too long input wire because of the high current from the input current of inverter.

4. Power of inverter should be closed firstly and load power also need to be reduced, if inverter is opened and output too  large made inverter protection opened. Turn on inverter after 10 to 15 seconds. Inverter may be damaged permanently if overload start it frequently.

5. It is forbidden to connect inverter with electricity grid, otherwise, inverter may be damaged permanently.

6. Do not using your wet hand touch the inverter and operate it in moist environment .It should be used in the cool and ventilated environment.

Do not block the air outlet and inlet of inverter cooling fans, keep it in a good ventilation environment.

7.  Inverter should be closed if it's not in working status. Disconnect the inverter and battery if long time using or go outside for long time.

8. Output voltage and frequency of inverter should be match with the electric equipment .Otherwise it will damage the electric equipment.

9. If used in the place where elevation above 1000 meters, increase 1000 meters above sea level per time, the output power should be decrease 5%-10%.
