Характеристики
Temperature Humidity Meter Two Channel USB Interface LCD with Analysis Software DGraphTM Dew Point Hygro-Thermometer Data Logger |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-03-2026 | 0.29 руб. | 0.20 руб. | 0 руб. |
| Mar-03-2026 | 0.48 руб. | 0.54 руб. | 0 руб. |
| Feb-03-2026 | 0.61 руб. | 0.76 руб. | 0 руб. |
| Jan-03-2026 | 0.77 руб. | 0.89 руб. | 0 руб. |
| Dec-03-2025 | 0.52 руб. | 0.98 руб. | 0 руб. |
| Nov-03-2025 | 0.76 руб. | 0.11 руб. | 0 руб. |
| Oct-03-2025 | 0.88 руб. | 0.58 руб. | 0 руб. |
| Sep-03-2025 | 0.52 руб. | 0.44 руб. | 0 руб. |
| Aug-03-2025 | 0.92 руб. | 0.97 руб. | 0 руб. |
Описание товара

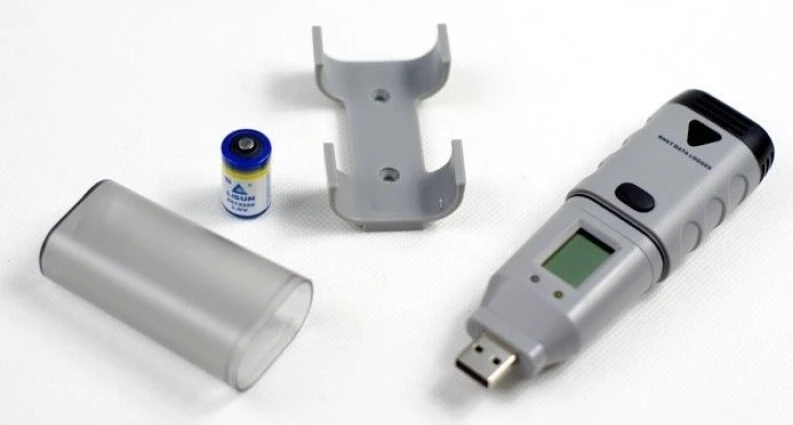

Temperature Humidity Meter Two Channel USB Interface LCD with Analysis Software DGraphTM Dew Point Hygro-Thermometer Data Logger
INTRODUCTION:
This data logger measures and stores up to 32,000 humidity(0 to 100%RH) and temperature(-35 to 80C(-31~176F)) readings. Dew point and more professional applications can be provided by the PC software DGraphTM. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when LED alarm is hold status.
User can plug data logger straight into PC's USB port without any cables. Before getting started, user need to install USB driver and DGraphTM software, provided on the CD which is included in product packing box. All the software can run under Windows XP, Vista, 7 or 8(32 bit and 64 bit Versions). User can easily use DGraphTM software to setup sample rate(from 10 seconds to 12 hours), high/low alarm limit and start/stop method , and download data to PC, etc. And then user can view, analyse and print the data, or export other file formats(txt, xsl, csv, bmp, jpg).
Especially, for some professional applications, user can set access password, name each channel, enable/disable specified channel, input calibration data for each channel, disable LED indication for saving power, and select sample mode(Instant, Average, Maximum and Minimum), etc.
APPLICATIONS:
This data logger is used mainly to monitor and verify humidity&temperature-sensitive goods, equipment orareas. e.g.:
BENEFITS:
1. Portable, precise, compact and low cost 2. Easy to log and analyse data 3. Unique and uniform PC software DGraphTM can meet your higher requirements 4. Elaborate design make it perfectly work in more application field 5. Strict design ensure long term reliable work 6.Enhanced electrostatic protection design to prevent unexpected damageFEATURES:
1.USB interface directly communicate with PC for setup and data download 2.User can set access password for data logger 3. User can name each channel and enable/disable specified channel freely 4. LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via DGraphTM 5.User can input formula to customize compound graph from selected logging data 6. User can create and customize new unit easily and freely for all measurement parameters 7. Logging status indication via red/green LED and battery status indication via yellow LED 8. Start logging method: Immediately, Button, DelayedSPECIFICATIONS:
| Measurement | ||
| Relative Humidity | Measurement range | 0~100%RH |
| Accuracy(Typ.)Figure 1 | +-3%RH | |
| Resolution | 0.1%RH typically | |
| Long Term Drift | <0.5%RH per year | |
| Temperature | Measurement range | -35~80C(-31~176F) |
| Accuracy(Typ.)Figure 2 | +-0.3C(+-0.5F) | |
| Resolution | 0.1C / 0.2F | |
| Long Term Drift | Negligible | |
| General | ||
| Number of Channels | Double Channels (One for humidity and the other for temperature) | |
| User can enable/disable any channels when setup via | ||
| DGraphTM | ||
| Memory Capacity | 64KBytes(Total 32,000 readings for all channels) | |
| Sample Rate | Can be selected from 10 seconds to 12 hours | |
| Start Method | Immediately, Start by button, and Start at date&time | |
| Stop Method | Stop when memory full, overwrite when memory full, and stop until specified number of sample points | |
| finished | ||
| Sample Mode | Instant(default), average, maximum and minimum | |
| This will decide how to dispose data at idle time between a sample interval | ||
| Button | Software config to start logging bybutton, or clear and reset LED alarm when LED alarm is hold | |
| LED | Red&green LED: Logger Status indication(Include Delay to Start, Logging, Alarm, Finished) | |
| (Sofware can disable this two LED for saving power) | ||
| Yellow LED: Low battery indication | ||
| Alarm | User programmable high or low alarm limit for each channel(If necessary) | |
| LED alarm and hold | ||
| Communication | Direct USB connection | |
| Need to install the driver provided on CD | ||
| PC Software | DGraphTM software and USB driver required (Included on CD) | |
| (Compatible with Windows XP, Windows Vista, Windows 7&8(32 bit & 64bit Versions)) | ||
| Use these software to setup, download, view graph and analyse data | ||
| Power Supply | User replaceable 1/2AA 3.6V Lithium Battery 1200mAh | |
| NOTE: USB interface can supply power directly if necessary | ||
| Battery Life | Approx. 2 Years @ 1 Minute Sample Rate | |
| Approx. 4 Years @ 10 Minute Sample Rate | ||
| Approx. 8 Years without any sample task | ||
| NOTE: It also Depends on ambient temperatures and using of LEDs | ||
| Operating Range | 0 to 100%RH -35 to 80C(-31 to 176F) | |
| Storage Range | Recommended: 20 to 60%RH 10 to 50C(50 to 122F) | |
| Case Material | ABS, TPU, PC | |
| Dimentions | 123mm×37mm×23mm(4.8"×1.5"×0.9") | |
| Weight | Approx. 90 grams(3.19 oz) | |
| Mounting | Mounting bracket (Optional) or locking eyelet | |
| Standard Compliance | IP66 RoHS | |
