Xuzhou RINGDER Electrical Equipment co., LTD. is a science and technology enterprise, which is independent research and development, production and manufacture of electronics. RINGDER, based on electronic science and technology at the beginning of establishment, provides a series of solutions with the temperature, humidity, time, infrared, displacement, PID, linear fuzzy control for the refrigeration, HCVA, household appliances, food machinery, aquarium and reptile equipment, suana room and foot spa etc. other industries.

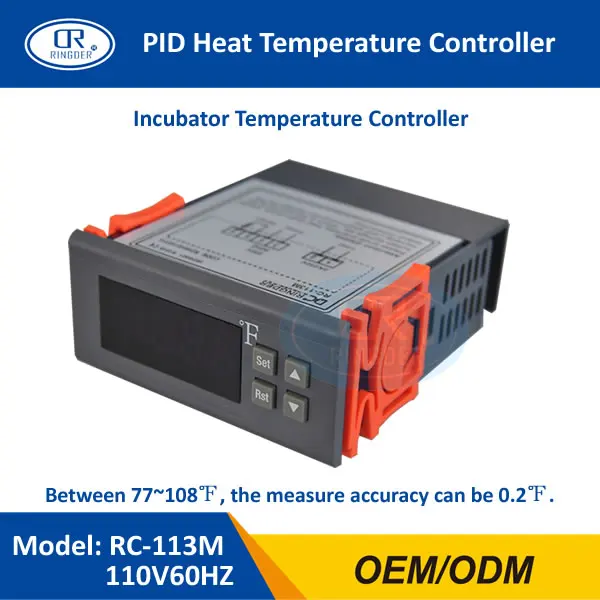

RINGDER RC-113M 110V60HZ PID Heat Brooding Hatching Regulator Digital Thermostat Temperature Controller for Incubator Lab

Model: RC-113M

Features:

• LED display
• PID control
• During 77~108°F, the accuracy can be 0.2°F.
• Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc.

Parameters:

• Temperature measuring range: 14~212°F
• Temperature controlling range: 14~212°F
• Load capacity(triac) : 2A/110V/60HZ/220W
• Power options:110VAC±15%/60HZ
• Input: 1 NTC sensor; sensor wire: 2m(standard)
• Measuring accuracy: ±0.2°F (77~108°F); ±1°F(other range)
• Display resolution: 0.1°F
• Controlling accuracy: 0.1°F(which means user can set stop temp. by 0.1 degree)
• Consumption: ≤3W
• Product size: 8.5*7.5*3.5cm / 3.4*3*1.4in
• Net weight: 0.18kg/6.35oz/0.4lb
• Cut-out size: 7.1×2.9cm/2.80*1.14in
• Package size: 10*9*8cm/3.94*3.54*3.15in
• Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

Function Menu:

Wiring Diagram:

Friedly Reminder:

1. Few customer feedback our controller is not good and not accurate. But most customers leave 5 stars feedback and some of them share their comments and pictures.I think it is still necessary to do some explanation: It depends on many factors: how far is the sensor away from the heat element, room size, how many watts of the heat element etc. User should put proper distance between the sensor and the heating element, and use proper watts load according to the room size. if you put the sensor on the heat element and make them very close. when the controller stop heating,but the element cannot cool immediately, so sensor temperature will rise and exceed the set temperature far.
2. "Controlling accuracy: 0.1°C(which means user can set stop temp. by 0.1 degree)": It doesn't mean if you set 28C, so user can control the temperature between 27.9C and 28.1C. How accurate can the controller do? It depends on many factors, which i give some advice on point 1.
3. as pictures show, two sensors are same specification, we send random shipment. Don't accept buyer selection. Only one sensor in the parcel！
4. We are factory and have the ability to provide OEM or ODM service for all of our products and to develop totally new product with reasonable price for wholesale order.
