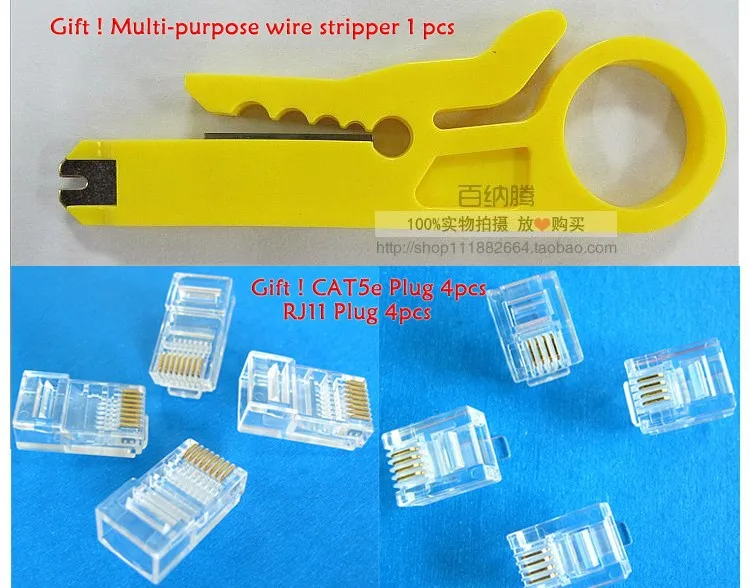

• Gifts!Multi-purpose wire stripper 1 pcs/CAT5e Plug 4pcs/RJ11 Plug 4pcs

• Eliminate fake and inferior products!Genuine network cable tester RJ45 RJ11 telephone line tester Adjustable test speed(without battery)

• If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount.

• This product can be customized

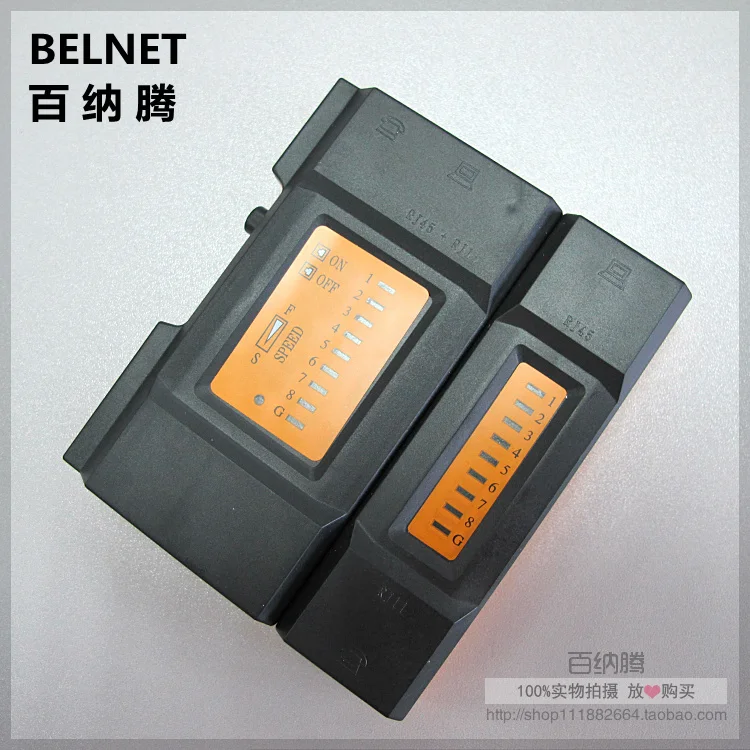

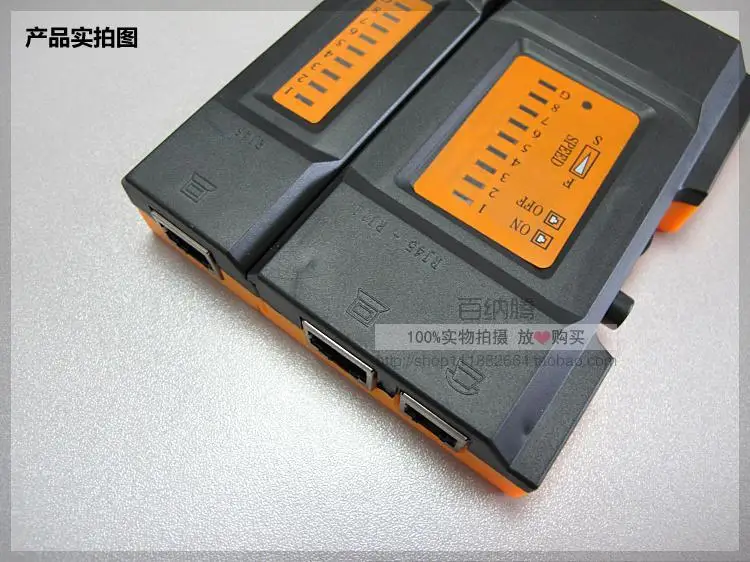

• Product Name:  Genuine network cable tester RJ45 RJ11 telephone line tester Adjustable test speed(Without battery)

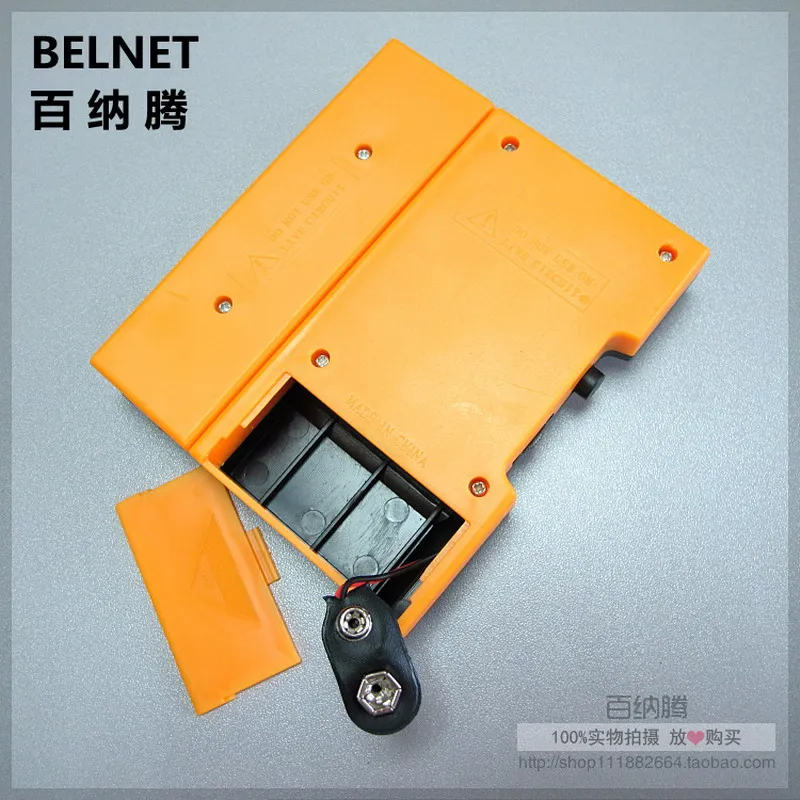

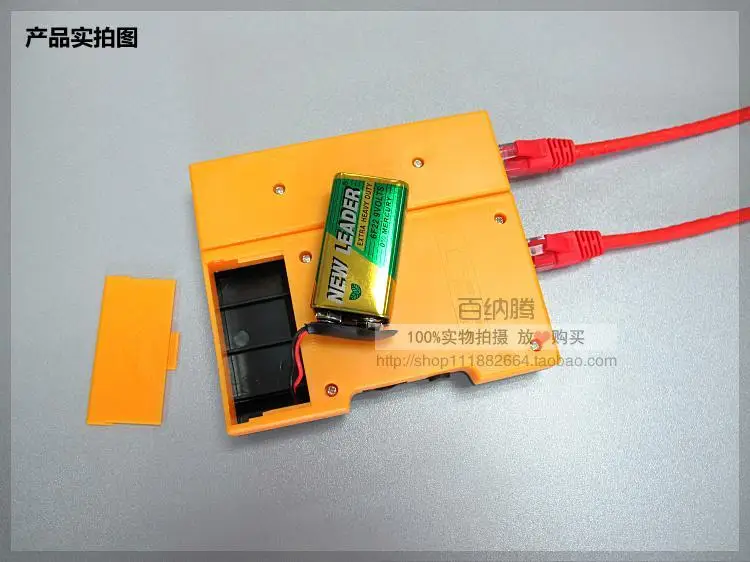

• Packing list: Main Tester (without battery) 1 pcs

                        Remote tester 1 pcs

                        Instructions    1 pcs

                        Stripper           1 pcs

                        CAT5E Plug    4 pcs

                        6P4C Plug       4 pcs

• Product features

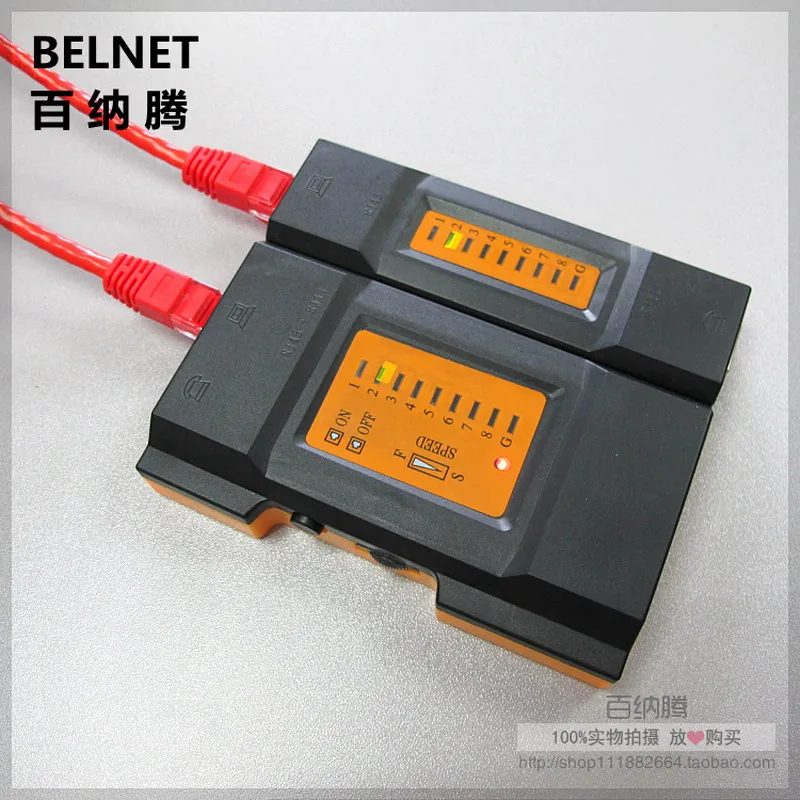

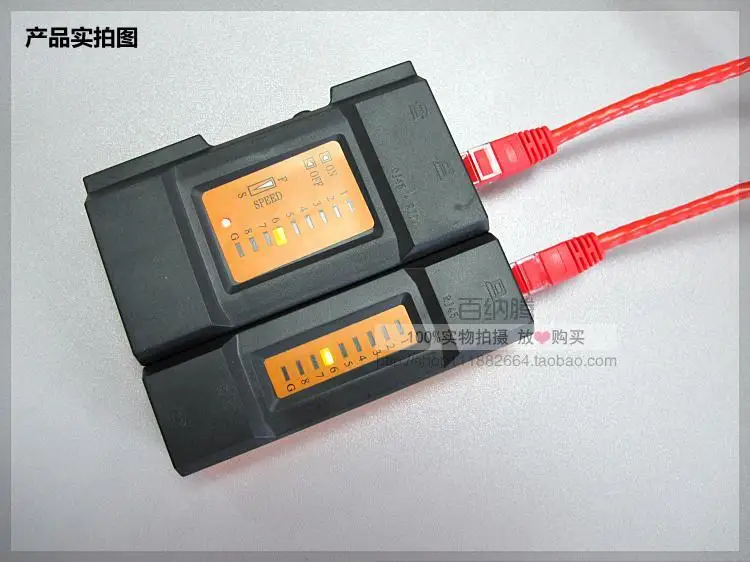

  1. twisted pair 1,2,3,4,5,6,7,8, G line one by one (to) test, can determine which distinguish a (for) the wrong line, short circuit     and open circuit.   2. switch to the ON position for the normal test speed adjustment knob to adjust the tooth test speed, the speed indicator           corresponding display   3. Twisted pair test: Turn on the power, the network cable plugs were inserted into both main tester and remote tester host       from 1 to G by one indicator flashing sequence, normally as follows:       Main Tester: 1-2-3-4-5-6-7-8-G     Remote tester: 1-2-3-4-5-6-7-8-G (RJ45)        If the wiring is not normal, according to the following cases show:   A. When there is a network cable, such as the 3rd line circuit, the main tester and remote tester 3 lights are not bright.   B. When there are several lines unreasonable, then a few lines are off, when the cable is less than 2 wire communication,   the lights are not bright.   C. When the two lines out of order, for example, 2,4 lines out of order, the display is as follows:     Main tester unchanged: 1-2-3-4-5-6-7-8-G     Remote tester is: 1-4-3-2-5-6-7-8-G   D. When the cable has two short circuit, the main tester display is not lit, and remote tester display two lines shorted lights       are shimmering, if three or more (including three) short circuit shorted a few all Light line numbers are not bright.      If test network cable between patch panels and wall seat module, you need two matching jumper lead to the   tester.

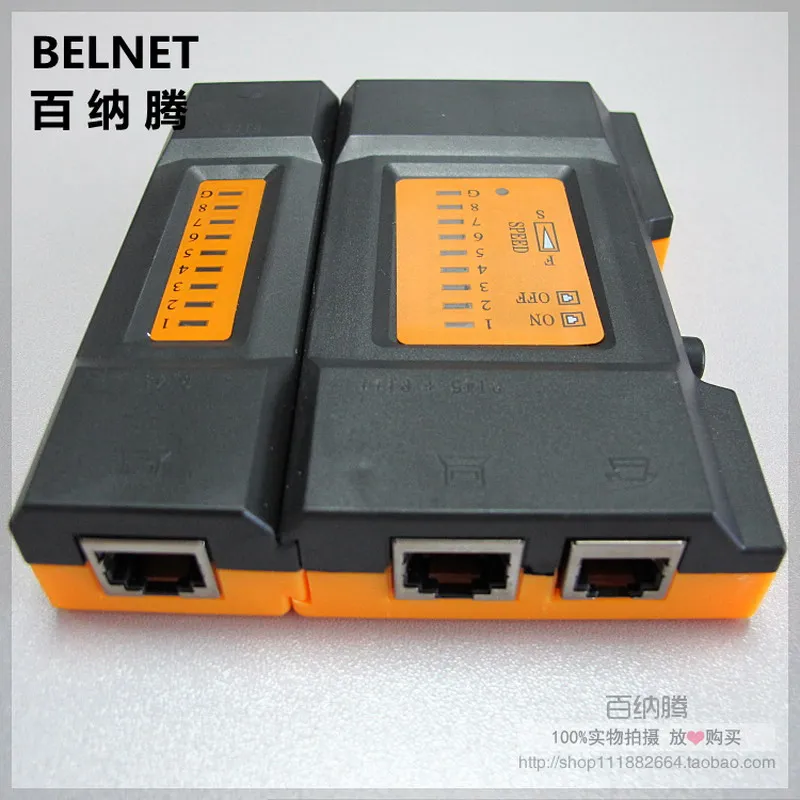

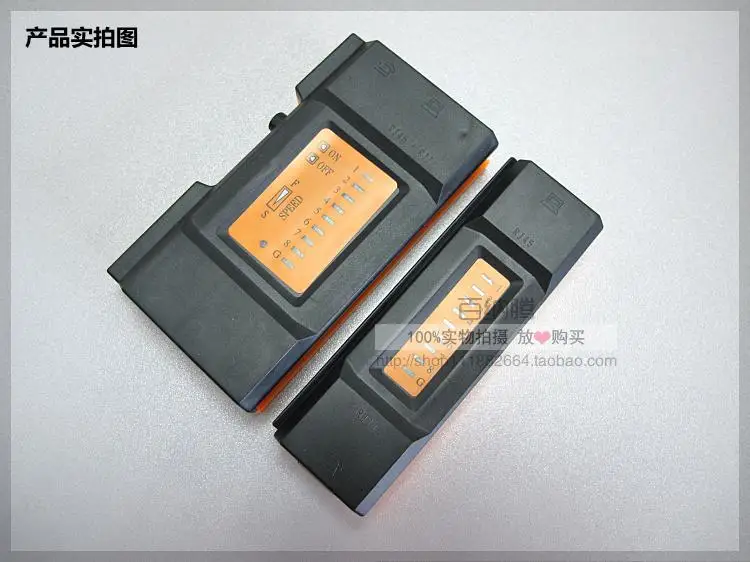

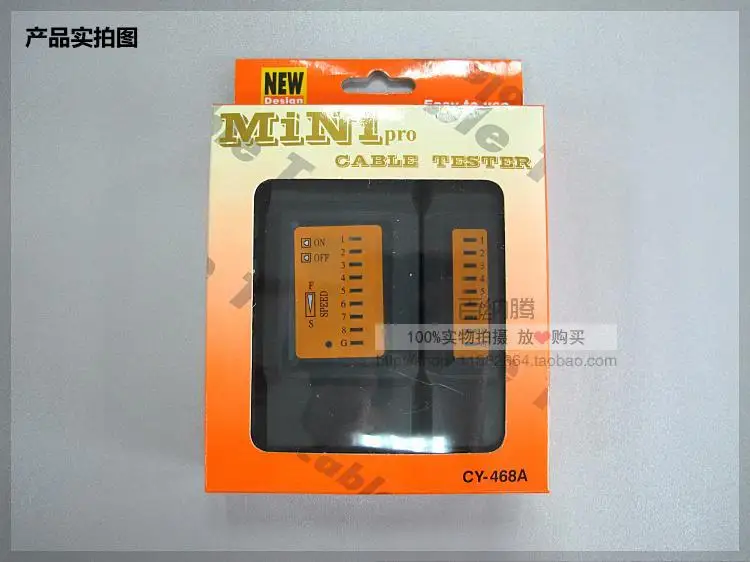

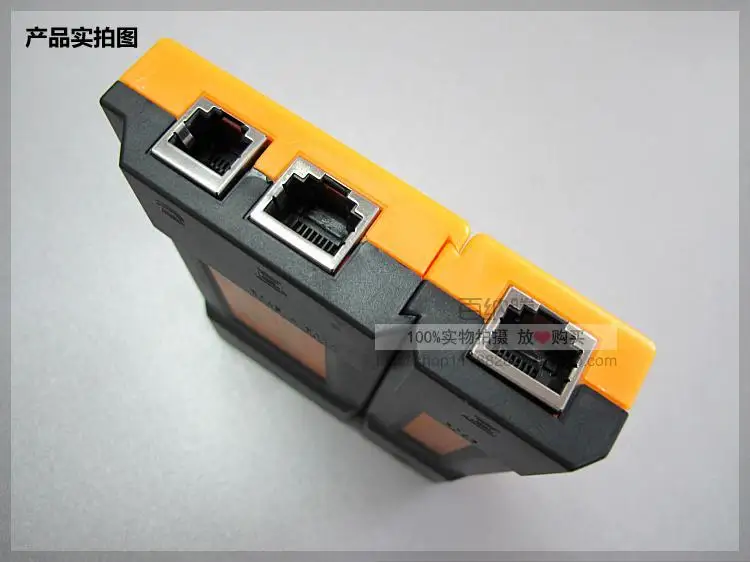

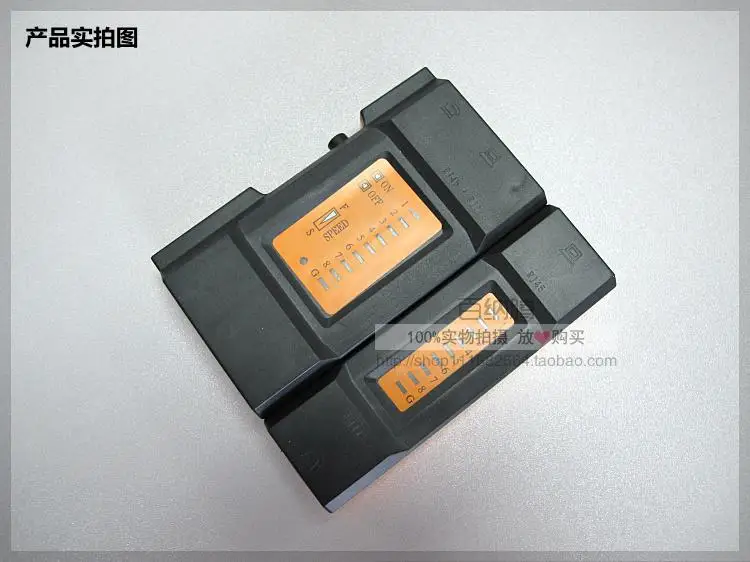

• Product Pictures and Graphic Instructions
