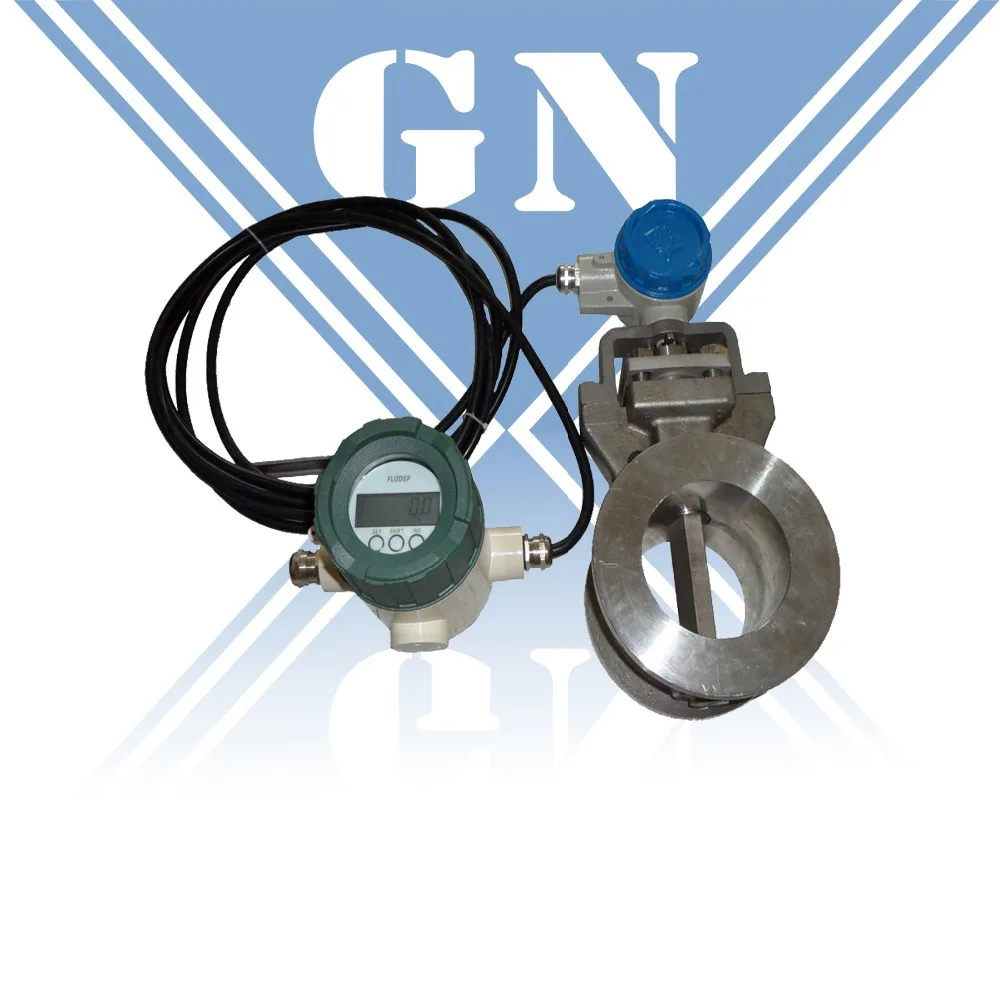

DN50 digital vortex flow meter | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 0.27 руб. | 0.92 руб. | 0 руб. |
| Aug-16-2025 | 0.36 руб. | 0.86 руб. | 0 руб. |
| Jul-16-2025 | 0.31 руб. | 0.79 руб. | 0 руб. |
| Jun-16-2025 | 0.58 руб. | 0.82 руб. | 0 руб. |
| May-16-2025 | 0.15 руб. | 0.95 руб. | 0 руб. |
| Apr-16-2025 | 0.83 руб. | 0.95 руб. | 0 руб. |
| Mar-16-2025 | 0.28 руб. | 0.97 руб. | 0 руб. |
| Feb-16-2025 | 0.96 руб. | 0.70 руб. | 0 руб. |
| Jan-16-2025 | 0.35 руб. | 0.9 руб. | 0 руб. |
Описание товара
size:DN50 Medium:steam Flow range:35-350m3/H lithium power supply without output display:LCD;Accuracy:±1.5% Temperature range:50-+250C pressure:1.6Mpa material:stainless steel connection:SS304 DIN with temperature and pressure compensation
Skype:shcixi_ru
Mobile phone(whatsapp):(86) 18930776760
Pls send the inquiry to email as watermark to get the best price.
Brief introduction
vortex flow meter is widely used in petroleum, chemical, metallurgical, power, textile, paper and other industries on the superheated steam, saturated steam, compressed air and gases ( oxygen, nitrogen and hydrogen, natural gas, gas ), water and liquid ( such as: water, gasoline, alcohol, benzene and so on ) measurement and control .
Main features
1.Two-wire and three -wire system.
2.large range
3.Can be used to measure gas,steam and liquid.
4.EVC function is optional.
Technical parameters
| Nominal diameter(mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
| Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
| Medium temperature (C) | Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
| Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
| Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
| Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
| Range of | 1:6~1:30 |
| Power supply voltage | Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery |
| Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
| Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
| Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
| Protection grade | The ordinary IP65 diving type IP68 |
| Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
| Applicable medium | Gas, liquid, steam |
| Transmission distance | Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
Factory
Installation
Production Line
Certificate
Pls check below parameters to raise formal quotation for you.thanks.
1) Where do you use it for ?
2) What’s the medium ?
3) What’s the flow range ?
4) What’s the connection size ?
5) What’s the working temperature ?
Payment terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sale services
1. Warranty: The warranty period is 12 months starting from the shipping date
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality
3. For on-site services not arising from manufacturing quality, we shall charge a certain ser After-sales service vice fee at our discretion based on actual charges incurred such as travel exp
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Transportation
