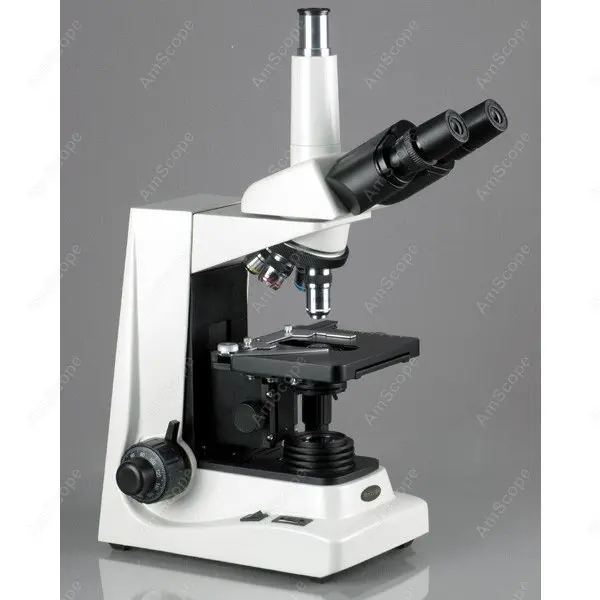

This professional trinocular microscope offers phase contrast features. It is designed for advanced applications in clinical offices and research laboratories. This microscope comes with a 3MP digital camera, 30 degree inclined 360 degree swiveling compensation free trinocular head, 3-D mechanical stage and intensity-variable halogen illumination system. It offers six phase contrast settings (100X-160X-400X-640X-1000X-1600X) and eight bright field magnification powers (40X-64X-100X-160X-400X-640X-1000X-1600X). The phase contrast kit includes a phase contrast condenser, CT lens and a set of phase contrast 10X, 40X and 100X PLAN objectives.

The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop.

This microscope is made by the same technicians and on the same production line as optical instruments for Leica, Zeiss, Nikon and Olympus. It is brand new in factory sealed original box. Its retail value is about $4,500.

Features:

• A Phase Contrast and Bright Field Microscopy System
• Perfect for Clinics, Vets, Doctors and Researchers
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
• 30 Degree Inclined 360 Degree Swiveling Compensation-free Trinocular Head
• Trinocular port with both C-mount and 23 mm universal photo mount for attaching video or camera
• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
• Low Position Coaxial Stage Movement Control Knobs
• Coaxial Coarse & Fine Focusing with CA Knob Tension Control
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Professional Grade Microscope
• Eight Bright Field Magnification Settings: 40X-64X-100X-160X-400X-640X-1000X-1600X
• Six Phase Contrast Magnification Settings: 100X-160X-400X-640X-1000X-1600X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
• Rack and Pinion Control for Condenser
• Built-in Halogen Illumination System with Variable Brightness
• Focusing Control Knobs on Both Sides
• Four DIN Achromatic Objectives
• Three Phase Contrast DIN Achromatic Plan Objectives
• Two Sets of Eyepiece Included
• Full Optical Glass Elements
• Precise Ground Glass Lens
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Adjustable Diopters on Both Oculars
• Rugged Cast Alloy Frame and Stand with Stain Resistant Enamel Finish
• Spare Bulb, Fuse and Included
• Plan-Concave Mirror Included
• Manufactured under ISO 9001 Quality Control Standard.
• Excellent Five (5) Year Factory Warranty.

Specifications :

• Phase Contrast: Simple
• Nosepiece: ball bearing quadruple
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: compensation free trinocular inclined at 30 degree
• Wide-Field Eyepieces: WF10X & P16X
• Interpupillary Distance: 2-3/16" - 3" (55 - 75mm)
• Achromatic Objectives: 4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil)
• Phase Contrast Plan Objectives: Plan PH 10X(0.25), PH 40X(0.65) & PH 100X(1.25) (160/0.17)
• Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
• Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Microscope Dimensions: 10" x 9" x 16"
• Illumination: 6V/20W halogen lamp.
• Power Supply: 110V/220V, CE certified.
• Accessories: 6V/20W spare halogen bulb, 2" plan-concave mirror, bottle of objective oil, and blue, green & yellow filters

Camera Specs:

• Sensor: Aptina MT9T001 CMOS (color)
• Sensor Size: 1/2“ (6.55mm(H) x 4.92mm(V), diagonal 8.19mm)
• Resolution: 2048x1536 (approx.3,200,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 3.2µm x 3.2µm
• G Sensitivity: 1.0v / lux-sec (550nm)
• Frame Rate: 43fps @680x510, 22fps @1024x768, 8fps @2048x1536
• Exposure: 0.128~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

Packing List :

• One Trinocular Microscope with Frame and Base
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• One Complete Phase Contrast Kit
• one Dust Cove
• One Power Cord
• One 6V/20W Spare Halogen Bulb
• Color Filters, Spare Fuses and a bottle of Sample Included
• User's Microscope Manual
• One 3MP USB2.0 digital Camera with Reduction Lens
• One Adapters
• One USB Cable
• One CD with Software, Driver and Step-by-step Instructions
• Shipping Weight: 45 (30+15) lbs
• Package: 2
