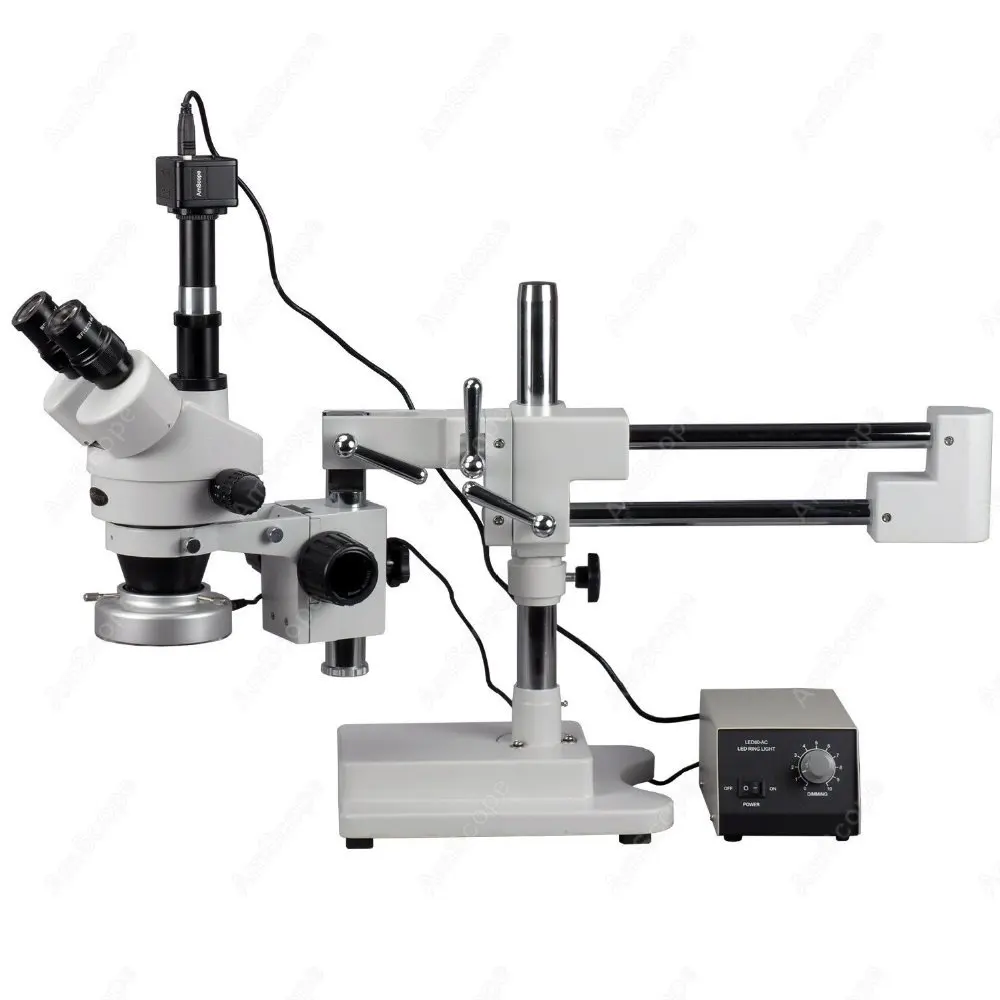

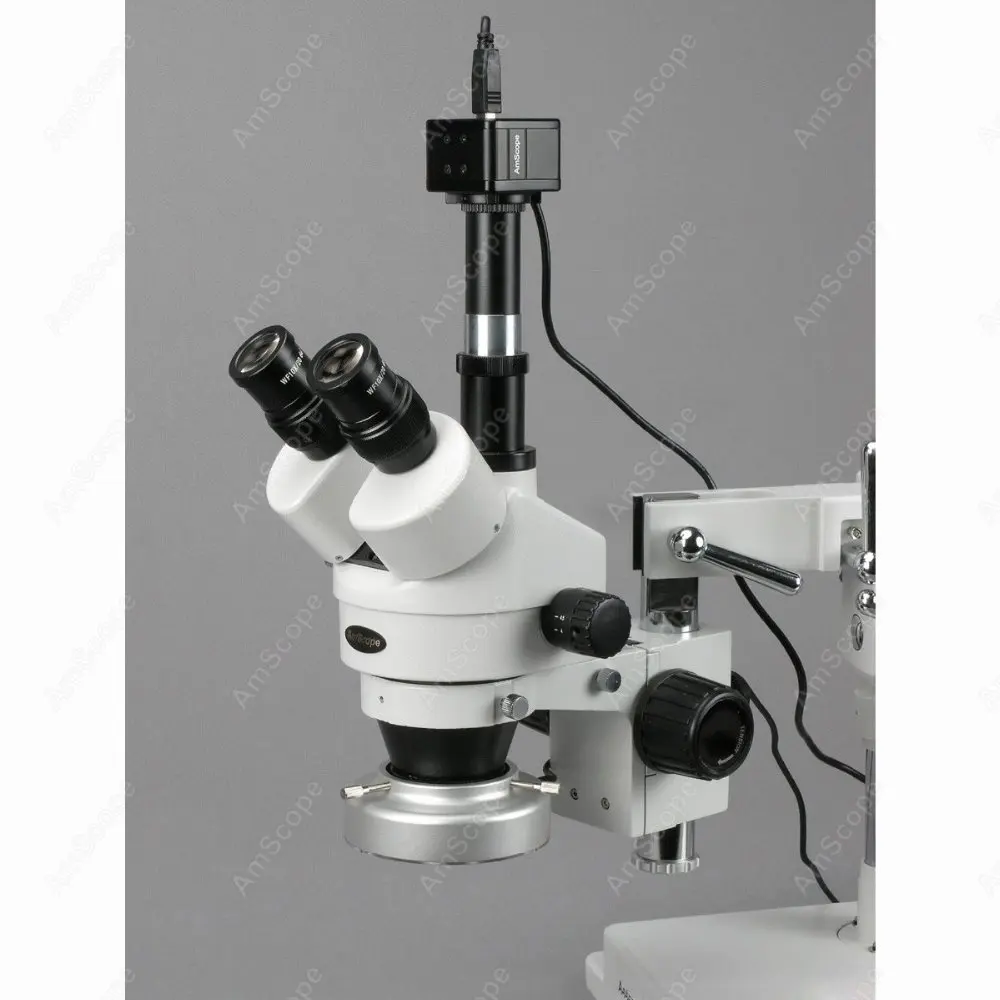

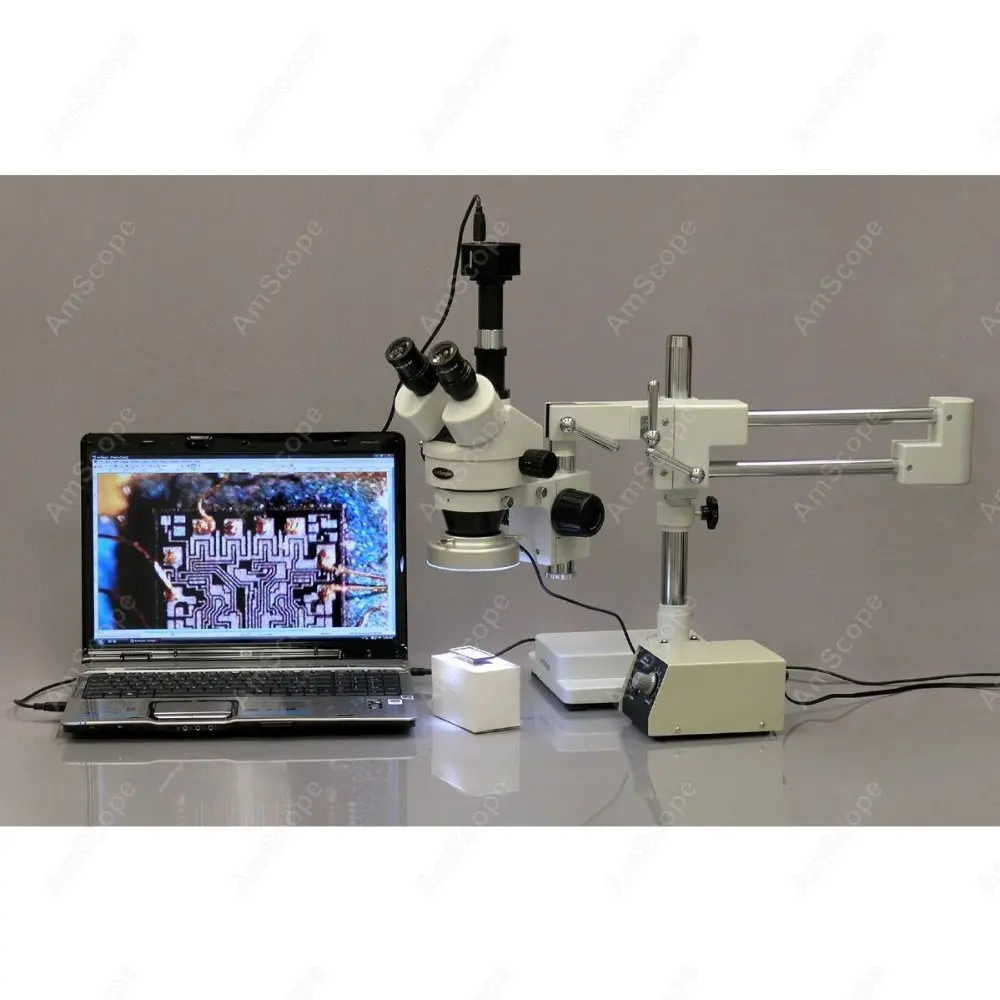

This is a 3.5X-90X trinocular stereo boom microscope with heavy-duty 80-LED illuminator and 5MP color digital camera. The microscope offers crystal clear sharp images, super widefield optics, 26:1 very large zoom magnification power, 2-1/2" (65mm) super widefield of view and 8" (200mm) working distance. Its high-eyepoint optic design ensures an easy and comfortable observation. The versatile double-arm boom stand allows you to turn the microscope head around three different axes (x, y and z); that is, you can point the microscope head in any direction you wish. The intensity-adjustable LED illuminator has a solid aluminum ring body and heavy-duty metal control box, providing cool, even and bright illumination. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscopy system is an ideal instrument for gemologists, manufacturing engineers, and anyone in semiconductor and electronics industries. It is also a right microscope for biological laboratory applications that require low heat release. Made by the same OEM supplier that provides optical instruments for Leica, Zeiss, Nikon and Olympus, it arrives brand new in a factory sealed box and retails for more than $3,200.

Features:

• An perfect 3.5X-90X widefield stereo boom microscope with 5MP high resolution USB2.0 color digital camera!
• Sturdy 80-LED aluminum ring light and heavy-duty metal control box
• Intensity-adjustable cool, even and bright LED illumination
• 3.5X-90X super wide zoom magnification power
• Trinocular Design for Adding Photographic or Video Capability
• Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera Attachment
• Super high resolution with great flatness and contrast, giving sharp and clear images
• Trinocular head with 45-degree inclined 360-degree swiveling eye tubes
• 30mm SUPER widefield high-eyepoint 10X eyepieces with 20 mm field of view
• High resolution optical system with great flatness and contrast
• Sharp stereo erect images with wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopter
• Adjustable interpupillary distance
• 8" (200mm) large working distance
• Accurate alignment ensuring a fatigue-free long time viewing
• Full optical glass elements
• Precise ground glass lenses
• Versatile boom stand covering large working area
• Double-arm design for 3-degree freedom
• Allowing you to point microscope head in any direction you wish
• Heavy-duty cast steel stand finished with stain resistant enamel
• Rugged solid cast steel base
• All metal mechanical component
• Full metal chrome-plated mechanical components
• Rubber eyeguards included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Head: 360 degree rotatable 45 degree inclined trinocular
• Eyepieces: 30mm super widefield high-eyepoint WH10X/20MM with 20mm field of view
• Barlow Lens: 0.5X and 2.0X
• Zoom Range: 0.7X-4.5X
• Working Distance: 8" (200mm)
• Field of View: 2-1/2" (65mm) super widefield
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

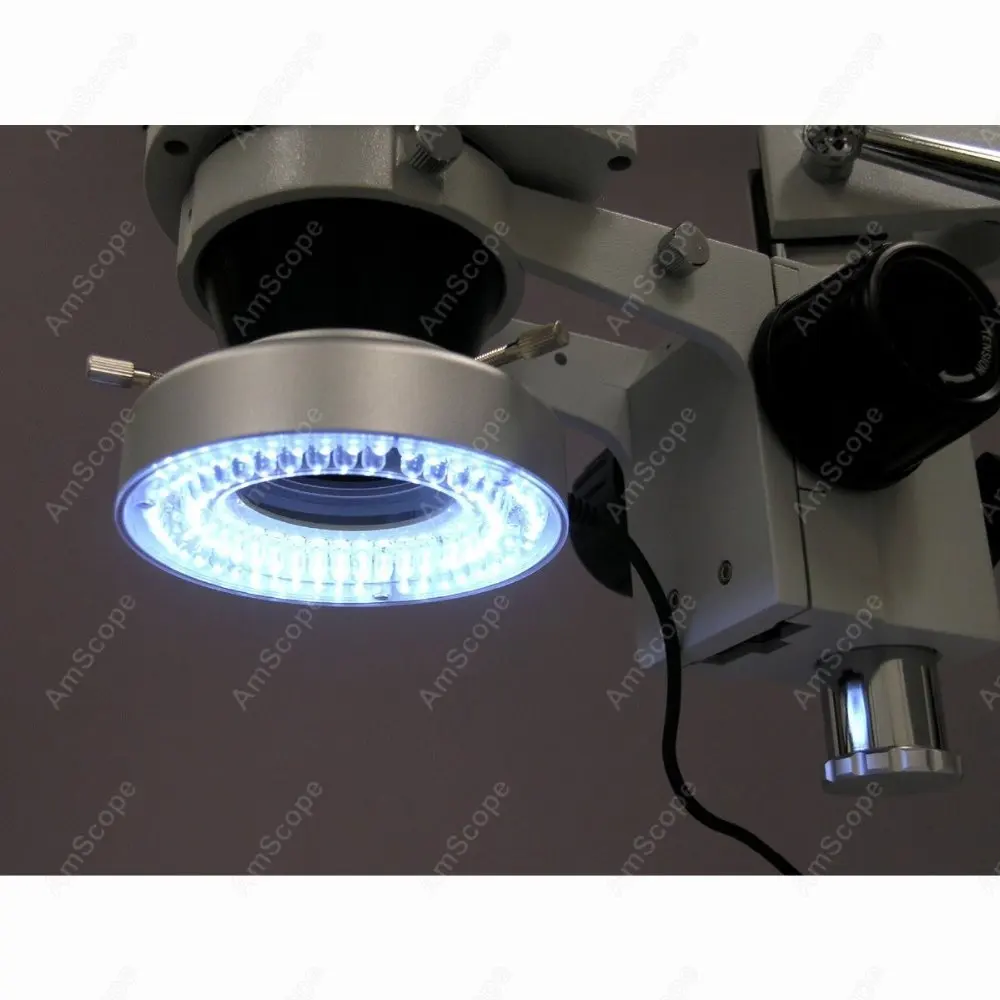

• Illumination: 80 white LEDs, heavy-duty design with solid aluminum ring
• Power Input: 110-240V, 50-60HZ, Automatical Switching
• Stand: 12.5"x10"x0.75" (320x280x20mm) solid cast steel base
• Accessories: eye-guards
• Weight: 65 lbs (30 kg), packed in 2 boxe


Camera Specs:

• Sensor: Aptina MT9P001 CMOS (color)
• Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
• Resolution: 2592x1944 (approx.5,040,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 3.2µm x 3.2µm
• G Sensitivity: 0.53v / lux-sec (550nm)
• Frame Rate: 60fps @640x480, 18fps @1280x960, 5fps @2592x1944
• Exposure: 0.21~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
• - offers Stitching, EDF, video recording and measurement functions
• - conducts measurements for lengths, angles, arcs, areas and etc.
• - gives your computer screens the same field of view as your microscope's eyepiece
• - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
• - edit and process microscopy images in a manner similar to PhotoShop
• - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

Packing List:

• One Trinocular Stereo Zoom Head
• One Pair of SUPER Widefield 10X Eyepieces
• One 0.5X Barlow Lens
• One 2.0X Barlow Lens
• One Double-Arm Boom Stand with Focusing Rack
• One 5MP USB2.0 Microscope Digital Camera with Reduction Lens
• Two Mounting Adapters for the Camera
• One USB Cable
• One CD with Driver, Software and User's Instructions
• One 80-LED Aluminum Ring Light with Mounting Adapter
• One Pair of Eye-Guards
• One Dust Cover
• User's Manual for the Microscope
