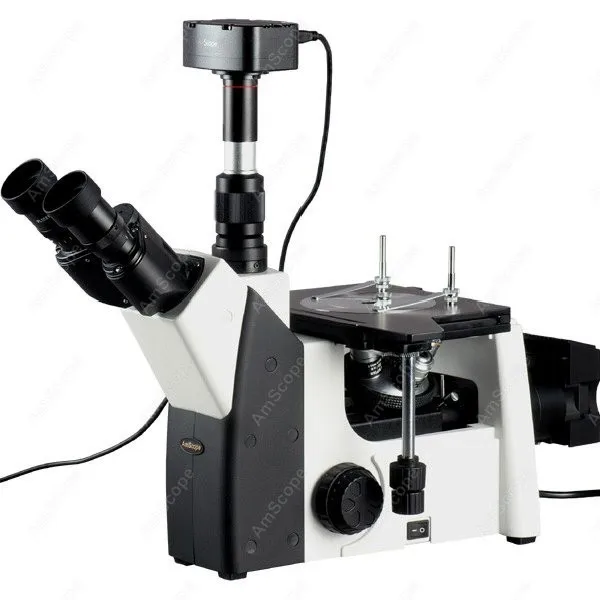

This trinocular inverted metallurgical microscope comes with a trinocular microscope Siedentopf head, four Plan Achromatic objectives, a large mechanical stage and a 5MP digital camera, offering six magnification settings, 50X, 100X, 200X, 400X, 500X & 1000X. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications. It is brand new in factory sealed boxes.

Features:

• An inverted metallurgical Plan optical metallographic microscope with digital camera
• Wide band power supply system from 90V to 240V
• Fully coated optical system with high resolution
• Four DIN standard Plan objectives included
• Two pairs of Plan widefield eyepiece included
• Intensity-variable halogen illumination
• Large mechanical stage with stain resistant finish
• Coaxial coarse and fine focusing
• Focusing tension control mechanism
• Low position stage traveling controls
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Dual side focusing controls
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Solid metal frame construction with stain resistant enamel finish
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

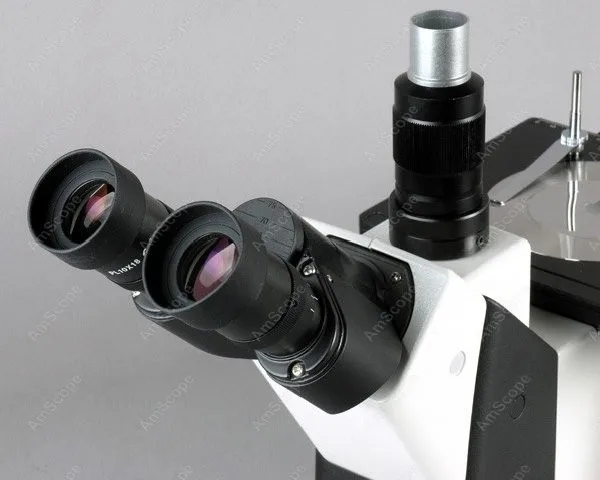

• Head: 45 degree inclined trinocular
• Nosepiece: quadruple
• Focusing Range: 1-5/16" (33mm)
• Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Camera/Video Trinocular Port: 23mm universal/standard photo tube
• Eyepieces: WF10X (18mm Field of View), WF20X
• Objectives: Plan Achromatic 5X (0.1 NA), 10X (0.25 NA), 20X (0.40 NA), 50X (Spring, 0.65 NA)
• Stage Dimensions: 7-3/32"x 6-1/8" (180x155mm)
• Stage Traveling Range: 3-0"x 1-9/16" (75x40mm)
• Venire Division: 0.00004" (0.001mm)
• Illumination: 3W LED, 90V-240V wide band, CE certified

Camera Specs:

• Sensor: Aptina MT9P001 CMOS (color)
• Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
• Resolution: 2592x1944 (approx.5,040,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 3.2µm x 3.2µm
• G Sensitivity: 0.53v / lux-sec (550nm)
• Frame Rate: 60fps @640x480, 18fps @1280x960, 5fps @2592x1944
• Exposure: 0.21~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

Packing List:

• 1 Trinocular Microscope Siedentopf Head
• 1 Inverted Body Frame with Mechanical Stage and Illumination System
• 1 Pair of Plan 10X Widefield Eyepieces
• 1 Pair of Widefield 20X Eyepieces
• 4 Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X and 50X
• 1 5MP USB2.0 Digital Camera with Reduction Lens
• 1 USB Cable
• 2 Camera Adapters
• 1 CD with Software, Driver and Step-by-Step User's Instructions
• 1 Power Cord
• 1 Dust Cover
• 1 Microscope User's Manual
• Shipping Weight: 30 lbs
