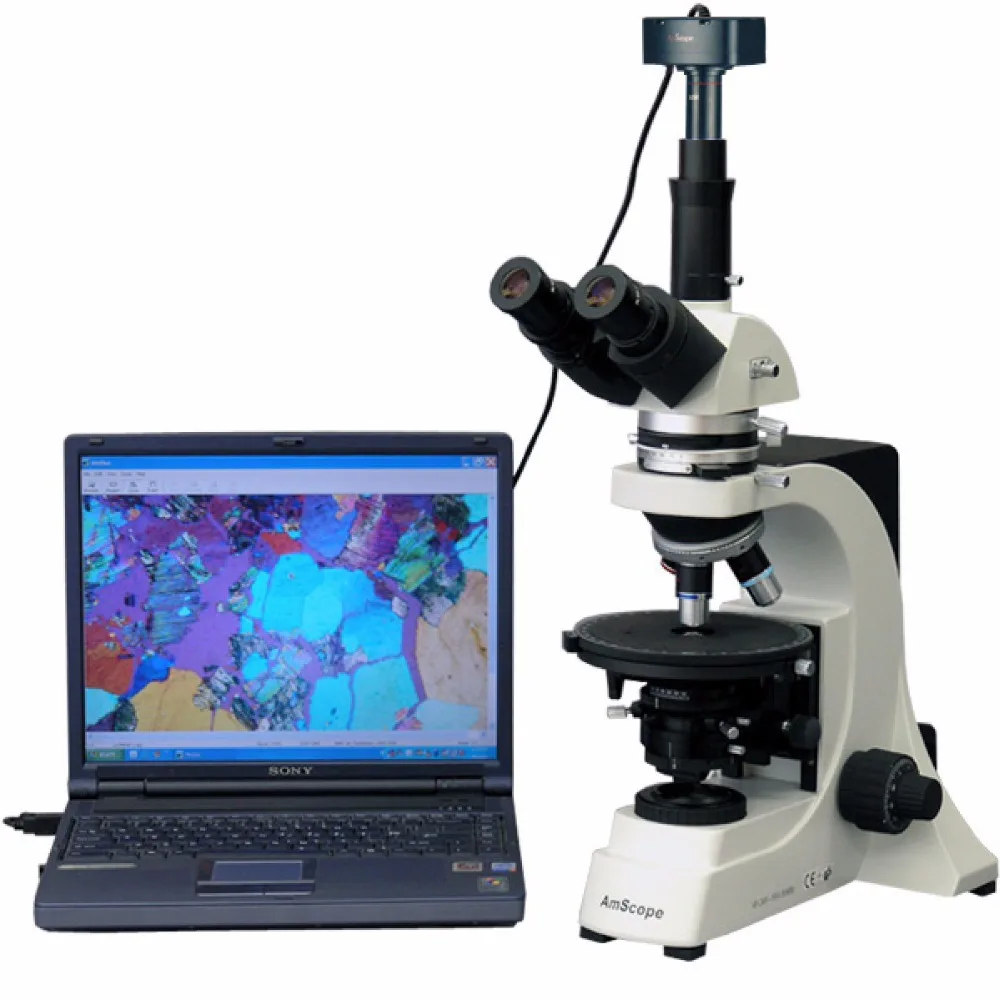

This is a trinocular infinity polarizing microscopy system with 5MP USB2.0 high-resolution color digital camera that can capture microscope still images or display alive video on computer screens. The microscope comes with a 30 degree inclined 360 degree rotatable trinocular head and coarse and fine focusing. It offers eight magnification settings (40X, 80X, 100X, 200X, 400X, 800X, 600X & 1200X). The digital camera provides 5MP high resolution, compatible withWindows XP/Vista/7/8, Mac OS X and Linux. It has a built-in reduction lens and gives the same field of view images on your computer screen as those seen through eyepieces. Using the user-friendly software, you can capture microscope still images, edit the images, conduct measurement across the images, record videos or save them in BMP, TIFF, JPG, PICT, PTL and other formats. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection and quality control. It is brand new in factory sealed box. Its Retail Value is $11,000.

Features :

• A high quality professional infinity polarizing microscope with USB digital image system!
• Perfect for geology, petrology, mineralogy, toxicology, pharmaceutics, and forensic medicine!
• 5MP high resolution high quality USB2.0 digital image system
• Records videos or saves images in BMP, TIFF, JPG, PICT, PTL or other format!
• User-friendly software compatible with Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up
• Captures microscope still images or displays real-time live video on your computer screen
• Edits microscope images in the same way as you use PhotoShop
• Built-in reduction lens providing the same view on your computer screen as that seen through eyepieces
• Fast USB2.0 connection and easy installation and operation
• 30 degree inclined 360 degree rotatable trinocular head
• Eight magnification settings, 40X, 80X, 100X, 200X, 400X, 800X, 600X and 1200X
• 30 mm PL high-eyepoint eyepieces, 10X and 20X
• Four Infinity corrected PLAN distressing objectives, 4X, 10X, 40X and 60X, for super quality images
• 360 degree rotatable stage with locking control
• Koehler illumination system with swing type achromatic condenser
• Built-in focusable Bertrand lens on rotatable disc with centering controls
• Built-in analyzer with capability for removal from optical path
• Large mechanical stage with stain resistant finish
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Coaxial coarse and fine focusing system
• Dual focusing control knobs
• Focusing tension control mechanism
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Solid metal frame construction with stain resistant enamel finish
• Graduated in 1 degree for 90 degrees
• 360 degree rotatable polarizer able to be removed from optical path and lock positions
• Brightfield/polarizing selectable knob for easily changing light from brightfield to polarization
• Super widefield high eye-point 10x eyepieces with 22 mm field of view (PL 10x/22mm)
• High-eyepoint optics for an easy observation, especially for eyeglass wearers
• Reversed quadruple nosepiece - the design allowing easier access to slides
• Objective centering screws on nosepiece for precise alignment
• 50mm - 80mm adjustable interpupillary distance (the distance between two eyes)
• Sub-stage condenser on swing with alignment control and iris diaphragm
• Rack pinion steel gears for easy and better condenser movement
• 45mm Blue filter for base illumination
• Large fully rotatable round stage with ball bearing movement, 160mm diameter with graduation marks every 1 degree for the full 360 degrees
• Stage rotation lock screw and detachable stage slide clips
• Tension-adjustable coarse focusing
• Adjustable lock ring stopper to limit coarse range to protect slides
• 30W intensity-variable halogen transmitted illumination
• Spare bulb, fuse, bottle of and dust cover included
• Optional PLAN objectives: 20X, 100XS (oil)
• Manufactured under ISO 9001 quality control standards
• Excellent five (5) year factory warranty
• Unbeatable lowest price guaranteed or difference back!
• Satisfaction guaranteed or your money back!

Specifications :

• Eyepieces: PLAN10X (22mm field of view) and 20X flat-field eyepieces with eye-guard and PL10X22mm eyepiece with reticle
• Objectives: infinity Plan distressing objectives: 4XS, 10XS, 40XS, 60XS
• Head: 30 degree inclined Gemel type of trinocular head
• Midst Head: build-in analyzer and Bertrand lens, rotating range of analyzer: 90 degree, a dose value of vernier 6', being able to shift out the optical way. With Bertrand lens diverter and focusing handwheel, centering adjustment
• Compensator: λ plate (f18mm, first-order red, light path aberration: 551nm); λ/4 plate (f18mm, light path aberration: 147.3nm); Quartzose chock (12×28mm, I - IV)
• Nosepiece: quadruple
• Focusing System: coaxial coarse and fine controls
• Coarse Adjustment Travel Range: 28mm. (Stage Movement Distance Up/Down)
• Fine Adjustment Division: 0.002mm
• Stage: rotatable circular, 360 degree rotatable circular worktable, a dose value of mark 1, a dose value of vernier 6'
• Slice: plug type
• Condenser: NA1.2/0.22 swing type achromatic condenser
• Polarizer: 360 degree (0 degree/90 degree/180 degree/270 degree four type graduation) rotatable vibration, apparatus with locking, being able to shift out the optical way
• Micrometer Ruler: 0.01mm
• Color Filter: blue
• Objective Centering Wrench : 1.5 mm
• Camera/Video Port: 23mm universal/standard phototube
• Illumination: Koehler illuminator system, 6V/30W halogen bulb, adjustable brightness, CE certified
• Power Supply: 90V~240V fluctuate of voltage
• Total Overall Height of Microscope: 485mm
• Shipping Weight: 32 lbs

Packing List :

• One 30 degree Inclined Gemel Type Trinocular Head
• One Microscope Body with Frame, Base and Koehler Illumination System
• Four High Quality Infinity Plan Distressing Objectives: 4XS, 10XS, 40XS, 60XS
• One Pair of Extreme Widefield Eyepieces, PL10X
• One Extreme Widefield 10X Eyepiece with Reticle
• One Pair of Extreme Widefield 20X Eyepieces
• One 5MP USB2.0 Digital Images System with Software
• One Micrometer Ruler
• One Color Filter, Blue
• One 6V/30W Spare Halogen Bulb
• One Power Cord
• One Dust Cover
• User's Manual
