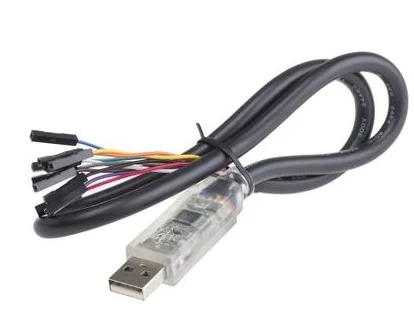

need the datasheet for this product,please leave a message,We will send you by Email. If you need good communication and fast shipping,try us - Brand : FTDI Product: USB Cables Type: USB 2.0 A connector end : USB Connector End A Pin Count : 4 Connector B: Header Connector End B Pin Count : 10 Gender: Male / Female Wire Gauge - AWG: 24 Length: 0.5 m Color : Black Conductors: 10     Did you mean : FTDI USB to MPSSE Cables FTDI USB to MPSSE Cables provide a fast, simple way to connect devices with 3.3V logic level interfaces to USB. The Digital Level Multi-Protocol Synchronous Serial Engine (MPSSE) cables are available with both 3.3V and 5V output . The connector end of the cables contain FTDI's FT232H USB interface chip. The cables are terminated by ten individual wires which can be interfaced to a 0.1 \"pitch male header. Supporting the USB 2.0 Hi-Speed ​​(480Mb / s) standard, the USB to MPSSE Cables from FTDI can be used to communicate with various synchronous serial interfaces, such as JTAG, SPI or I2C. The MPSSE enables designers to implement proprietary synchronous serial bus protocols. Features Based on the Single chip USB Hi-Speed ​​FT232H device USB 2.0 Hi-Speed ​​(480mbps/ Second) and Full Speed ​​(12 Mbits/ Second) compatible Entire USB protocol handled on the chip - No USB-specific firmware programming required USB Type A connector for direct connection to a host or hub USB bus powered Fully assisted hardware or X-On / X-Off software handshaking Synchronous Serial ( MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C 1kByte receive and transmit buffers for high data throughput Adjustable receive buffer timeout Support for USB suspend and resume Low operating and USB suspend current Low USB bandwidth consumption UHCI / OHCI / EHCI host controller compatible -40 ° C to + 85 ° C operating temperature range Cable length is 0.5m (19.7 inch) Custom versions also available (subject to Minimum Order Quantity (MOQ)) FTDI's royalty-free D2XX drivers eliminate the requirement for USB driver development in most cases Applications USB to JTAG interfaces USB to SPI interfaces USB to I2C interfaces Interfacing MCU / PLD / FPGA based designs to USB USB Audio and Low Bandwidth Video data transfer Rapid USB integration into existing electronic systems Prototyping platform for USB interface on new systems USB Instrumentation FTDIUSB toMPSSE cable
FTDIUSB toMPSSE cable provides a fast and simple manner 3.3V logic level interface device connected to the USB port. Digital level multi-protocol synchronous serial engine (MPSSE) cable output 3.3V and 5V available . FTDI connector end of the cable containing the FT232HUSBInterface chip. The cable is made ​​to connect to a 0.1 \"pitch male header 10 pieces of wire termination Supports standard USB2.0 high speed (up to 480Mb / s) , and the USB from FTDIMPSSECable can be used with a variety of synchronous serial communication interface , such as JTAG, SPI or I2C interface MPSSE allows designers to implement proprietary synchronous serial bus protocol.

Features
Based on single-chip high-speed USB devices FT232H
USB2.0 high speed (480Mbits / sec ) and full speed compatible (12Mbits / sec )
It handles the entire USB protocol on the chip - No USB -specific firmware
USB Type A connectorIt can be connected directly to a host or hub
USB bus powered
Fully assisted hardware or X-ON /X-OFFSoftware handshaking
On JTAG synchronous serial (MPSSE) data rates of up to 30Mbps , SPI and I2C
1K byte receive and transmit buffers for the high data throughput
Adjustable receive buffer timeout
Support USB suspend and resume
Low operating and USB suspend current
Low USB bandwidth consumption
Compatible UHCI /OHCI/EHCI hostController
-40 ° C to + 85 ° C operating temperature range
Cable length is 0.5m (19.7 inches)
Custom versions are also available ( for an MOQ (MOQ))
FTDI royalty-free D2XX driver exclude most cases of USB driver development requirements
application
USB to JTAG interface
USB and SPI Interface
USB to I2C Interface
Interface MCU /PLD/ FPGA -based designs to USB
USB audio and low- bandwidth video data transmission
Fast USB integration into existing electronic systems
The new prototype platform , USB interface
USB specification
