DIYSECUR Remote Control Magnetic Lock Door Bell 125KHz RFID Reader Blue Backlight Keypad Access Security System |

DIYSECUR Remote Control Magnetic Lock Door Bell 125KHz RFID Reader Blue Backlight Keypad Access Security System |

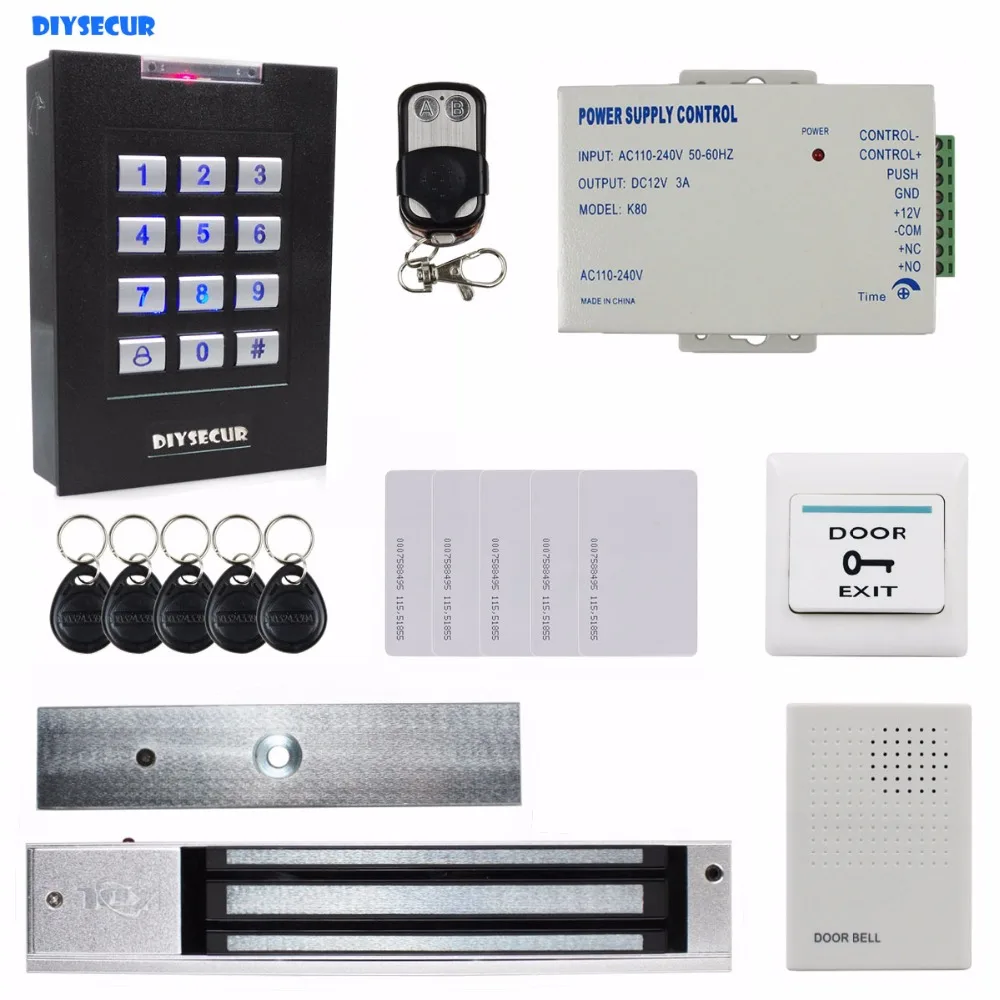

DIY Complete Kit 125KHz RFID Access Control System for Home / Office Use

Access Controller + Power Supply + Magnetic Lock + 10 ID Card/Keyfob + Exit Button

+ Remote Control + Door Bell

Full Kit Set ! Save More, Enjoy More !!

Why use access control ?

Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.

Access Controller:

This is a high-quality RFID ID card reader Access Control keypad, it has a high performance in the Door Access Control fields! Now, it's time to update your home/office security!

• Support 1000 standard users.
• High quality and high security.
• Classical appearance with useful function.
• Sensitively and response quickly.
• Design for Home, Office and Factory.
• Support card password, card plus password & password plus card.

Specifications:

• power: DC12V+10%; 1.2A
• Lock Relay: 12VDC/2A
• Working Temperature: 0C~45 C
• Storage Temperature: -10C~55C
• Working Relative Humidity: 40%~90%RH
• Storage Relative Humidity: 20%~90%RH
• User Capacity: 1000
• Frequency: 125KHz or 13.56Mhz
• Card Type: EM card
• Read range EM: 5-15cm;
• Other Connections: Lock, exit button, bell, door sensor, alarm

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

• Can reduce the load of access controller, save wiring to reduce the hidden trouble
• Set NC / NO outputs, can control various types of electric locks
• Based delay control circuit, lock time can be in 0-15 seconds
• The circuit board has remote control port.

Specification:

• Input Voltage: AC 1 10~240V 50~60Hz
• Output Voltage: DC 12V 3A
• Outer Dimensions: 103 x 68 x 33mm

280kg 600lb Magnetic Lock:

It is a High-performance 280kg Holding Force electric magnetic lock which suits for many access control system. This electric lock can meet your need perfectly.

• NC Mode - (Locked while supplied with power) Fail Safe Mode
• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Doorr, Fireproof Door, etc.
• Safety function: Built-in voltage spike suppressor
• Anti-Residual Magnesium Designed

• Voltage: 12V DC
• Application: wood, iron doors
• Faceplate dimensions: 180 x 38 x 11mm
• Main body dimensions: 250 x 48 x 27mm
• Pack includes: electric magnetic lock, installation diagrams
• Construction: stainless steel.

125KHz RFID Cards / Keyfobs :

These are 10pcs 125KHz RFID Proximity Keyfobs / ID cards, they can work with the product which has 125Khz RFID card reader.

• Water resistant
• Detecting distance: 3-10cm
• Operation frequency: 125Khz
• Each comes with Key ring included
• Compatible with all RFID card reader to gain access
• Each token pre-programmed with unique ID which is printed on it.

Exit Button :

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

• Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc

Remote Control:

This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:

Doorbell:

This is a dedicated wired doorbell for access control system, sound clear loud, soft, simple and convenient to installation, do not need to install batteries, directly connect the 12V power supply, When guests visit as long as press the door doorbell button and it will ring.
