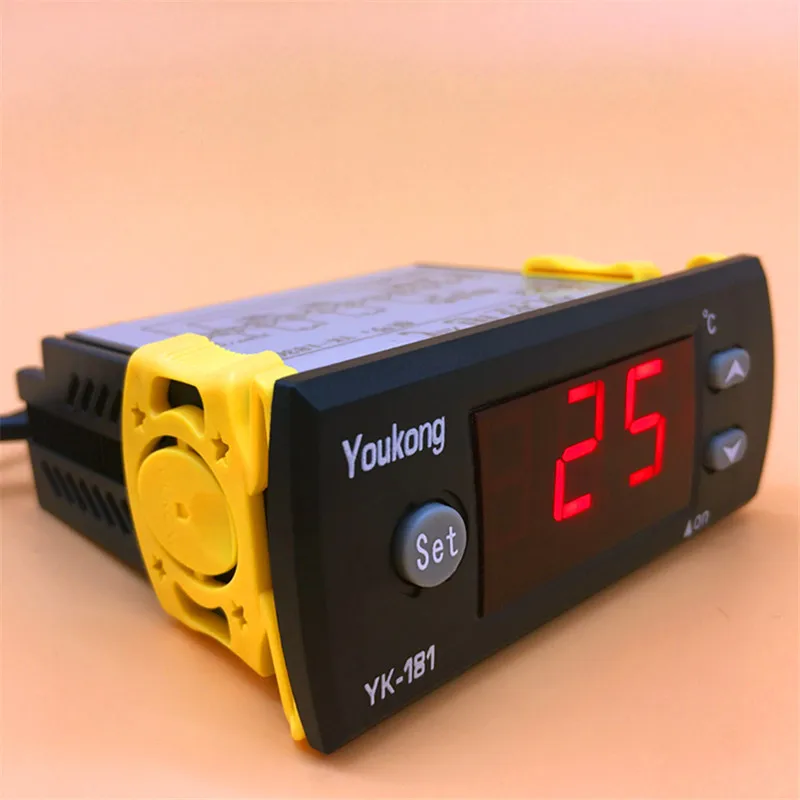

thermometer controller refrigeration keylock , temp correction ,cool&heat ,beverage cabinet freezer seafood machine controller

  Function：:ction

u Cooling : if temperature≥setting temp. + hysteresis temp.,load relay switch on.  Cooling  off: if temperature≤setting temp., load relay switch off.

u Heating: if temperature ≤ setting temperature-hysteresis and reach the relay time, load relay on;

Heating off: if temperature≥setting temperature, load relay off.

u High temperature alarm: if temperature of probe was greater than C1, “HHH”display and alarm sound. Press any button to cancel sound, but display continue.

u Low temperature alarm: if temperature of probe was less than C2, “LLL” display and alarm sound. Press any button to cancel sound, but display continue.

u Alarm time delay: if  C3≠0, press C3 setting alarm time value.

u When the probe temperature short circuit or is greater than 80C, or probe temperature open circuit or less than low temperature, “E1” display.

u Tips: set the cooling and heating switch in C/H menu, C for cooling and D for heating.

Specifications:

1.Working voltage: AC110V± 10%50HZ/60HZ

2.Output load:30A/220V/AC

(Can be applied directly to the half of the compressor)

1.Power consumption:≤3W

2.Working environment:-10C~50C,RH≤90%

3.Display/control range:-45C~80C

4.Resolution:1C,accurancy:±1C

5.Input signal:one channel temperature meaduring sensor, 10Kx2Meter

6.Machine size:76(W) ×36(H) ×76(D)

7.Hole size:71(W) ×29(D)

​

Packaging & Shipping

  About U-Control   ：

         We're the manufacturer and has been customizing digital thermometer and temperature controller

for heating and refrigeration equipment manufacturers since 2004.

        Quality is our culture,The products are  CE, CQC , ISO9001:2000 and RoHS approved.

        Technical supply free, one year guarantee and whole life long maintenance.
