Tarot 450 PRO V2 TL20006 Flybarless  has Silver and Black(rotor head and tail) version available,both of them looks pretty, we will ship at random if there is no special requirements.

Tarot 450 PRO V2  Silver version

Tarot 450 PRO V2  Black Version

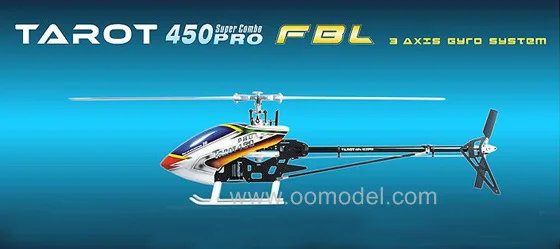

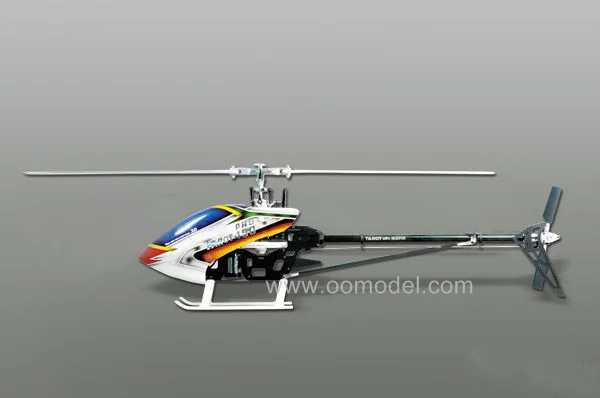

Tarot 450 Pro V2 Overview

    Newly designed head block with high rigidity and stability.
    Single piece integrated design of main bearing block and servo mount.
    Single piece integrated design of anti-rotation guide and gyro mount.
    Single piece integrated landing gear.
    Highly stable flybar control system.
    High precision bearing mixing arms.
    Newly designed high resolution swashplate.
    Single piece battery mount with integrated canopy mount designed to bring CG closer to disk plane.
    Highly rigid frame with single piece carbon side and bottom plates.
    Highly efficient shaft driven tail design.
    Weighted tail rotor blade grips to repel centripetal forces.
    Straight-up in-frame rudder servo mount for improved geometry.
    Newly designed aerodynamic canopy.
    Newly designed high torque motor.
    Newly designed high strength main blade grips.

Tarot 450 Pro V2 New Features:

• Newly improved low wind resistance specialized flybarless rotor head assembly, with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance.
• Improved side frame design, with dedicated ZYX mounting location. 3GX can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
• Unibody main shaft and servo mount, simplifying servo replacement and improving ease of maintenance.
• Longer battery mounting plate with integrated ESC mount. Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG.
• High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
• Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
• Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
• New aerodynamic canopy with paint scheme resembling the T-Rex 600E Pro, perfectly matched to the helicopter frame to create aesthetic perfection.
• Users must have a certain concept of security to operate the R/C helicopters.
  Be sure to read and comply with related safety notes of instruction manual before flying.

Tarot 450 Pro V2 Specifications:

1.Length:638 millimeter

2.Height:218 millimeter

3.Main Rotor Diameter:710 millimeter

4.Tail Rotor Diameter:158 millimeter

5.Motor Drive Gea:14T

6.Main Drive Gear:150T

7.Autorotation Tail Drive Gear:106T

8.Tail Drive Gear:25T

Tarot 450 Pro V2 Colorful box:

Silver

Black

High precision main rotor assembly

Focus Shot1 (Newly improved low wind resistance specialized flybarless rotor head assembly)

Focus Shot2 (Grommet is made of nylon with M_oS₂.It Features wear-resisting and smooth for quick movement of swashplate. It improve control precision and lifetime.

Focus Shot3 (Integrated battery / ESC mount, allowing adjustment based on battery dimension for optimal CG of the helicopter)

Focus Shot4 (Newly designed gyro mount)

Focus Shot5 (Newly designed main frame set to simplify servos installation and maintenance)

Focus Shot6 (Highly rigid frame with single piece carbon side and

Focus Shot7 (Vertical rudder servo mount design moving the CG closer to center)

Focus Shot8 (Newly improved side frame plate with special ZYX mounting locations. It can be mounted inside the frame, or behind the antirotation guide for better wire management and cleaner look )

Focus Shot9 (Unique opposing weighted tail blade grips effectively increase rudder and gyro performance)

Focus Shot10 (Single piece integrated landing gear)

Focus Shot11 (Fiberglass painted canopy) color maybe different

Tarot 450 PRO V2 Package Includes:

•
   Tarot 450 Pro V2 Flybarless Kit TL20006*

   Carbon blade * 1set

Color: Silver/Black canopy color maybe different from the pictures

Note: All Tarot helicopters are Disassembled, but it comes with detailed installation instructions. Helicopters can only be shipped by express.
