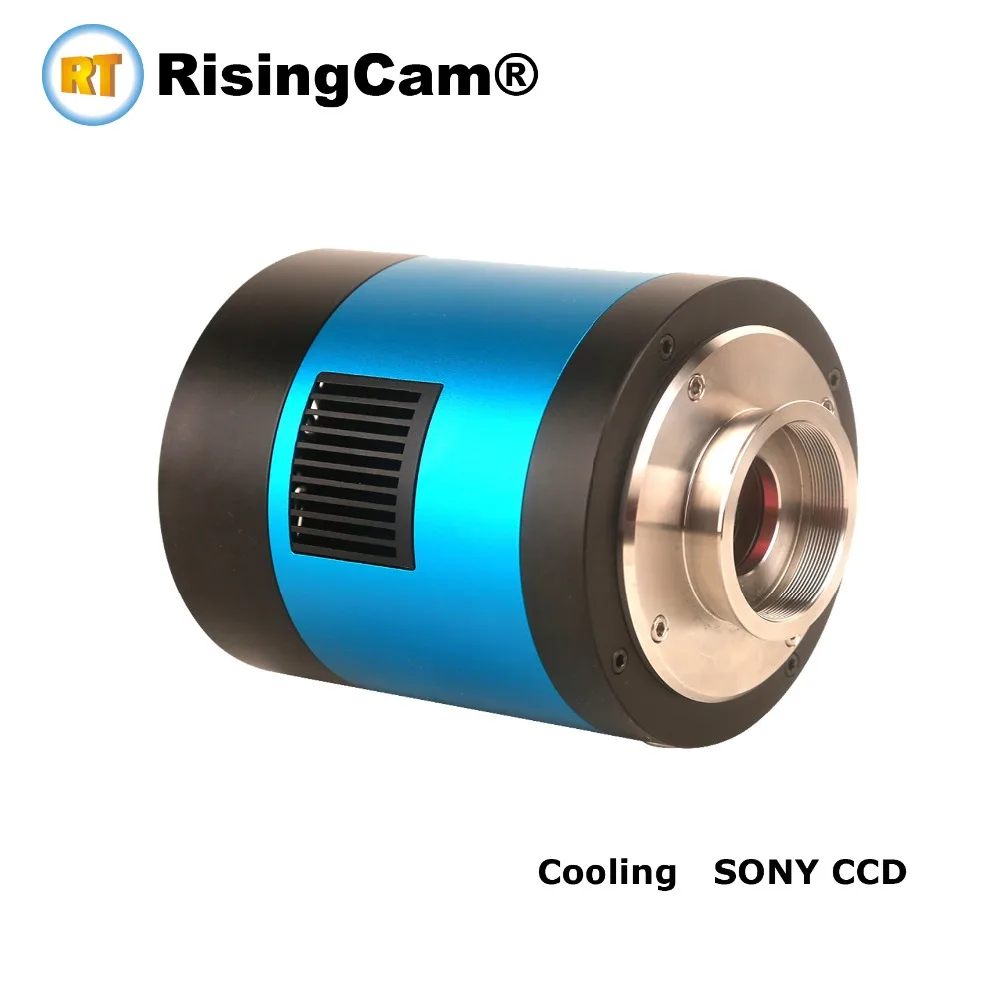

1.4MP USB3.0 long time exposure astronomic telecsope cooling CCD Camera with SONY sensor

Model:SC-ATR3

Feature

Standard 2 Inch+M42x0.75 mount camera with SONY ExView HAD CCD sensor from 1.4M ~ 6M;

Two-stage TE-cooling with controllable electric fan;

Working temperature can be regulated to specified temperature;

Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

Up to 45 degrees temperature drop ensures high quality image with low noise;

Up to 1 hour long time exposure;

USB3.0 5Gbit/second interface ensuring high speed data transmission;

Ultra-FineTM color engine with perfect color reproduction capability;

With advanced video & image processing application RisingSky;

Instruction

ATR3CCD is an Astromony Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. RisingTech uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.

ATR3CCD comes with advanced video & image processing application RisingSky;

The ATR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

Protect window with double-side AR coating glass  (optioal: IR-Cut Filter)

Sony Exview HAD CCD

Excellent Sensitivity Including the Near IR
Excellent Image Quality
Exceptional Dynamic Range
Minimal Motion Blur For Sharp images at Higher Shutter Speeds

Sony EXview HAD CCD technology increases sensitivity and compared to other CCD, offers improved quantum efficiency, reduced smear, and increased sensitivity, including into the near infrared.

The EXview HAD CCD II is an evolved version of the well known EXview HAD CCD technology further increasing sensitivity as well as extending higher sensitivity into the near-IR range.

Specification

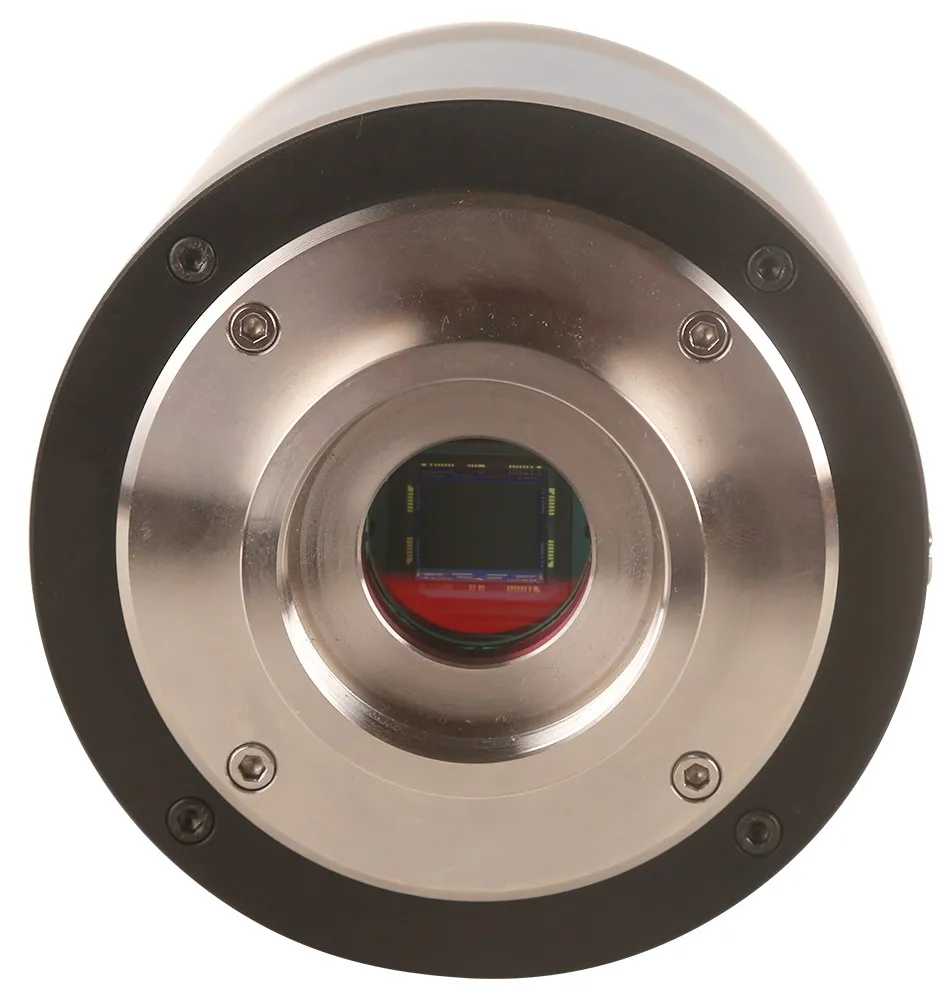

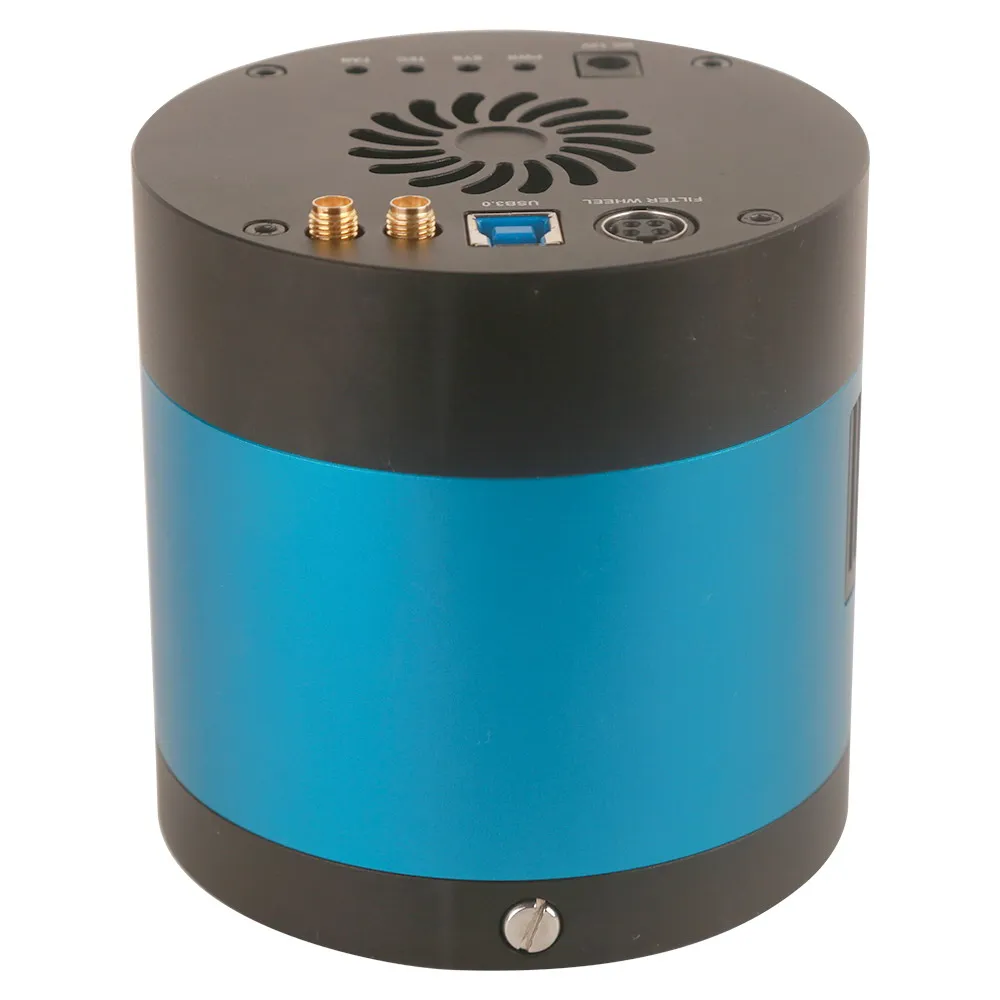

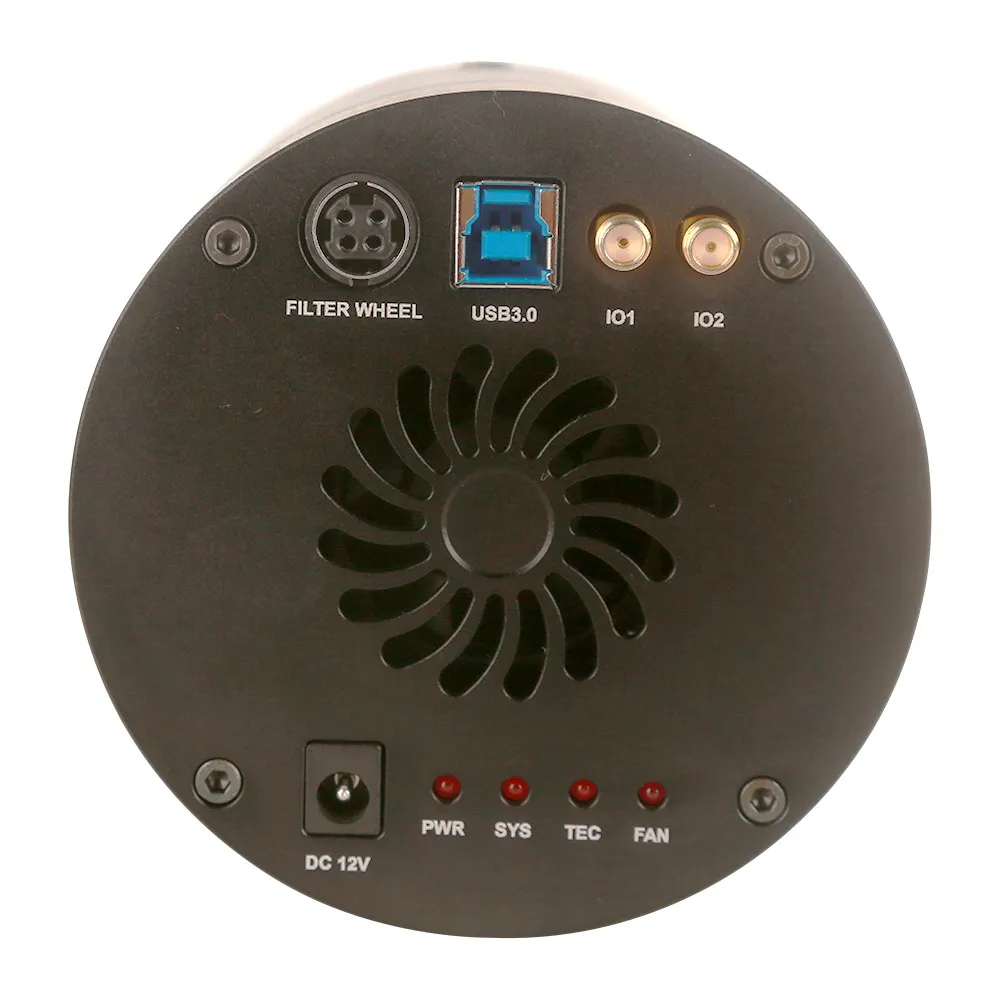

Detailed Picture

Dimensions

The ATR3CCD Series USB3.0 CCD  Camerabody, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality AR coating glass to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

The Professional Software

RisingSky is Professional software for Astronomical applications, which has multi-functions such as

Camera parameter adjustment, capture images&video, modify image, process image etc.

it can provide many tools choice for user.

RisingSky Support Windows XP/7/8/10 system

RisingSky for Windows system

RisingTech also provide MAC version and Linux version RisingView free charges for buyer

MAC version compiler environment 10.7-10.11 MAC OS

Linux version compiler environment x64 Ubuntu12.04 with kernel 3.13.0-31-generic & x86 Ubuntu10.04 with kernel 2.6.32-70-generic


(Note:  RisingView for MAC and Linux are Simple Version without Image Process function)

RisingView for MAC system

RisingView for Linux system

Sun photo

Planet photo

Deep Sky photo

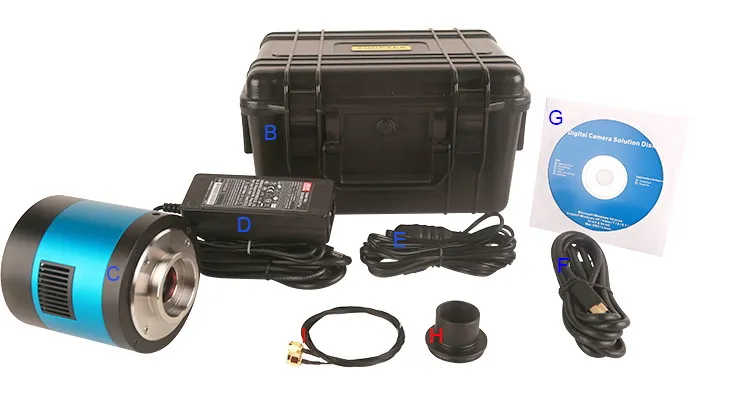

Packing
