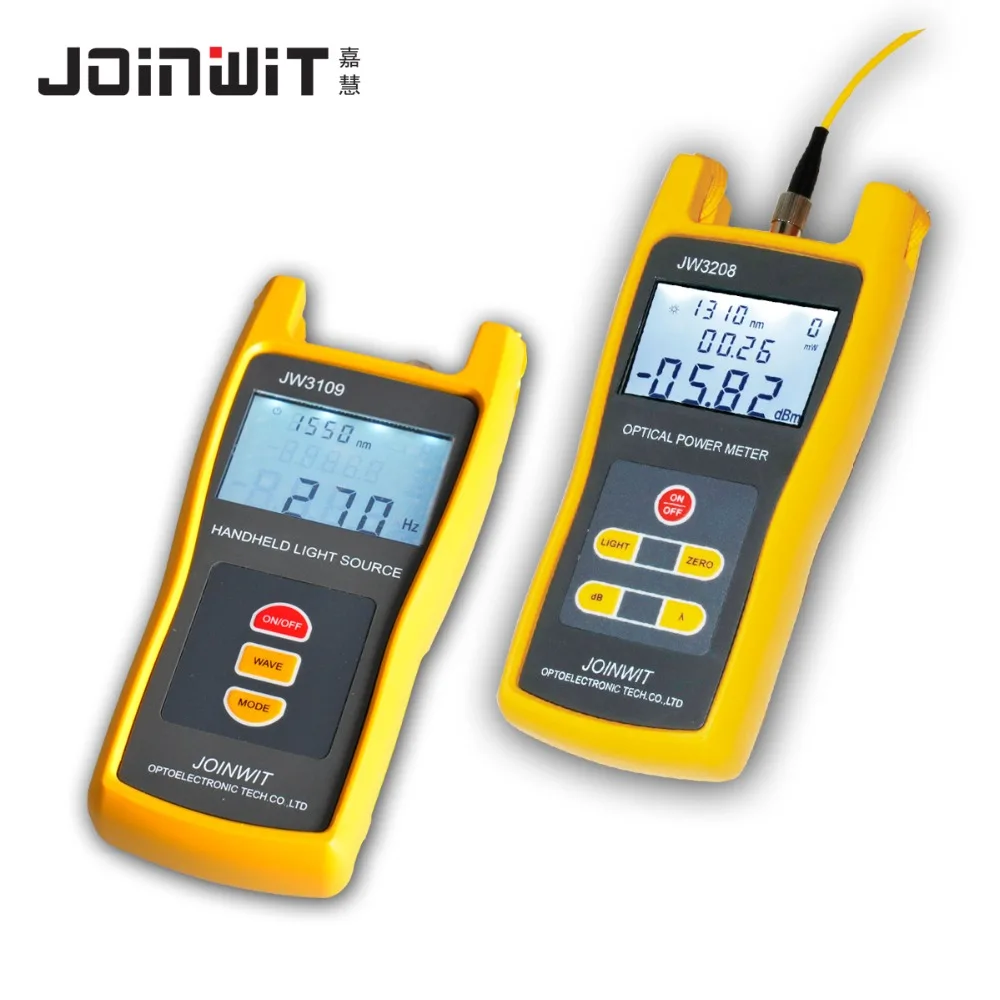

Fiber Optical Multimeter -70~+6dBm JW3208A High Precision Power Meter and JW3109 Light Source 1310/1550nm | Мобильные телефоны и
История изменения цены
*Текущая стоимость 8 057,35 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 10232.70 руб. | 10437.97 руб. | 10334.5 руб. |
| Jan-19-2026 | 8299.91 руб. | 8465.19 руб. | 8382 руб. |
| Dec-19-2025 | 10071.85 руб. | 10272.94 руб. | 10171.5 руб. |
| Nov-19-2025 | 9991.86 руб. | 10191.23 руб. | 10091 руб. |
| Oct-19-2025 | 7976.90 руб. | 8136.8 руб. | 8056 руб. |
| Sep-19-2025 | 9830.72 руб. | 10027.6 руб. | 9928.5 руб. |
| Aug-19-2025 | 9749.28 руб. | 9944.84 руб. | 9846.5 руб. |
| Jul-19-2025 | 9668.14 руб. | 9861.71 руб. | 9764.5 руб. |
Описание товара

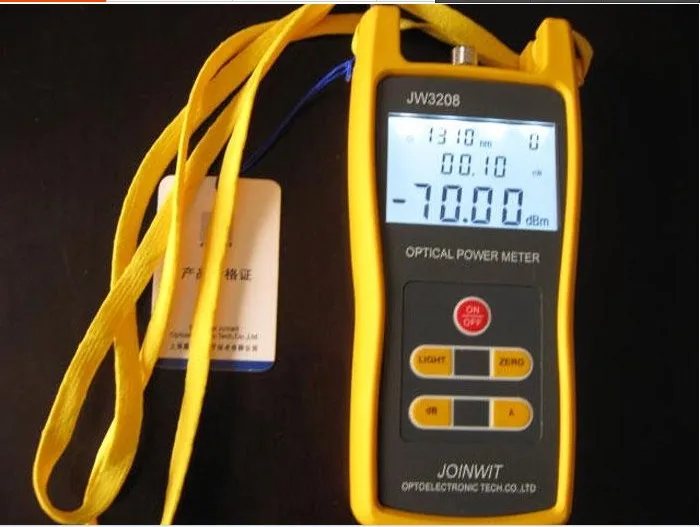

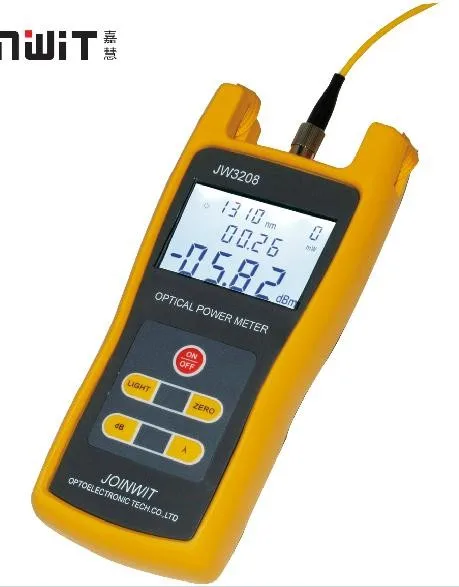

JW3208 Optical Power Meter
Product Introduction
JW3208 can from calibration type optical power meter is for handheld installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient portable test instrument. With clever appearance, can choose to switch back light display, automatic shutdown function, super wide optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design
Specifications
| Type |
JW3208A |
JW3208C |
| Wavelength(nm) |
800~1700nm |
|
| Detector |
InGaAs |
|
| Measurement Range (dBm) |
-70~+3 |
-50~+26 |
| Uncertainty |
±5% |
|
| Calibrated Wavelength(nm) |
850,980,1300,1310,1490,1550 |
|
| Resolution(dB) |
0.01 |
|
| Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
| Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|
| Battery Operating Time |
240 h with 1.5V Battery(3) |
|
| Operating Temperature(°C) |
-10 ~ +60 |
|
| Storage Temperature(°C) |
-25 ~ +70 |
|
| Relative Humidity |
0 to 95% (non-condensing) |
|
| Dimension(mm) |
175x82x33 |
|
| Weight(g) |
310 |
|

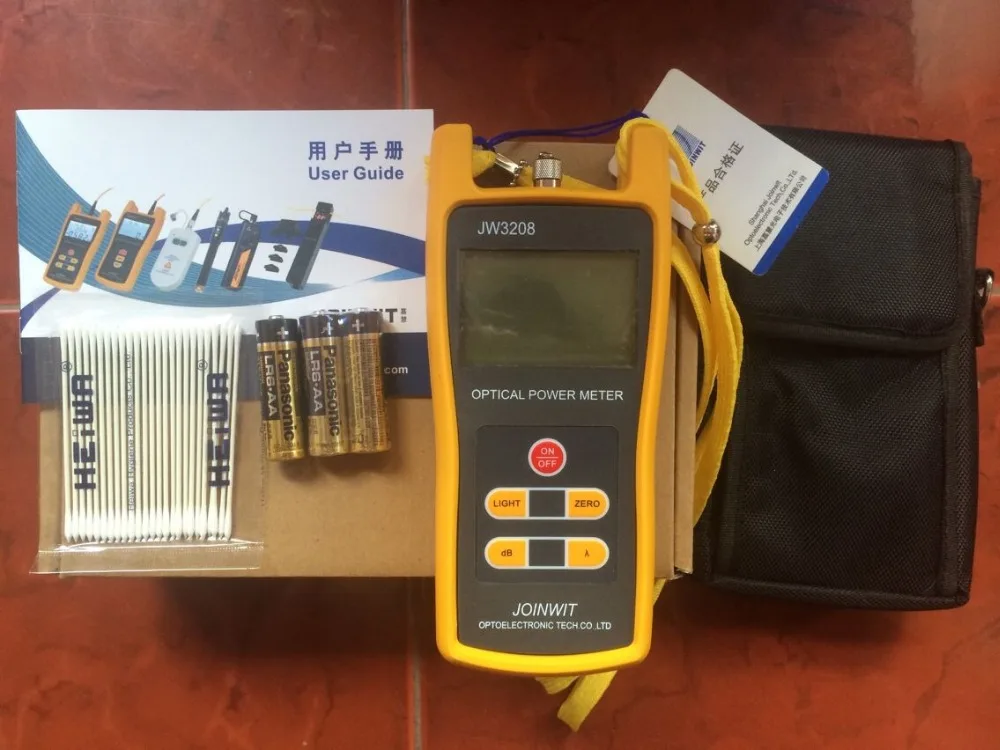

Standard Packages
| MODEL |
INCLUDES |
| All JW3208 Models |
JW3208 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. |

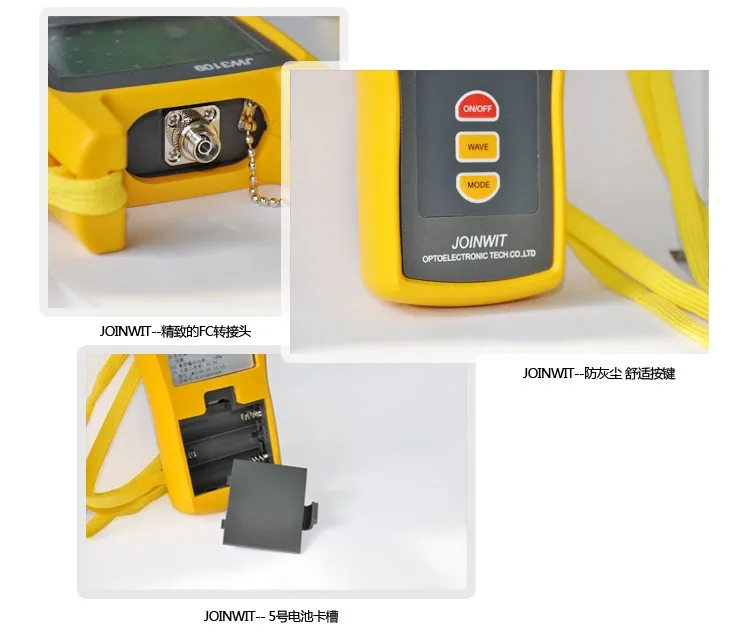

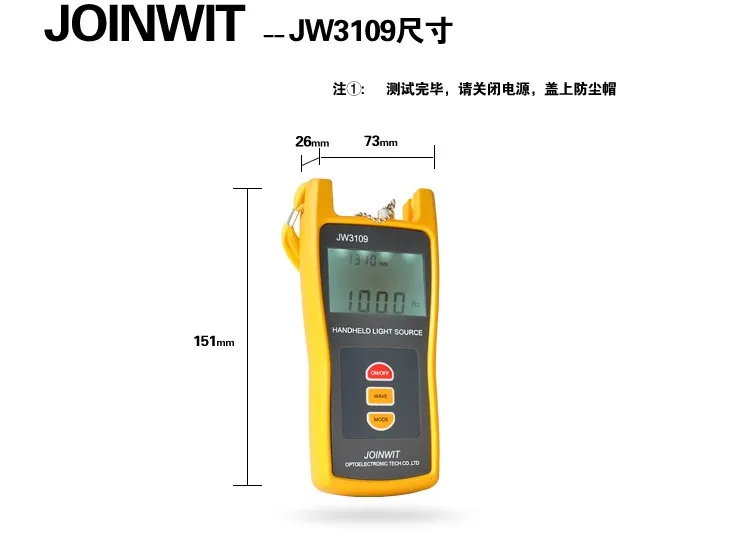

JW3109 Handheld Optical Light Source
JW3109 Handheld Optical Light Source
JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
l Provides 1~4 output wavelengths which can be optional according to customer’s needs
l CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
l High stability of the output power
l Stable output wavelength
l Backlight LCD display supports night operation
l Compact size and decent appearance
l Large LCD, easy operation
l Alternative 10 minutes Auto-off function conserving battery life
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications
| Type |
JW3109 |
|||
| Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
| Emitter Type |
FP-LD,LED or others please specify |
|||
| Typical Output Power (dBm) |
0 |
-7dBm for LD, -20dBm for LED |
||
| Spectral Width(nm) |
1. ≤10 |
|||
| Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||
| Modulation Frequencies |
CW,2Hz |
CW,270Hz,1KHz,2KHz |
||

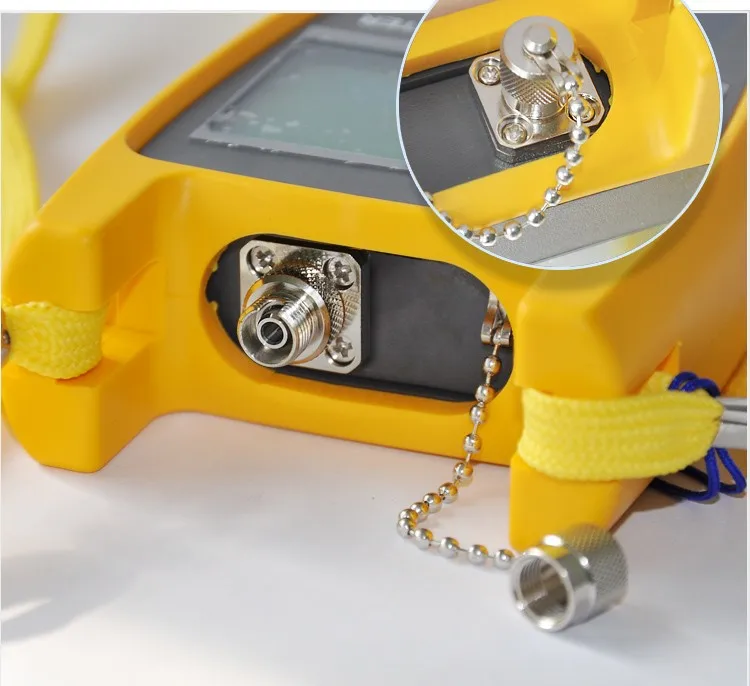

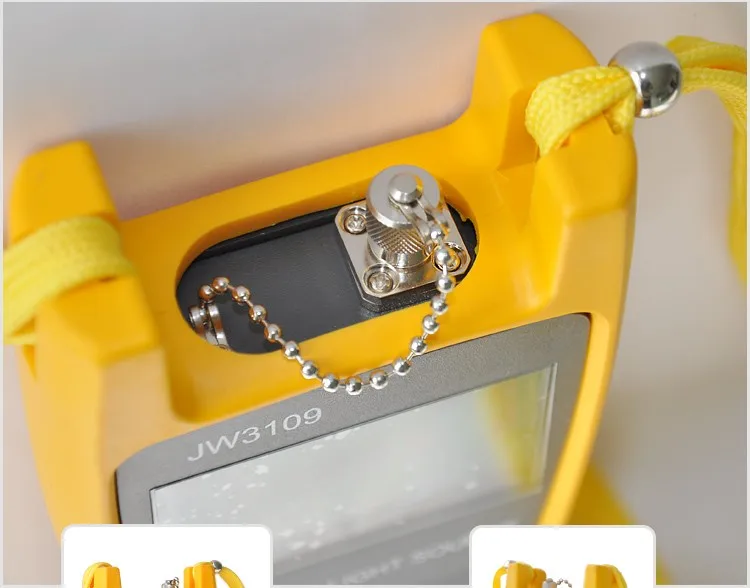

| Optical Connector |
FC/ universal adaptor |
FC/PC |
||
| Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|||
| Battery Operating Time(hour) |
45 |
|||
| Operating Temperature(degree) |
-10~+60 |
|||
| Storage Temperature(Degree) |
-25~+70 |
|||
| Dimension(mm) |
175x82x33 |
|||
| Weight (g) |
295 |
|||
| Joinwit Recommendation |
||||
| JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. |
||||

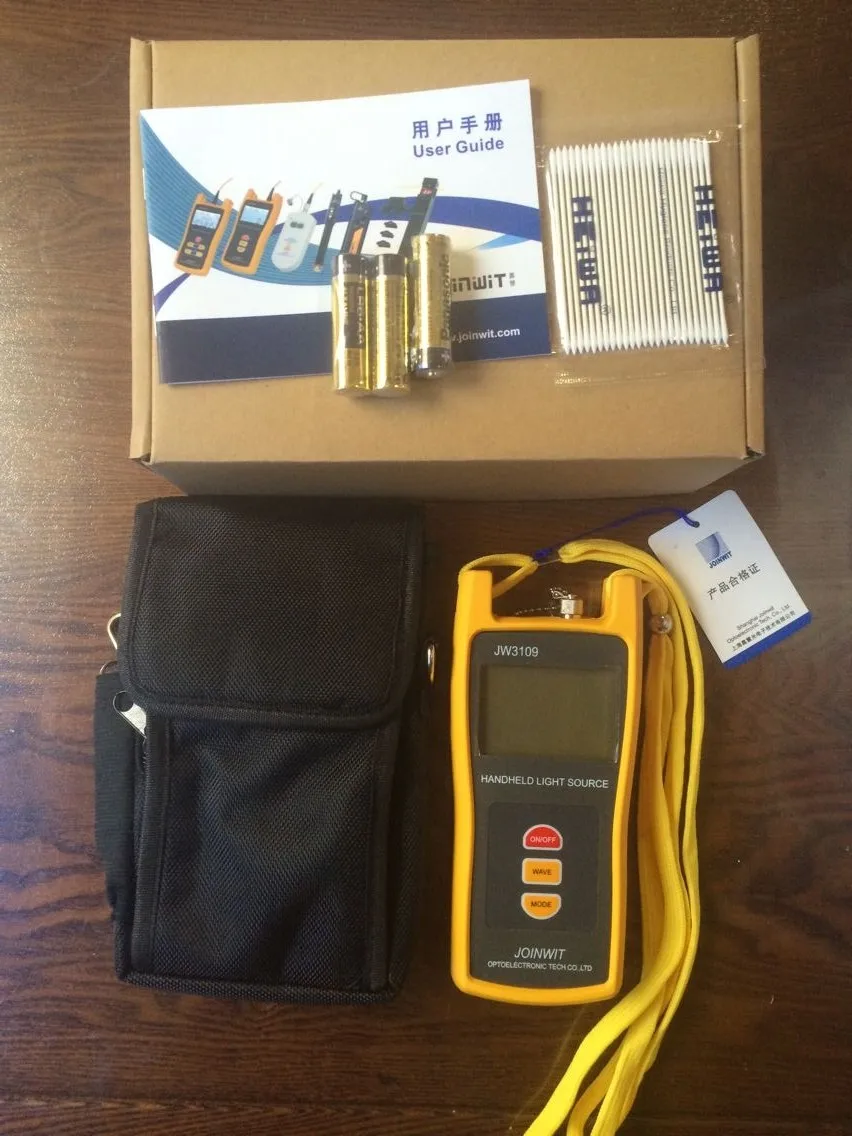

Standard Packages
| MODEL |
INCLUDES |
| All JW3109 Models |
JW3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case. |
