Описание товара
IEC60695-2-10 Glow wire flammability index test apparatus
Product Description
IEC60695-2-10 Glow wire flammability index test apparatus
(Please send me message for shipping detail)
Instrument

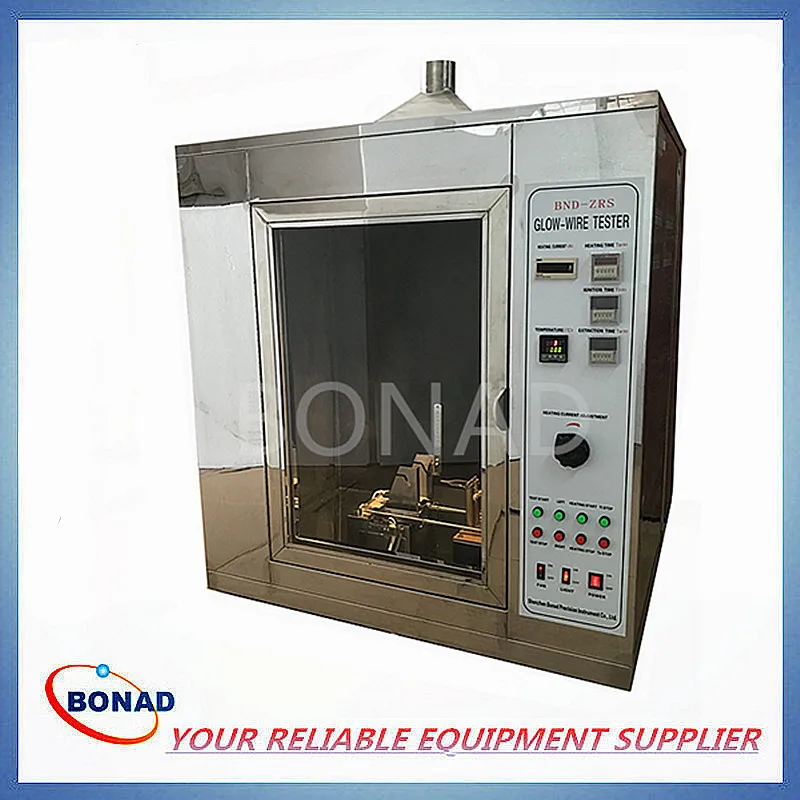

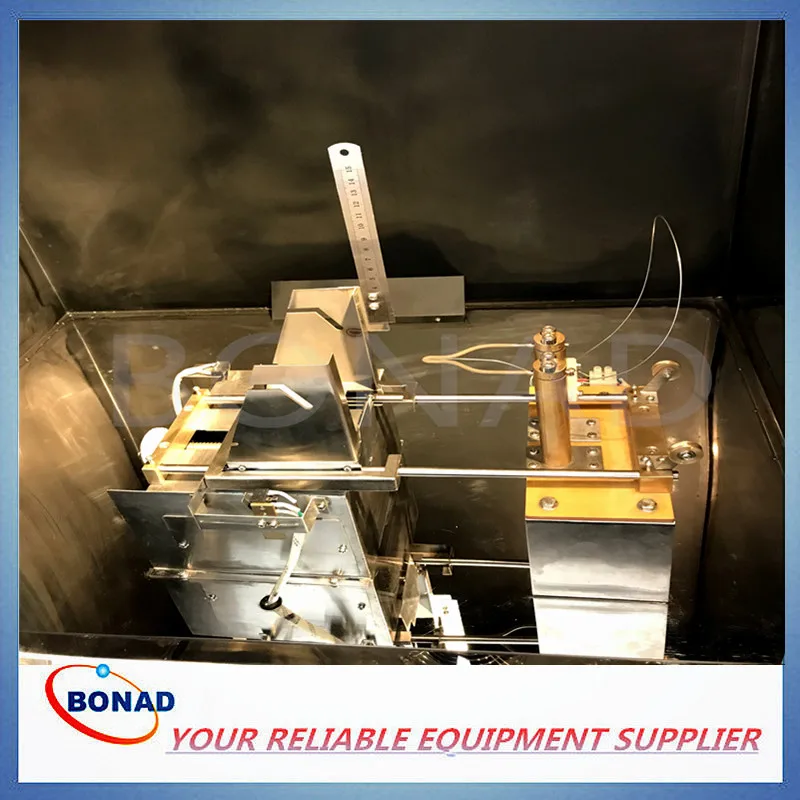

The glow wire test chamber conforms to IEC60695-2-10,UL 746A ,GB/T5169.10,GB4706.1, use no-flame ignition simulate the test. Heating up the glow wire loop, which material and shape is (Ni80/Cr20) and(Φ4 mm nickel chrome)by large current to the testing temperature 550C ~ 960C for 1min, then to heat the sample with 1N force for 30sec. To judge the fire fatalness of the electrical and electronic equipment or product by to see whether the sample is ignited or how long is the burning time. The tester can test the ignitability, flammability , GWFI and GWIT of solid insulated and combustible material.
The glow wire test chamber is widely used for testing the electrical and electronic product like lighting equipment, low-voltage apparatus and electrotechnical instrument.
Specification:
1, The glow-wire temperature: 550 ~ 1000C adjustable, when 500 ~ 750C ±2C, when 750 ~ 1000C ± 5C
2, Burning time: 0-999.9s ± 0.1s adjustable (usually selected as the 30s)
3, Ignition time: 0-999.9s ± 0.1s, auto record, manual pause
4, Off Time: 0-999.9s ± 0.1s, auto record, manual pause
5, Thermocouple: K type thermocouples Φ0.5mm
6, The glow-wire: Φ4 mm nickel chromium wire.
7, Hot depth: 7mm ± 0.5mm (1N ± 0.2N maintaining the pressure of hot into the sample)
8, Test speed: 14mm /s.
9, The testing process: test procedures automatic control, independent ventilation
10, The reference standard: GB / T5169.10, IEC60695, UL746A
11, Studio Volume: 0.5 m3
12, The device outside dimensions: 1000mm wide × 650mm deep × 1300mm high
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
NOTE:
This product is not free shipping product!!
Please send me message to confirm the shipping cost to your country.
The finally price will be the price above and the shipping cost to your country!
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
