Home Security Camera System Wireless WIFI IP GSM Smart Alarm Android APP Control PIR Motion Detector Window Sensor W11K | Безопасность и

Home Security Camera System Wireless WIFI IP GSM Smart Alarm Android APP Control PIR Motion Detector Window Sensor W11K | Безопасность и

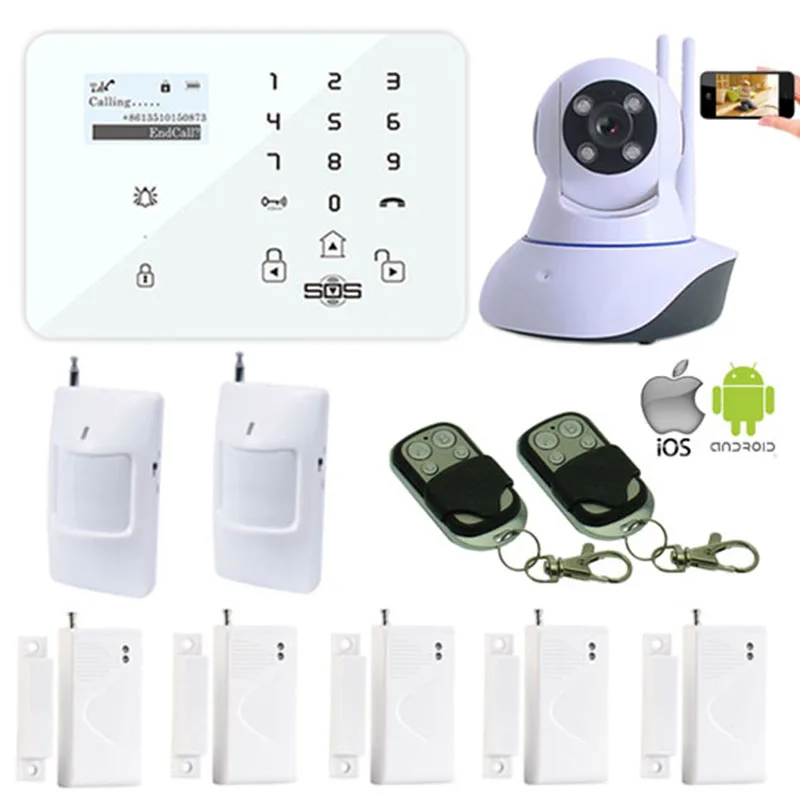

Home Security Camera System Wireless WIFI IP Camera GSM Smart Alarm Android APP

Control PIR Motion Detector Window Sensor W11K

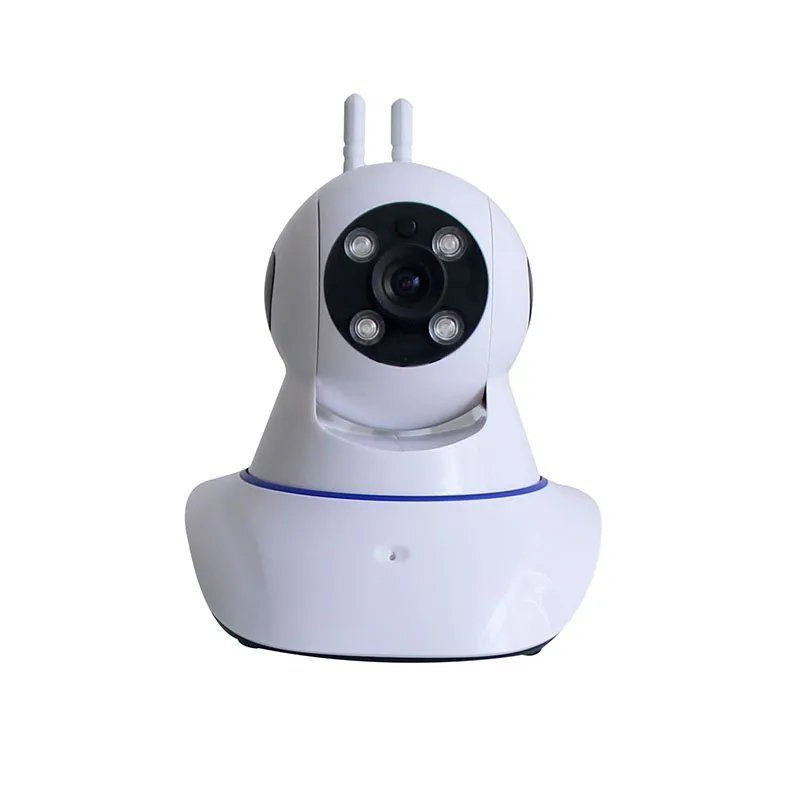

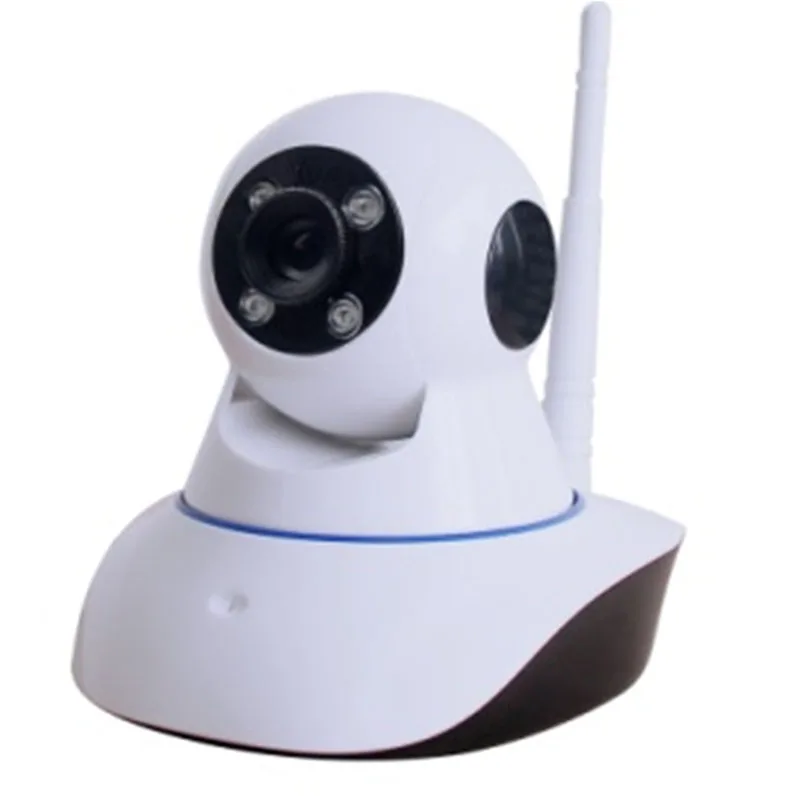

Wifi Camera Features

1. Support mobile video. The Wireless WiFi Camera Alarm support mobile monitoring by installing client software.

The monitoring image quality can be adjusted by mobile network speed.

2. Two-way voice intercom. Remoting PC and mobile can talkback with this Wireless WiFi Camera Alarm. Monitoring voice and video.

3. Support PTZ control. Built-in RS485. The camera can monitoring left and right 355 degrees and up and down 90 degrees.

4. The wireless camera alarm has it own ID number. Every camera has wrote a ID code in its bottom. When doing

remote monitoring, just need use this ID code, no need other domain.

5. Support browse with several windows. Remote IE (Win7 IE 360 Firebox Chrome Internet Explorer) checking software,

support browse with 16 windows at the same time.

6. Support English, Spanish, Dutch, French, Italian, Polski, Chinese.

7. Support set frame rate. It can set 1-25 frames per second as image transfer rate.

8. Support infrared night view. 11pcs LED with 0.3 low LUX night viewing up to 10m.

9. Support motion detect. It can control sending email and FTP uploading recording and alarm by sensitivity.

10. Support remote monitoring. If install this WiFi camera alarm in a place, user can monitoring on-site situation at anywhere

and anytime by the camera ID code.

11. Support wireless and real-time alarm. It has 64 wireless zones.

12. Centralized platform to watching. Centralized monitoring software is a professional video monitoring software. It support recording,

display multi camera monitoring screen on one platform at the same time. This software also can control one of the camera monitoring,

changing recording angle.

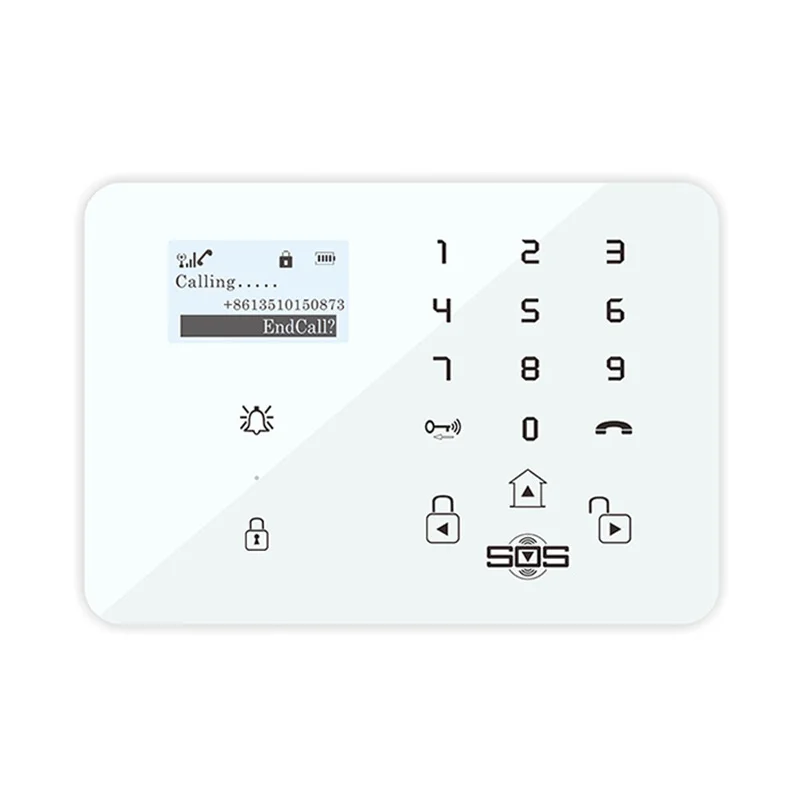

K9 GSM Main Panel  GSM Frequency: Quad band 850/900/1800/1900 MHz Wireless Zones: 95 Radio Frequency: 433.92MHz for sensors, 315MHz for wireless switch (*optional) Wired Zones: 2, NC/NO dry contact Tamper Switch Zone: 1, at back side of panel Digital Output: 1 relay, NC/NO dry contacts, 3A/240VAC, 5A/24VDC Max. Stored Phone No: 9 phone numbers for alarm SMS & call Max. Remote Control: 9 pcs Event Logs: 999 alarm logs, 99 operation logs Internal Audible Alarm: 95dB CMS: KingCenter CMS 01, or Contact ID CMS Supported (GPRS data) Rated Power Supply: 9~24V DC/1A Power Consumption: 12V input Max. 270mA, Standby 30mA SIM Card: Support 3V SIM Card Antenna: 50 Ω SMA Antenna interface Temperature Range: -20~+60 °C Humidity Range: Relative humidity 90% (condensing free) Backup Battery: 3.7V /900 mAH Li-ion rechargeable Enclosure Material: ABS plastic  Exterior Dimension: 18.8*13.1*2.8 cm (7.4*5.1*1.1 inch) Net Weight: 320 g (0.7 lb)                                    Door/Windows Contact Sensor DM-100    Working Voltage: 12VDC Battery Life: about 1 year (counte a time eac day) Wireless Frequency : 433 MHZ Transmission Range: 100m  Working Current (mA): 8-20  Static Current(uA): 3 Size: 71*36*15mm Applications: Doors, windows,etc   PIR Motion Sensor      Operating Voltage: 9V Laminate Battery Detection Range: Vertical angle 60degree Horizonta angl 11  degree, 12m Standby Current: less than 25uA Alarm Current: less than 22mA RF Immunity: >20 V/m 10 - 1000 MHz Sensitivity: >3300V/W Noise(Vp-p): <200mV, (mVp-p)(25°C) Transmitting Freq.: 433.92MHz Transmitting Distance: minimum 100m( in the open area) Temperature Range: -10°C to +50°C Relative Humidity: 90% (25 degress ) Installation Mode: Wall mounted by bracket Installation Height: 2m Housing: High-impact ABS Applications: For indoor use. Corridor, Office, Room, Museum Library, Finance Room, Warehouse, etc.     Remote Controller     RF Frequency:  433.92MHz  Encode Type: Learning Code, PT2240    Battery Type: AlkalineA27 12V    Dimensions  : 5.5CM*3.2CM*1.2cm White paper package:6.2*3.3*1.8cm Gross Weight: 0.04Kg    Package List:  WiFi Camera Alarm W11*1 GSM K9 Main Panel*1 PIR-100A Indoor Motion Detector*2 Door Contact Sensor DM-100*5 Remote Controller RM-03*2 AC/DC Adapter*1 User Manual
