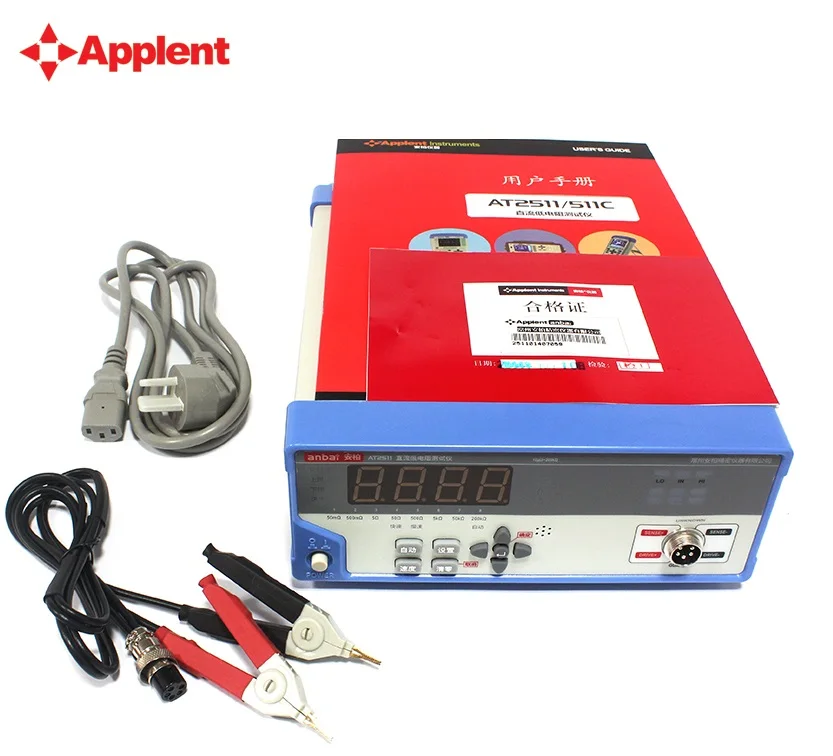

AT2511 10μΩ~200kΩ  Low Ohm Meter   for PCB patterns, Pure resistance

  AT2511 is an economical and practical type of low DC resistance tester, is an upgraded version of the AT511A
  AT2511 relative to the previous generation AT511A, with a wider range of tests: 10μΩ~200kΩ, the maximum display 5000 numbers. While improving the test speed: the fastest up to 10 times / sec and reading to stabilize. Improved range of automatic test circuit, the whole electronic switch designed to switch instantaneously from the highest to the lowest range of the scale


• 0.8 inches big font, highlight LED display
• Automatic test and provide manual range function
• Comparator function
• Short-circuit Zero-Adjust for each range
• Accuracy: 0.2%
• Max Reading: 5000
• Automatic and manual with 8 ranges
• Fast:10 times/second, Slow:3 times/second

Measure string cable diameter coil resistance (such as earphone coil) Measure sensors resistance
Measure protectors resistance
Measure resistance of transformer, inductor, motor, deflection coil winding
Measure all kinds of contact resistance.welding contact resistance and metal defect detection
