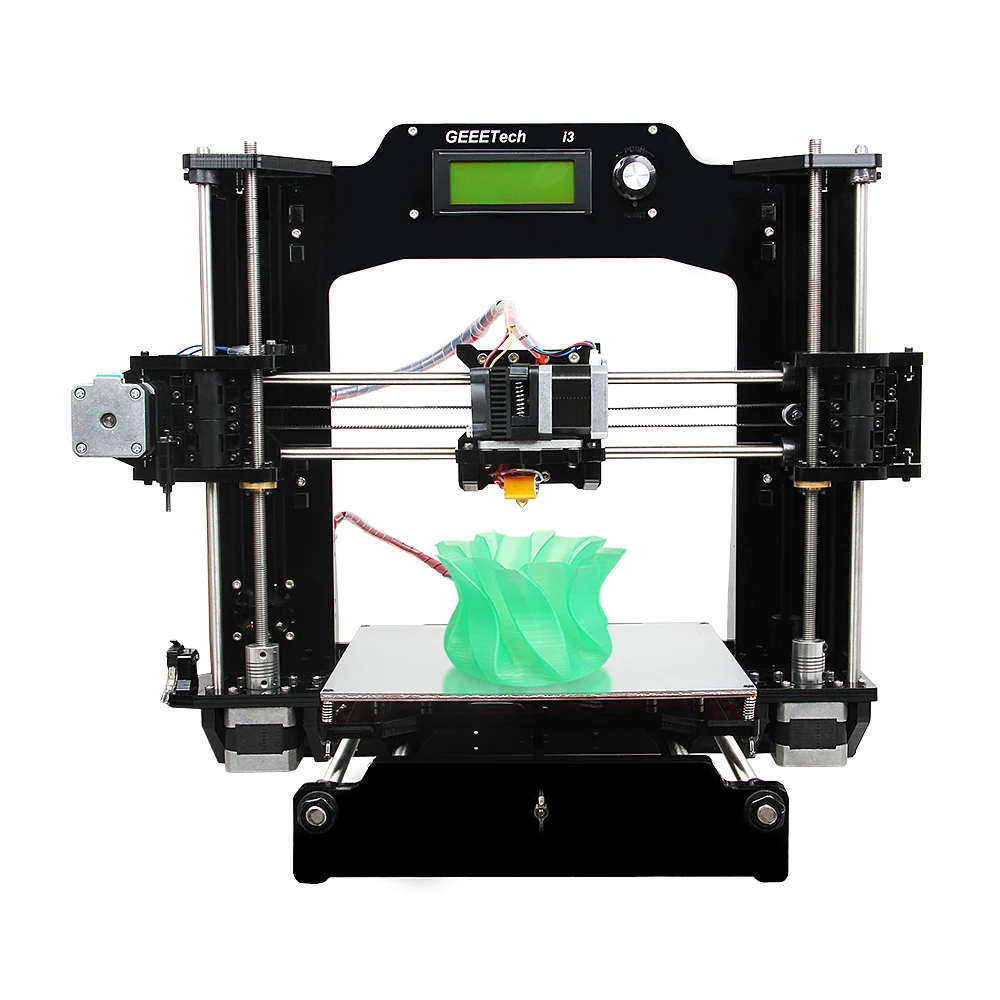

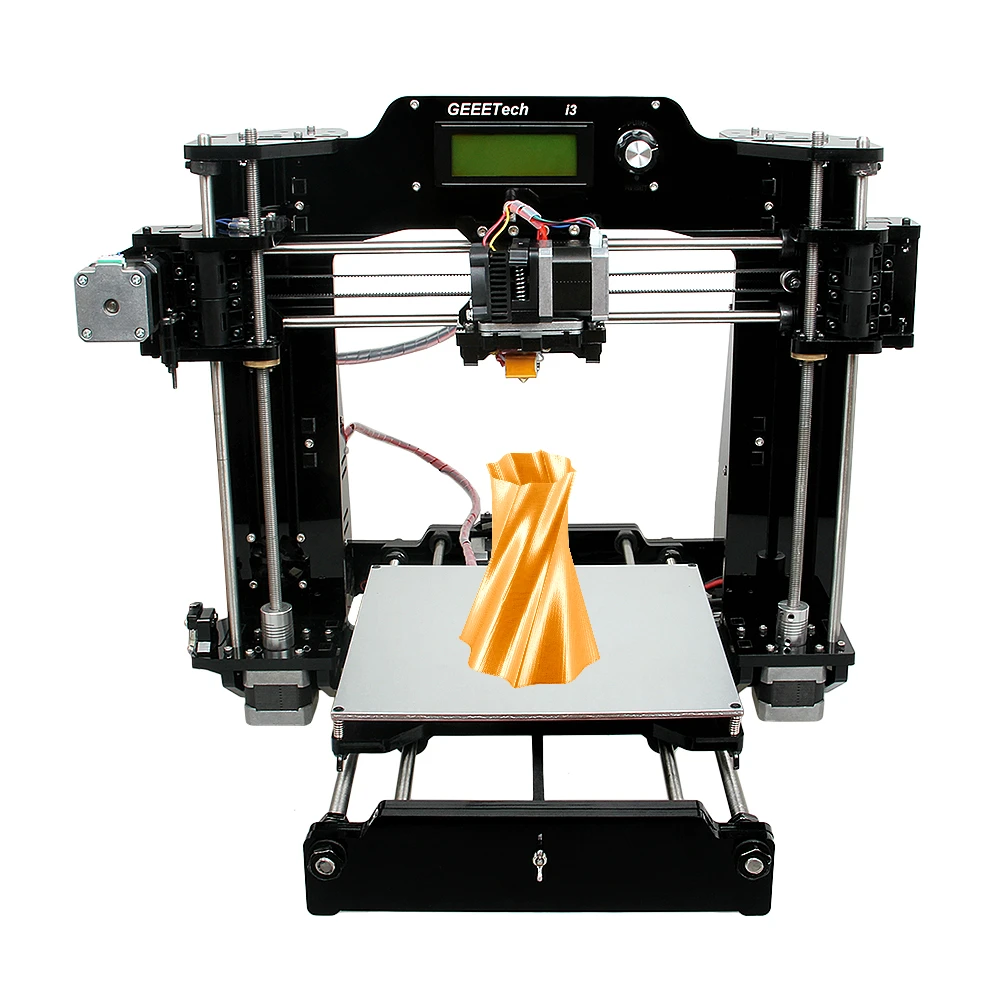

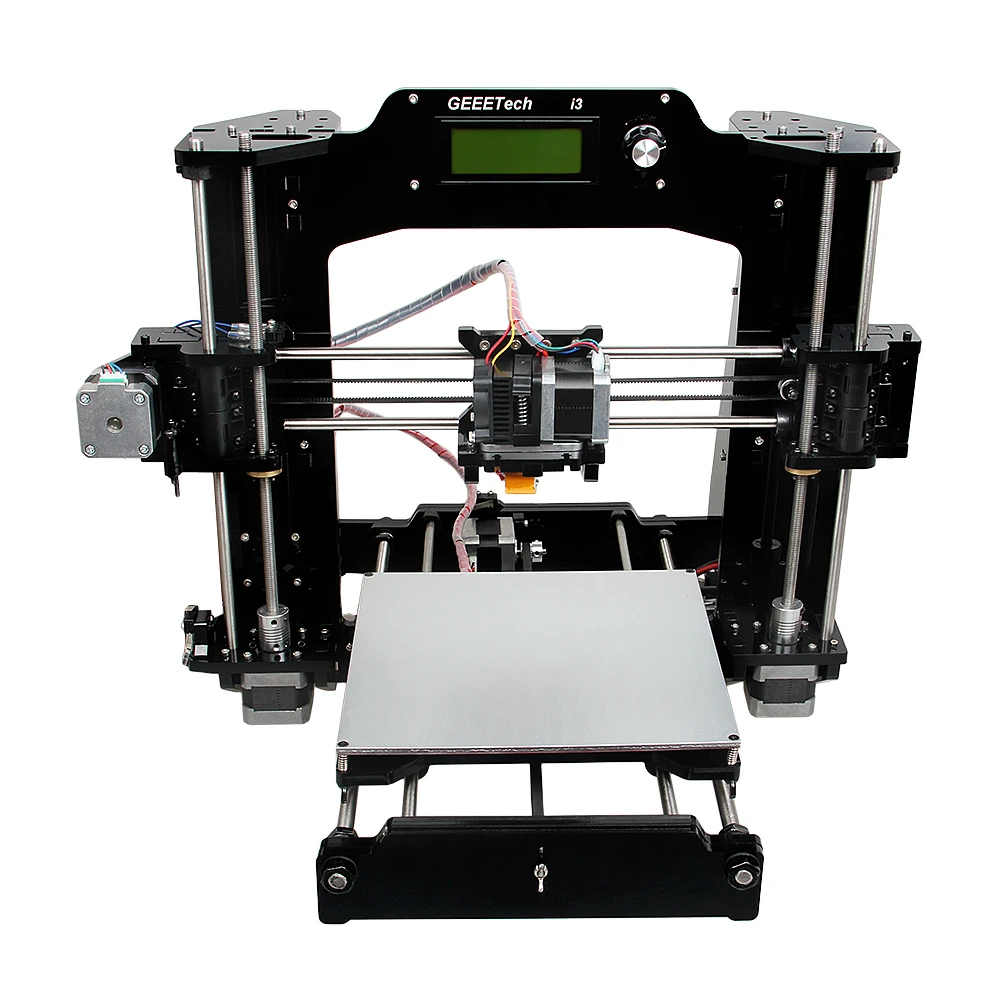

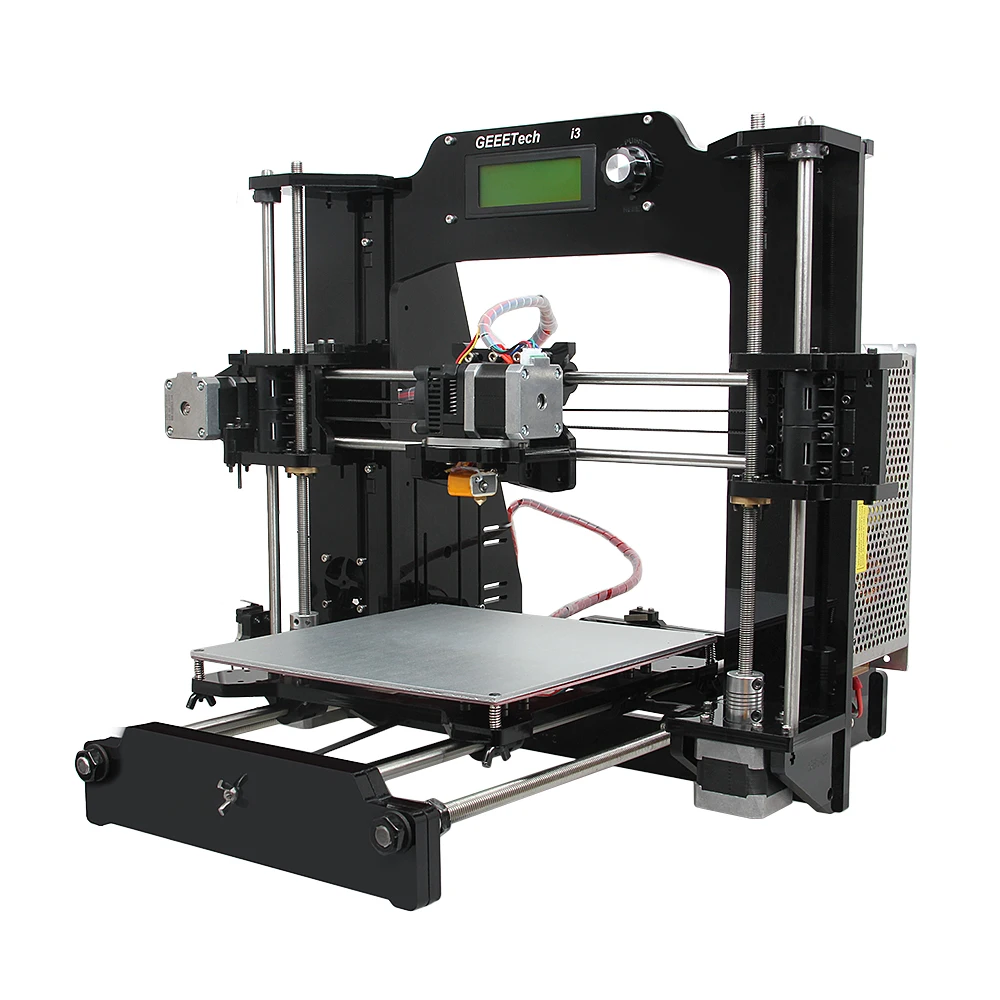

Geeetech Newest 3D Printer Reprap Prusa i3 X DIY Kit Acrylic Frame 5 Materials Support LCD Screen Free

Geeetech Reprap Prusa I3 X is a new member of the prestigious Reprap Prusa I3 family, it was engineered to provide redefined usability, quality, performance and most important, best affordability in desktop 3D printer market.

The Geeetech ReprapPrusa I3 X is made from piano-black laser-cut acrylic frame. To maintain the garage-built feel and the handmade charm, Geeetech Reprap Prusa I3 X is also a DIY kit, which provide you an unforgettable step-by-step learning experience of 3D printer from scratch.

Features:

1. Multiple 3D printing filament supportable: PLA, ABS, Wood-Polymer, Nylon, flexible PLA and PVA.

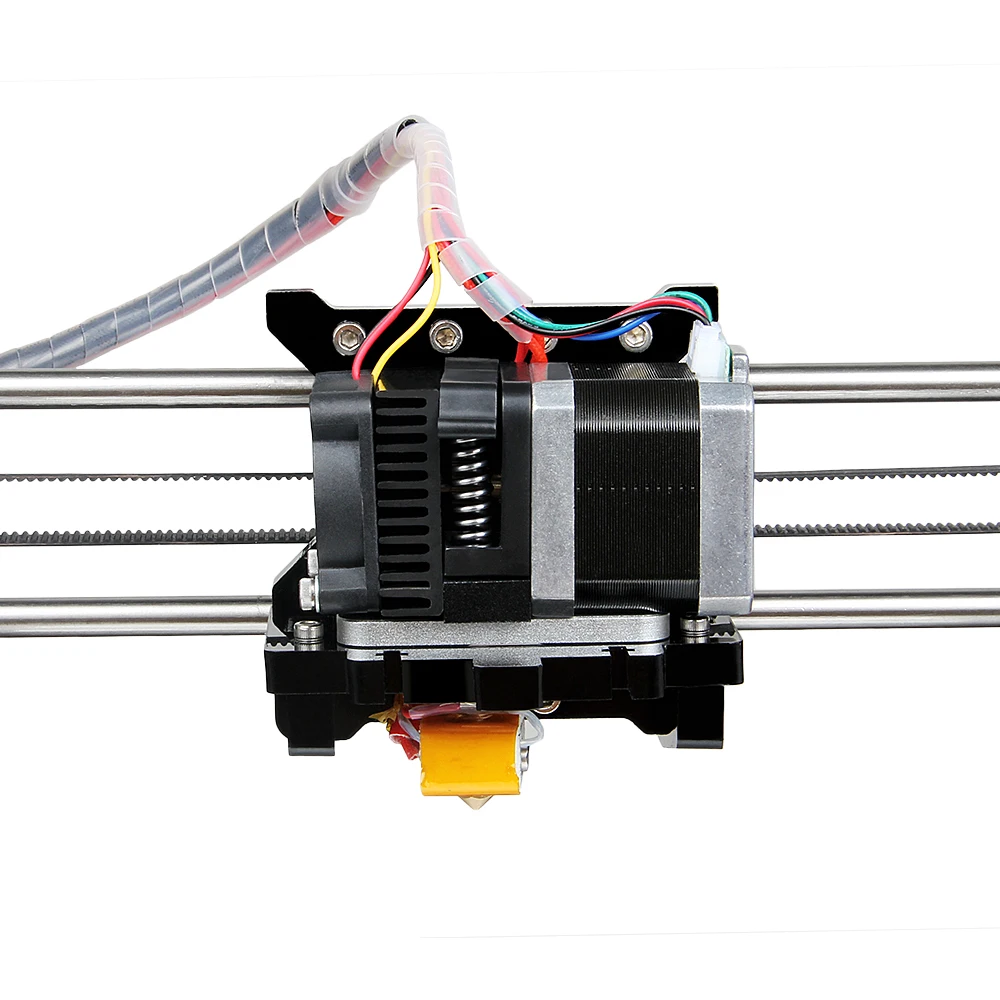

2. Switchable from dual extruder to single extruder, generating multiple printing effect.

3.  200x200x170mm printing volume, just right for you.

4.  0.05mm printing precision,

5. 8-mm-thick laser cut acrylic frame for rigidity and long life

6.  Stainless steel rail rods, gears, bearings and connectors for smoother movement

7. All metal pulleys for improved functionality and performance

8. Super-flat aluminum alloy print surface for better adherence

9.  Quick-release feed gears for faster and fluent filament feeding

10. Filament size: 1.75mm

11. Nozzles sizes: 0.30mm, 0.35mm

Specifications:

Printing specifications:

Print technology: Fused Filament Fabrication (FFF).

Build volume: 200 x200x140mm

Layer resolution: 0.05-0.3mm

Positioning Precision: 0.1-0.3mm

Filament diameter: 1.75mm

Nozzle diameter: 0.3mm, 0.35mm

Filament type: PLA, ABS, Wood-Polymer, Nylon, flexible PLA and PVA.

Software:

Operating system: Windows/Mac/Linux

Control software: Repetier-Host, Printrun

File format: .STL, G-code

Temperature:

Max heated bed temperature:  about 110

Max extruder temperature:  about 260 degrees

Electrical:

Power supply:

Input:

115V/1.5A or 230V/0.75A

Output:DC12V/0-20A

Connectivity: USB, SD card (support stand-alone printing)

Mechanical:

Frame: Laser-cut Acrylic plate of 8 mm thickness

Build Platform: Super-flat aluminum alloy+MK2A heat-bed

XYZ Rods: Wear-resistant, stainless steel

Stepper Motors: 1.8°step angle with 1/16 micro-stepping

Physical Dimensions & Weight:

Dimensions: 490 x 450 x 490 mm

Shipping box: 530 x 455 x 180 mm

Net weight: 8.7kg

Shipping weight: 10kg

Support Easy Print Software

http://www.geeetech.com/specialpage/software/
