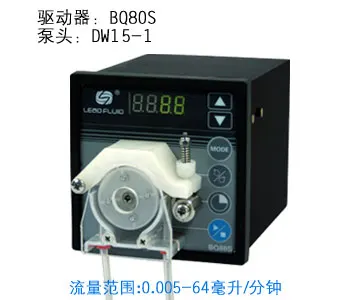

Mini BQ80S / DW15-1 Pump Head

Micro-flow Variable Speed Peristaltic Pump for Water Pumps Fluid

Product introduction

BQ50S Micrometeror Speed Variable Peristaltic Pump can work on the desktop without any fixed plate, meanwhile, embedded design makes the pump can assort with other equipments conveniently .Its flow range is 0.005-20ml/min,Speed range is 0.1-50rpm.Having basic functions such as reversible direction, start/stop, full speed (fast cleaning, empty) and speed- variable. Dispensing function realizes the repeat timing quantitative dispensing. The pump head loads Pharmed BPT tubing whose working life is up to 12000 hours under continuously running. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.

Function and Feature
• Simple operation, small size, easy installation, suitable for ancillary equipment and laboratories.
• Built-in Pharmed BPT tubing whose working life is up to 12000 hours under continuously running
• Four-figure digital LED indicator displays working speed.
• The LED indicator displays the internal, external control mode.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing.
• Speed resolution is 0.1rpm.
• Plastic housing, adopts embedded design, also can work on the desktop separately.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator.
• Can input the electrical level 5V,12V or 24V.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.

Technical parameters
•  Flow range :0.005-20ml/min
•  Flow accuracy:<0.5%
•  Speed range:0.1-50rpm.
•  Speed resolution :0.1rpm
•  Power supply :AC 220V±10%,50Hz/60Hz(standard),
AC 110V±10%,50Hz/60Hz(optional)
•  Power consumption:<8W
•  External control:Input electrical level 5V,12V(standard),24V(optional).
•  External communication interface:RS485 communication interface,
support the MODBUS protocol.
•  Ambient temperature:0 ~ 40
•  Relative humidity:<80%
•  IP grade:IP31
•  Dimensions(LxWxH)112mmx 96mmx96mm
•  Weight:0.7KG

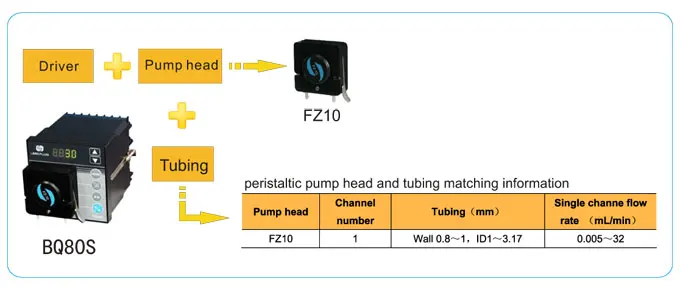

BQ50S/80S Applicable pump head,tubing and flow parameters

Peristaltic pump head and tubing matching information

About Sales:

Contact: My dear friends, if any question please chat us online or mail us:shadowgdbaby@msn.cnwe will get back to you immediately!

Order: When you place order also please tell me which tubing size do you need, if you don't know how to choose pump and tubing, pls contact me we will give professional suggestion, thanks！

Shipment: We will send out your order within 5-7 days via Fedex/DHL/UPS/TNT

Usually it takes about 5-7 working days on the way to worldwide, but sometimes some delay would happen out of our controls, hope you could wait in patience and understand this.

After-sales service: We have a strong after-sales team, experienced engineers and senior technicians. If you have any questions about the products, please contact us in time. We will solve them at the fastest speed, repair and replace them, and provide technical support.

Warranty period:1 year

Feedback: We will check item before shipment, but if there is any problems or defective, do not leave me negative feedback and please do not hesitate to contact me and I will do my best to assist you.

And our items are all good quality and 100% Quality assurance.

If need in large quantities, please contact us,

We are willing to give you very good wholesale price and favorable postage.

Thank you !!!
