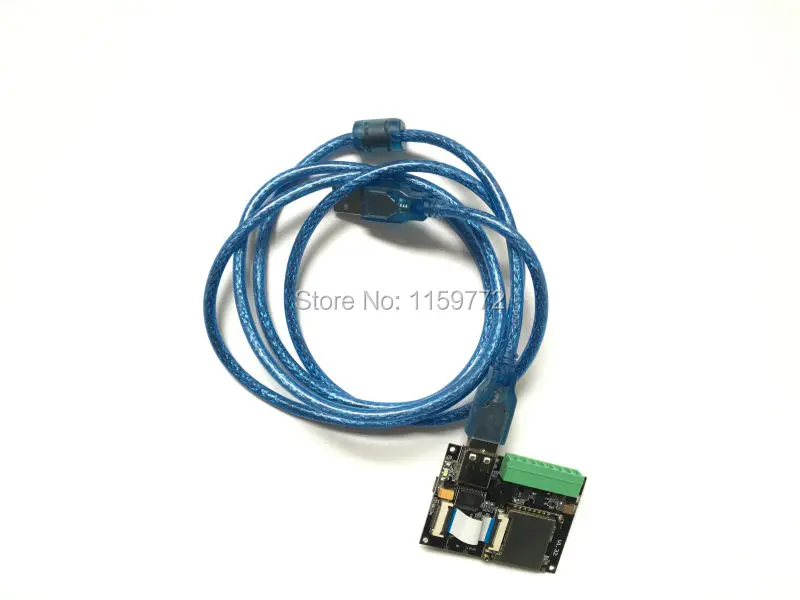

USB 2.0 desktop uhf rfid reader writer 860-960 Mhz build-in 2 dBi antenna + Free SDK source code ISO18000-6C/ 6B | Безопасность и

Operating voltage

DC 3.5V – 5 V

Standby current

<80mA (EN Feet high level)

Sleeping current

<100uA (EN Feet low level)

Operating current

260mA @ 3.5V (26 dBm Output,25°C).

110mA @ 3.5V (18 dBm Output,25°C).

Starting time

<100mS.

Operating temperature

 - 20 °C  -  + 70  °C

Storage temperature

- 20 °C  -  + 85  °C

Operating humidity

< 95% ( + 25 °C)

The air interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Work spectrum range

902Mhz – 928Mhz

865MHz – 868MHz(Optional)

Working area support

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Mainland China

Japan

Korea

Malaysia

Taiwan

Output Power Range

18-26 dBm

Output power precision

+/- 1dB

Output power flatness

+/- 0.2dB

Output RFID connector

I-PEX

Receiving sensitivity

< -70dBm

Peak speed of inventory tags

> 50tags/Second

Label buffer

200 PC labels  @ 96 bit EPC

Tag RSSI

support

Communication interface

TTL Uart interface

Wigan 26

Wigan 34

GPIO

Two route enter two route output (3.3 V level)

Communication baud rate

115200 bps(Default and recommended)

38400bps

heat-dissipating method

Air cooling (Without extern set heat sink)

FPC connector (20Pin , Pin  separation distance 0.5mm)

PIN

Definition

 Description

1

VCC

Power source  DC 3.5V-5V

2

VCC

3

GND

Grounding

4

GND

5

EN

High level can make the module

6

Reserved

keep

7

Reserved

keep

8

GND

Grounding

9

GND

10

GPIO1

 Input IO1

11

GPIO2

 Input IO2

12

GND

Grounding

13

GND

14

485 Direction

485 data direction control

15

Reserved

keep

16

RXD

UART RXD

17

TXD

UART TXD

18

Beeper

Buzzer control, need external buffer

19

GPIO3

Output IO3

20

GPIO4

Output IO4

PIN

Definition

 Description

1

Antenna

Antenna

2

GND

Grounding

3

GND

4

GND

5

GND

6

GND

7

GND

8

GND

9

VCC

Power source DC 3.5-5V

10

GND

Grounding

11

EN

High level can make the module

12

RXD

UART RXD

13

TXD

UART TXD

14

Beeper

Buzzer

15

GPIO3

Output IO3

16

GPIO4

Output IO4

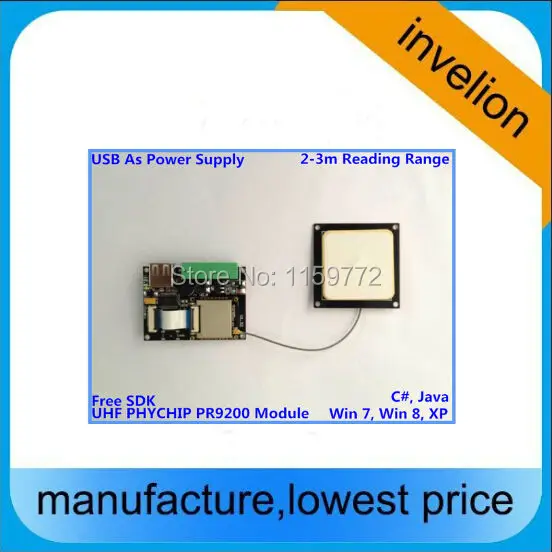

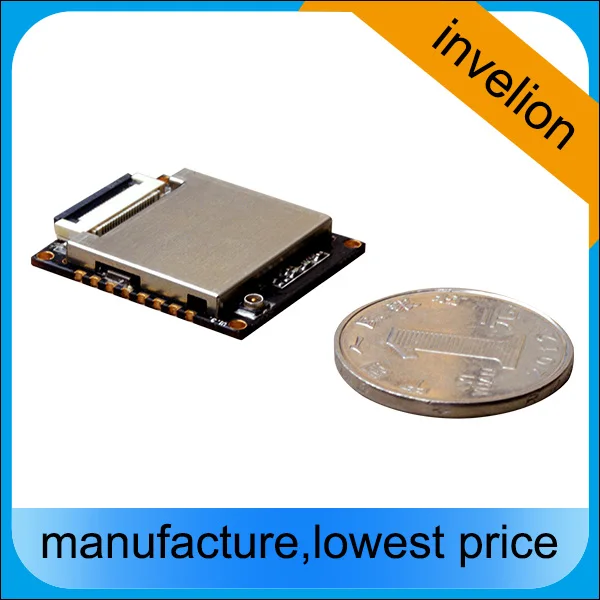

RFID chip indy PR9200

Using most competitive UHF RFID chips in the industry.

Excellent reading labels performance

1,Tag identification sensitivity, stability.

2,Small ceramic antenna stable recognition distance up to 2 -3 m.
3,8dBi circular antenna > 10 m.
4,12 dBi linear polarization antenna > 15 m.
5,Multi-tag identification performance: > 50 tags.
6,The tag identification speed: > 50 tags/second.

Completely solve the problem of fever

1,Without any external cooling devices.
2,Long-term continuous  Workload  unheated at room temperature .
3,Working current < 180 mA @ 3.5 V (26  dBm Output).

Excellent stability

1, 24 h x 365 days work don't crash.
2,Performance by the shell,electromagnetic environment etc. little outside influences .
3,Wide temperature design, WenPiao coefficient is very low.

Excellent consistency

1,A masterpiece in consistent design.
2,All use the highest level of components, guarantee the stability of the various parameters.

Concise and efficient software and hardware interface

1,with our INDY R2000 series communication interface compatibility, easy used interchangeably.
2,Peripheral circuit is extremely simple, single power supply, without external tantalum capacitor.(see figure 1: reference design circuit).

Support two installation methods at the same time

1,support "RFID connector + FPC connector" installation method.

2,support surface mounting soldering.
