5MP HD USB CCD Camera Digital microscope Electronic Eyepiece with C mount micrometer Free Driver

Specification

The equipment:1 / 2.5 CMOS Color, 5MP

Sensitivity:1.4V/lux-sec@550nm

Resolution:2592 * 1944 effective pixels

Spectral response:400nm ~ 1000nm

Pixel Size :2.2μmm x 2.2μm

Data interface:USB2.0 (480 Mbit / sec)

Frame rate:  15fps @ 2592*1944  /  30 fps @1920*1080

Shutter:Electronic Shutter

SNR:42.3 dB

Scan mode:Progressive

Operating temperature:0°C~50°C

power supply:No external supply

Electric current:≈200 mA

White balance:Automatic / manual

Automatic Exposure Control

Software features:Image display, image capture, video

Applications:Microscopic imaging, general image acquisition, macro imaging etc.


1. Using high-resolution image sensor, color reproduction is good, high definition;

2. 1 / 2.5-inch progressive scan image sensor, hardware 5,000,000 pixels;

3. USB2.0 digital interface, data transfer rate up to 480MPS;

4. Brightness, contrast, saturation, sharpness and gamma is adjustable, plus a simple measurement software;

5. Auto white balance, auto exposure;

6. free driver,support Windows2000 \ XP2 \ Vista \ Win7 operating system;

7. The maximum resolution is 2592 * 1944.

5 million pixel digital camera drive free USB2.0 is the latest of a high-speed USB2.0 interface and a large area array CMOS image sensor consisting of a high-resolution digital cameras , can be widely used in pattern recognition, industrial inspection, medical explicit micro-images and traffic management and machine vision and other fields, more widely used in various fields and image acquisition microscope on various occasions.

 Available in the microscope eyepiece 23.2mm, 30mm, 30.5mm diameter on three.

Shoot high-definition images, color reproduction is good, exposure time, white balance, contrast, brightness, saturation and other parameters to control the software automatically.
 Installation is simple, free driver USB2.0 interface, plug and play. Dynamic recording function, the compression format is extremely convenient storage.

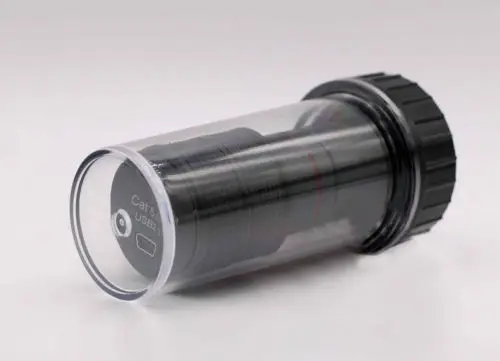

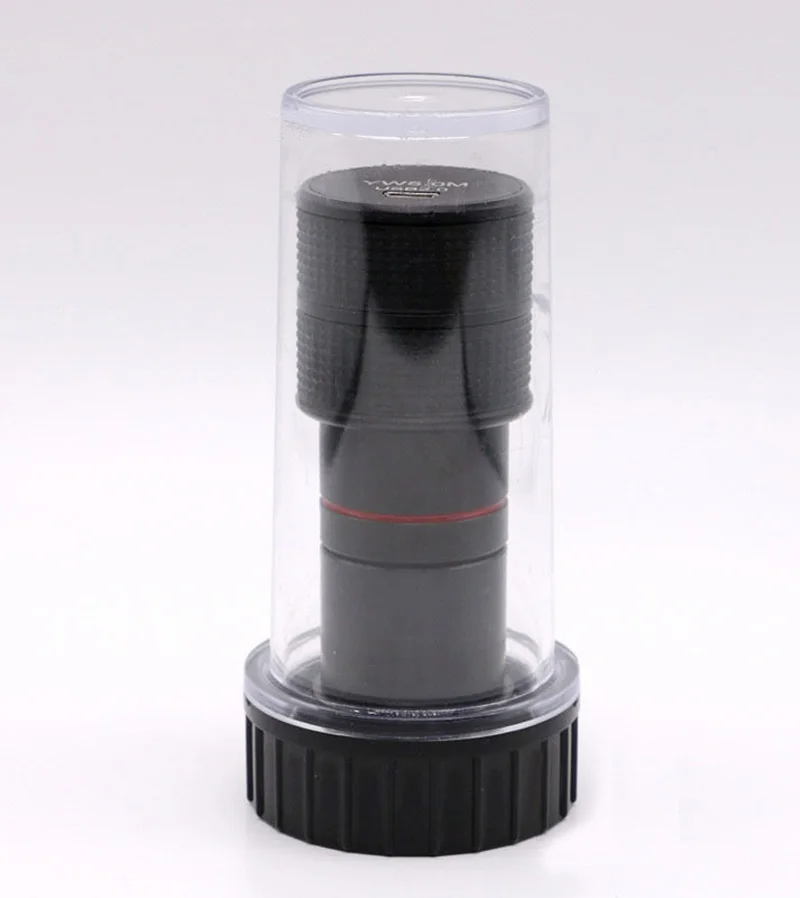

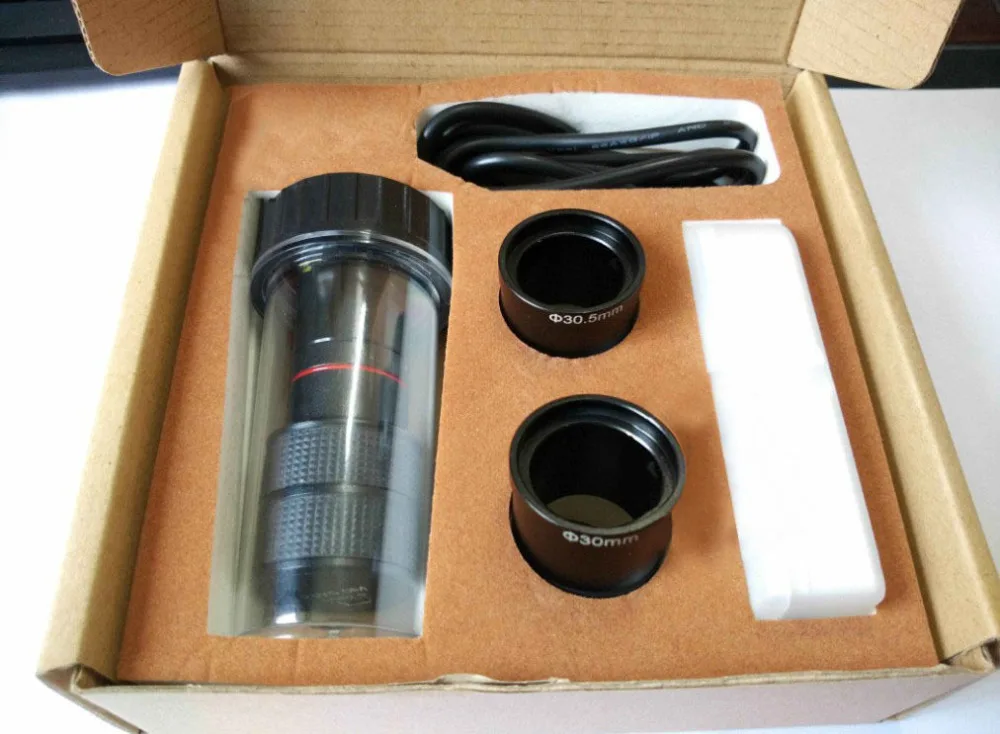

Package include:USB electronic eyepiece + high dust storage cup + USB cable + 23.2mm 30.5mm ring + 23.2mm turn turn 30mm ring + micrometer

Products Display
