Описание товара

Free Shipping 220V 1CH 10A Radio Wireless Remote Control light Switch Learning Code With Waterproof Transmitter Output Adjusted |Free Shipping 220V 1CH 10A Radio Wireless Remote Control light Switch Learning Code With Waterproof Transmitter Output Adjusted |


Free Shipping 220V 1CH 10A Radio Wireless Remote Control light Switch Learning Code With Waterproof Transmitter Output Adjusted

Channel: 1CH

Working Voltage : 220V (180V-240V)

Max load current : 10A  (have better lower than 7A)

Working Frequency : 315Mhz/433Mhz

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Jog .Inter-lock .Self -lock is Adjustable

Code type :Learning code

Switch size :55*32*17mm



working/output way



 Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control )

Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control  )



Learning  method



Input AC220V for the Receiver. press the Learning Button until the Led indicator ON.  Then press transmitter , the Led indicator flash fast, it mean learning successfully.



Clearing Code:



Keeping press the learning Button on the receiver until the Led indicator ON and flash fast, it mean the code have been cleared successfully.



Remote control (transmitter)

Operating Voltage: DC12V

Operating Current: 30MA

Operating Frequency: 315/433MHz

Frequency Distance: 20M-200M

(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).

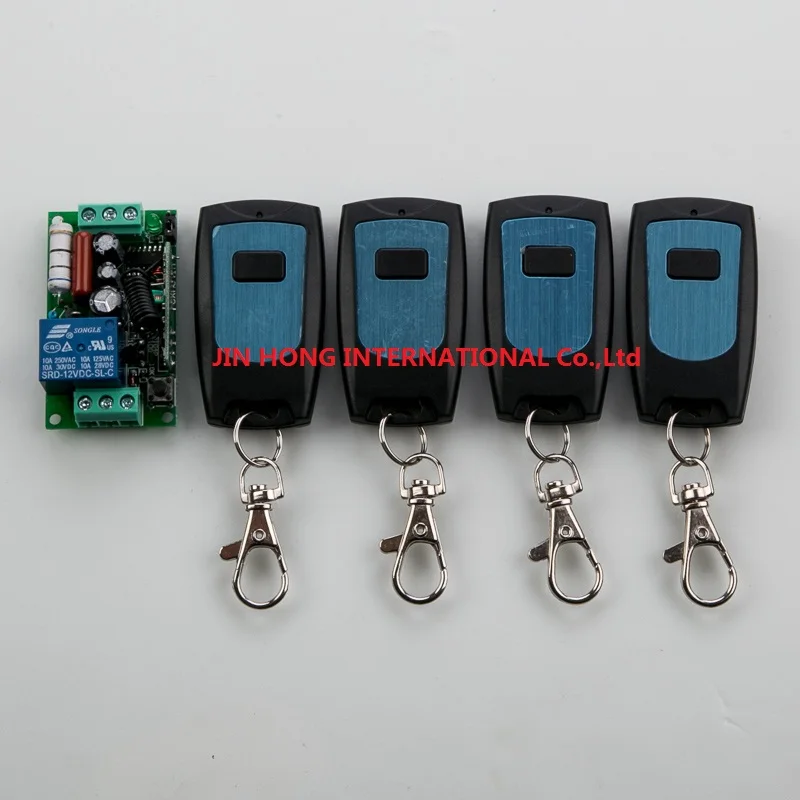

package included:
1*receiver (included cover)

4* transmitter (included battery)

20151212-IMG_2373.jpg20151213-IMG_2618.jpg1-IMG_2562.jpg20151213-1-IMG_2563.jpg20151213-1-IMG_2564 - .jpg20151213-IMG_2564.jpg
