The company introduced a large number of improved wireless charging module, suitable for small size of micro products to achieve wireless charging, due to the small current, receiving common voltage regulator circuit, the volume is very small

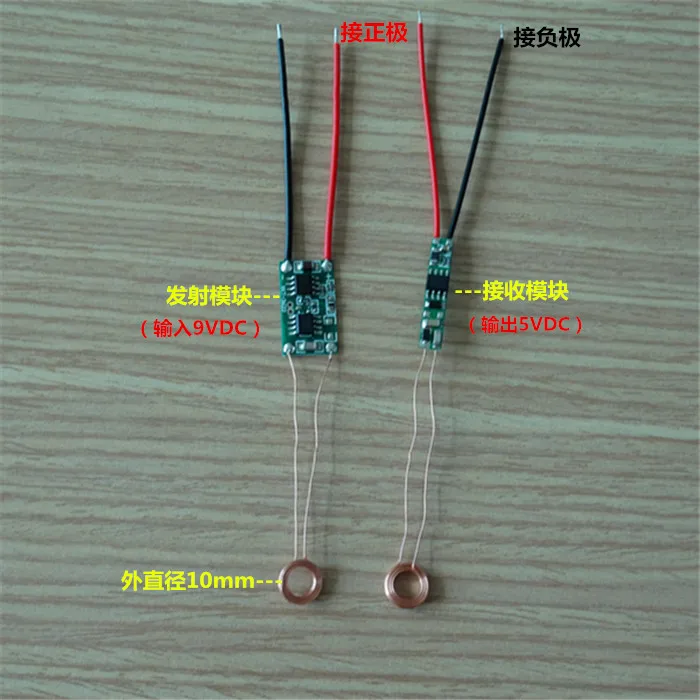

Coil outer diameter 10 mm module

The utility model is suitable for the wireless charging of small size miniature products, and the utility model is very small in volume, and the utility model is small in volume, and the current is small.

Main parameters:

Outside diameter of transmitting receiving coil: 10mm

Emission voltage: 9V

Launch module size: long 22mm* wide 12mm* high 2.2mm

Receiving voltage: standard voltage 5V

Receiving module size: long 27mm* wide 5mm* high 2mm

Receiving current: 50~150MA

Use matters needing attention:

1.Do not input power supply to the transmitter module.

2.Do not receive module output load line positive and negative short circuit

3 do not large area of metal near the coil perimeter

The emission circuit is as follows:

Receive circuit diagram is as follows;

Application domain;

1, mobile phone, MP3 wireless charging

Modern man has become increasingly inseparable from the small electronic products such as mobile phones the, but frequent recharge cumbersome and often plug connection and easy to damage, using our wireless charging module, as long as the phone on the charging plate will automatically charge, can be taken away at any moment or answer the phone, really is too convenient.

2, aquarium lighting and water circulation system of power supply

A fully transparent aquarium in the constantly issued a beautiful colorful lights will let the viewer is very curious, how does it come from? The secret lies in our wireless power supply module, this kind of application also has the market prospect very much.

3, hidden products provide power

Some special occasions needs will be a function of covert installed inside the shell to other products, usually powered by battery, which produced? How to charge the battery problem, leads to the charging connector will be easy to be aware if using our wireless charging module is best solutions.

4, hydrophilic products of power supply

Such as electric toothbrushes, electric shavers such products are often in contact with the water, usually difficult to charging port for waterproofing treatment, using it we wireless charging can the electric part is completely sealed, completely waterproof, dustproof and improve product quality to increase the added value.

5,Waterproof mobile phone or intercom

On the market of mobile phone, walkie talkies typically use the plug-in contact charging, so it is difficult to truly waterproof, using wireless power supply can be fully sealed design completely waterproof.

6Development and application of radio frequency card

Traditional wireless RF card technology to produce energy is very small, so can only achieve confirm the identity of the short distance function, and our module can provide a current of 500 mA, greatly expand the application functions, such as joins the voice prompt, an acousto-optic display or wireless signal transmission function, many places still can use battery design, not only reduce the cost but also improve the service life of the product.

7, the human body medical field

Some medical equipment must work in the human body, such as the timing of drug pump, capsule endoscope, the use of wireless power supply can greatly extend the working hours of equipment, very practical value
