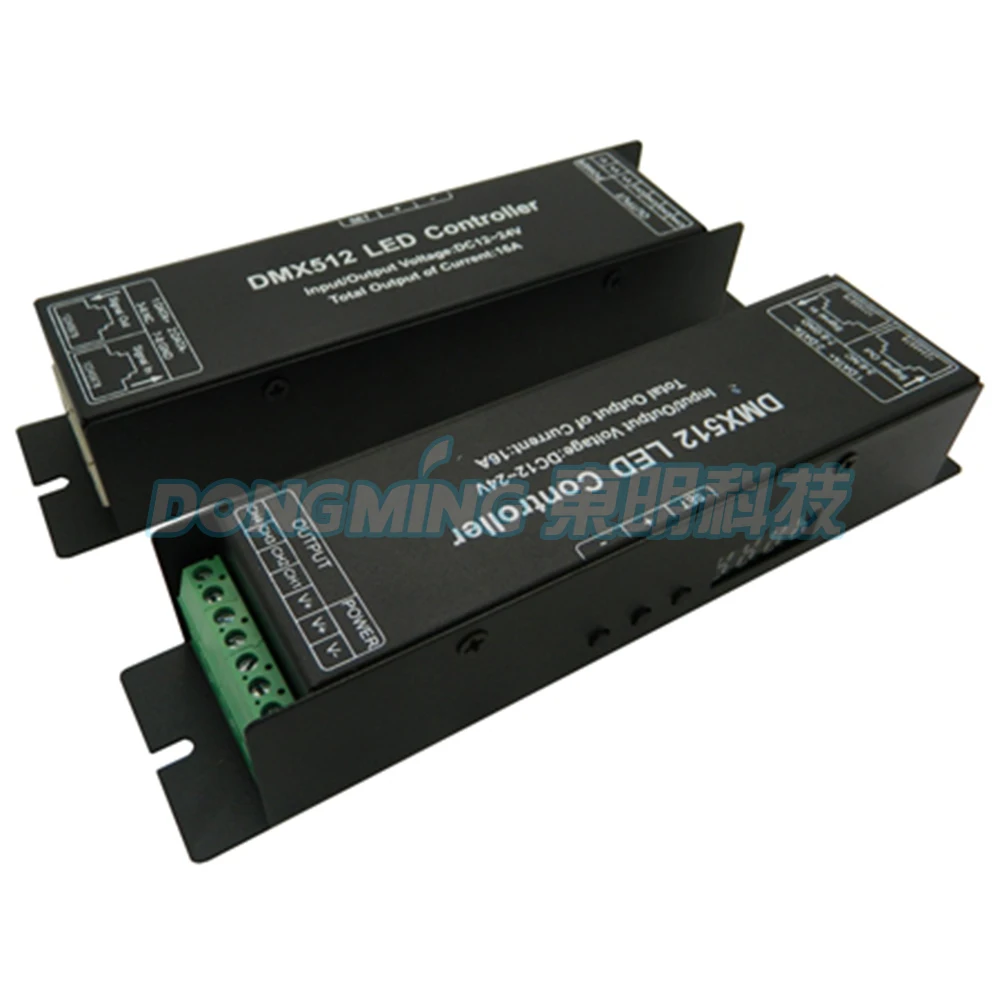

DMX 512 Decoder DMX512 LED RGB Controller,DC5-24V 4A 4 Channels for RGB Ceiling Lamp,Led Strip light,Retail,Wholesale

Product Description:    DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures. Technical Parameters 1. Working temperature: -20-60 2. Supply voltage: 5V-24VDC  3. Output: 4 channels 4. External dimension: L165ΧW68ΧH40mm 5. Packing size: L180ΧW95ΧH60mm 6. Net weight: 320g 7. Gross weight: 355g 8. Static power consumption: <1W 9. Output current: each channel 4A/8A 10.Output power: 12V:<192W,  24V:<384W

How to use? 1.  DMX address code settings: Each DMX common controller occupied 3 DMX addresses, adopt coding switch set address, it is a Binary numerical code switch which is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest, 511 address codes could be setted in all. DMX original address code equal aggregate value of the coding switch value from 1 to 9, dial the coding switch upwards (ON is setted 1), the value of bit can be gotten, on the contrary, the value of bit is 0.  DMX signal can be received when coding switch FUN(10)-OFF(ON is setted 0).  2. Other functions direction for use:  1) Testing function:  The tenth bit of coding switch is FUN, that is a built-in function button. FUN=OFF shows the DMX decoder function, DMX signal can be received.   The default coding switch 1-9 is off: black   Switch1=ON: red Switch2=ON: green Switch3=ON: blue Switch4=ON: yellow Switch5=ON: purple Switch6=ON: cyan Switch7=ON: white Switch8=ON: seven-color jumpy changing(8 steps speed) Switch9=ON: seven-color gradual changing(8 steps speed) 2) The speed choice of jumpy changing, gradual changing effect    When test the function, switch 8=ON shows the seven-color jumpy changing effect, switch 9=ON shows the seven-color gradual changing effect, every effect has 8 steps speed:    Off switch from 1 to 7: 0 steps    Switch1=ON: 1 steps  Switch2=ON: 2 steps  Switch3=ON: 3 steps  Switch4=ON: 4 steps  Switch5=ON: 5 steps  Switch6=ON: 6 steps  Switch7=ON: 7 steps  There are several switches=ON at the same time, the great value is standard. All dial code switches=ON, the state of the decoder shows: to test the functional effects of gradual changing, the speed of change is 7. 3)Typical applications: 1) The connection of low-power LED lamps 2) The connection of high-power LED lamps   Package:    1pcs DMX512 4A Decoder
