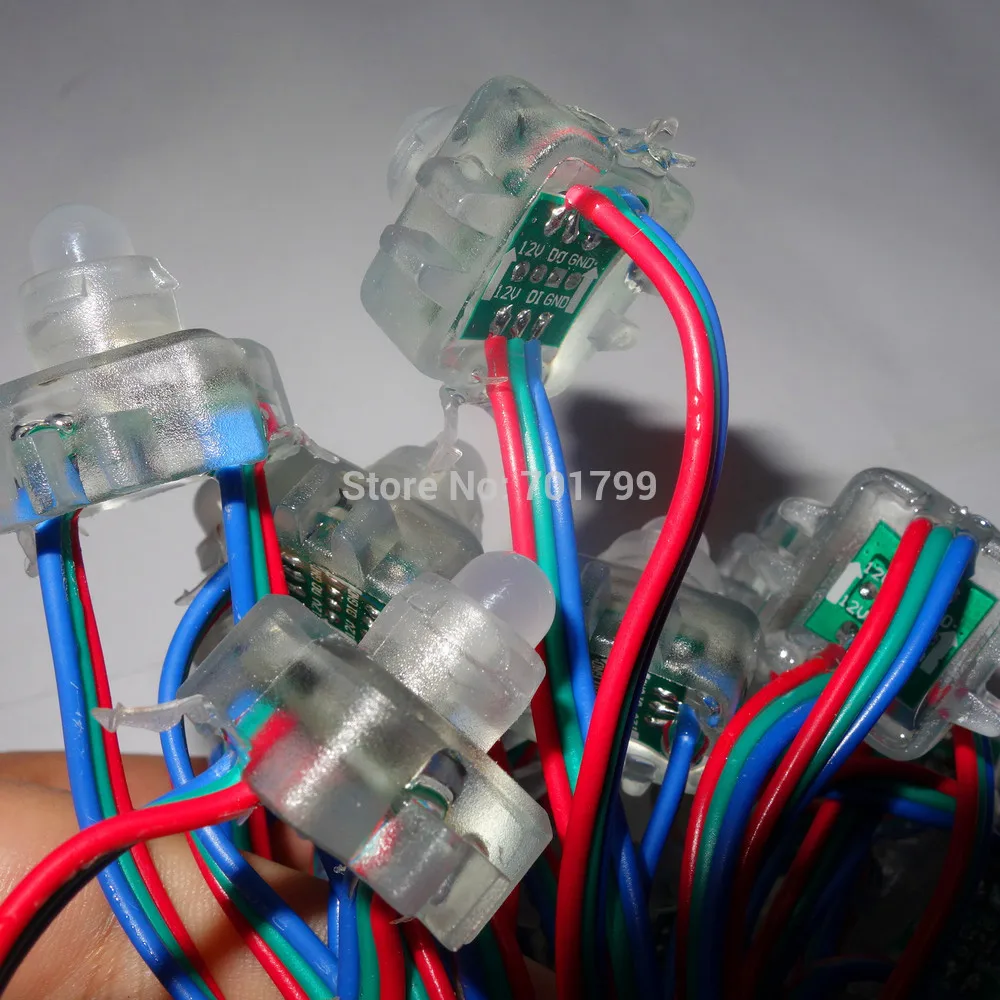

18AWG wire 100pcs/string DC12V square type WS2811 addressable RGB led smart pixel node,with RGB color wire,IP68 rated


wiring instruction:

input:the side without IC of the pcb

the first wire from left: DC12V+

middle wire: DAT

the  left wire from the left : GND

Features:

1. Adpots high quality 8mm 0.24w round hat RGB LED as lighting source.

2. With good proection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4. It is easy installation, open hole.

5;good waterproof type,IP68 rated,epoxy resin filled

6;using the strong cabe,with good cold resistance ability

7:works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

Part No

RA-2811-12V-IP68-RGB-100-18AWG-S

Color

full rgb color,24bit,256 gray scale

LED Qty

1pcs 8mm round hat 0.24w rgb led with 4pin common anode

Input Volt

DC12V

Max current

66MA

Max Power

0.8W

Driver method

Constant current circuit

Dimension

12mm diameter(open hole)

Viewing angle

100-120degree

Protection Level

IP68

Certification

CE and RoHS

Standard connection

10pcs module per string

Standard wire length

100mm(18AWG) RGB color wire

Housing

transparent PVC

Fixed way

12mm diameter open hole; 25*18.5*22mm

Lifespan

35000 hours

Warranty

2years

Operation temperature

-40-50

Store temperature

-50-60

Applications:

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
