Ювелирные изделия Тег решение для печати Этикеток Штрих кода Принтер Пакет с

Printing method

 Direct thermal & Thermal Transfer

Printing resolution

300dpi

Printing Speed

1~up to 4ips (25.4~101.6mm/s)

Printing Length

Max 50”(1270mm) / Min 0.2”(5mm)

Printing Width

Max 4.1”(104mm)

Memory

8MB DRAM (5MB user available)
8MB Flash ROM (6MB user available)

CPU Type

32 bit RISC microprocessor

Sensors

Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed) / Hea

Operation Interface

LED Indicator(Power/Ready)x2, Botton(Feed)x1

Communication Interface

Parellel, RS-232, USB, Ethernet(CP-3140LE)

Fonts

Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
I

1D Barcodes

PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digi

2D Barcodes

PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes

Graphics

PPLA: PCX, BMP, IMG and HEX format files
PPLB: PCX and Binary raster, BMP and GDI

Emulation

PPLA, PPLB

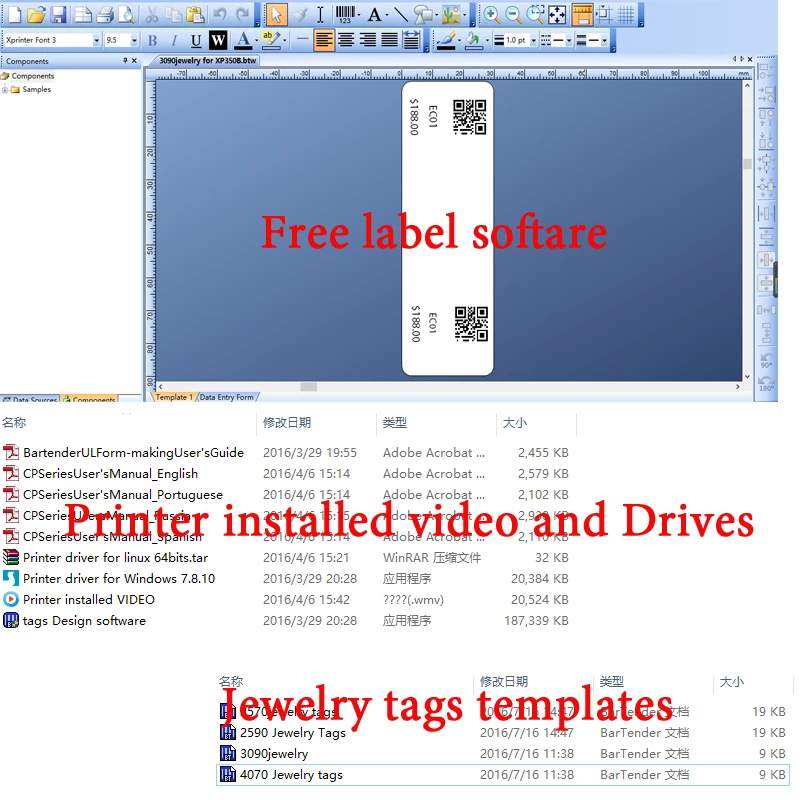

Software - Label editing

Windows Driver, Bartender

Software - Utility

Printer Utility, Font Utility

Media Type

Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric la

Media

Max Width: 4.3”(110mm)
Min Width:1”(25.4mm)
Thickness: 0.0025”~0.01”(0.0635~0.254mm)
Max

Ribbon

Ribbon roll-max OD:2.6(67mm)
Ribbon Length: max 300m
Core size - ID:1”(25.4mm)
Ribbon Width

Dimensions

L273mm x W225mm x H186mm

Weight

2.1Kg

Power Source

Universal Switching Power Supply AC Input:100~240V,1.5A, 50-60Hz
DC Output: 24V, 2.91A Typical, 7

Media Stacker

Standard

Optional Items

Cutter, RTC card, ArgoKee

Agency Listing

CE, FCC, cTUVus, CCC, RoHS

Attention

*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied
