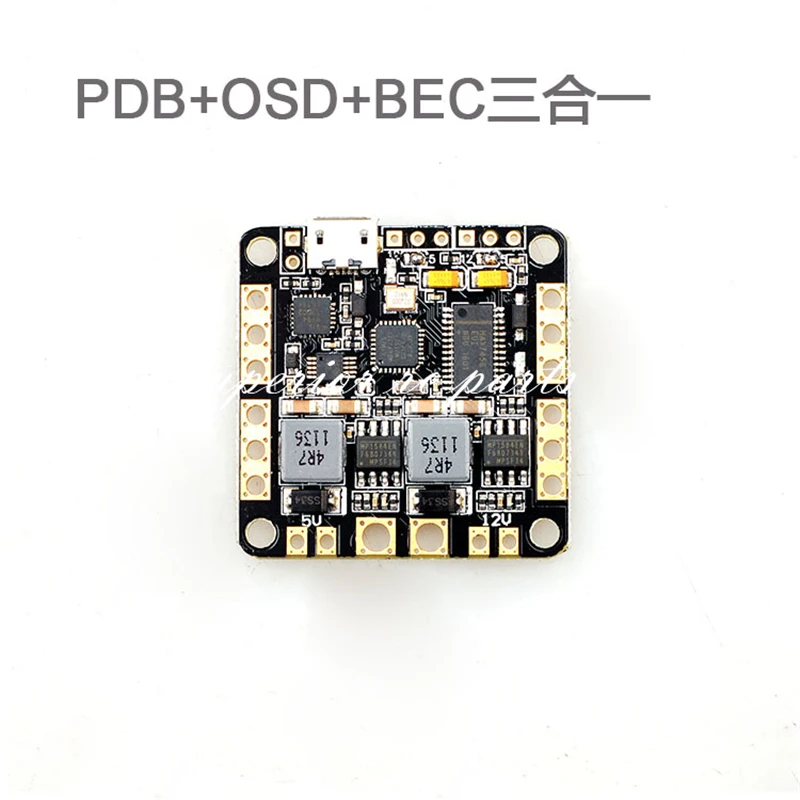

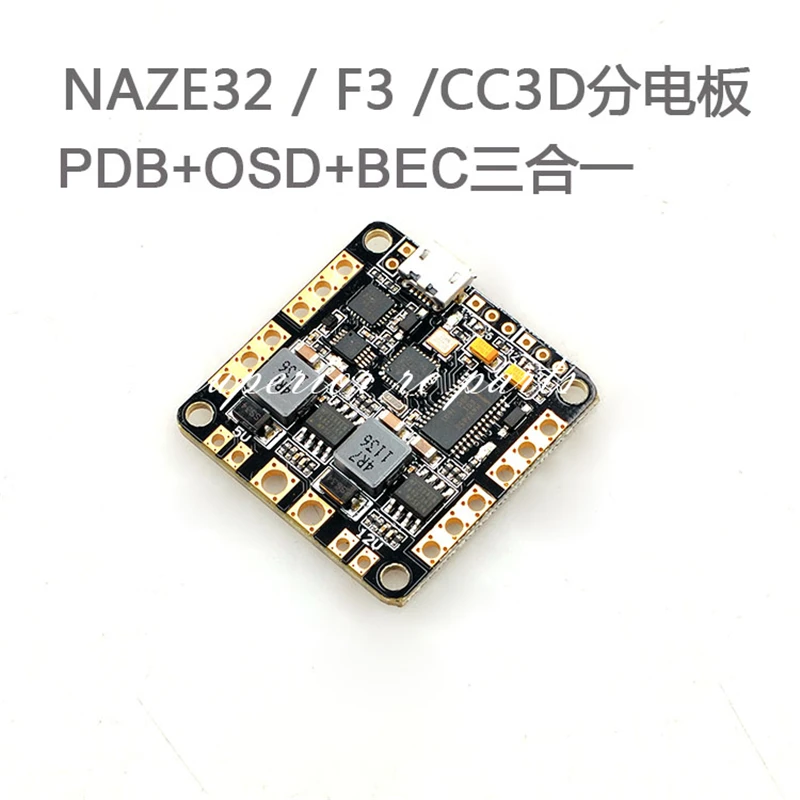

Naze32 F3 CC3D 3 in1 Power Distribution Board PDB Integrated OSD BEC for FPV

Description:
Program flashed already.
MinOP OSD fit for CC3D flight control
MW OSD for NAZE32 FLIP32 SPRACINGF3 etc. Cleanflight/Betaflight/Baseflight flight control
OSD interface can be configured by software
Foreign latest design, original ftdi switching technology PDB+OSD+UBEC (USB settings OSD will automatically disconnect the flight control link) filter integrated circuit board, integrated more and more stable more convenient debugging, power is more pure. There is no clutter, the figure is farther and more clear! More integrated OSD support APM NAZE SP3 CC3D......

Specification:

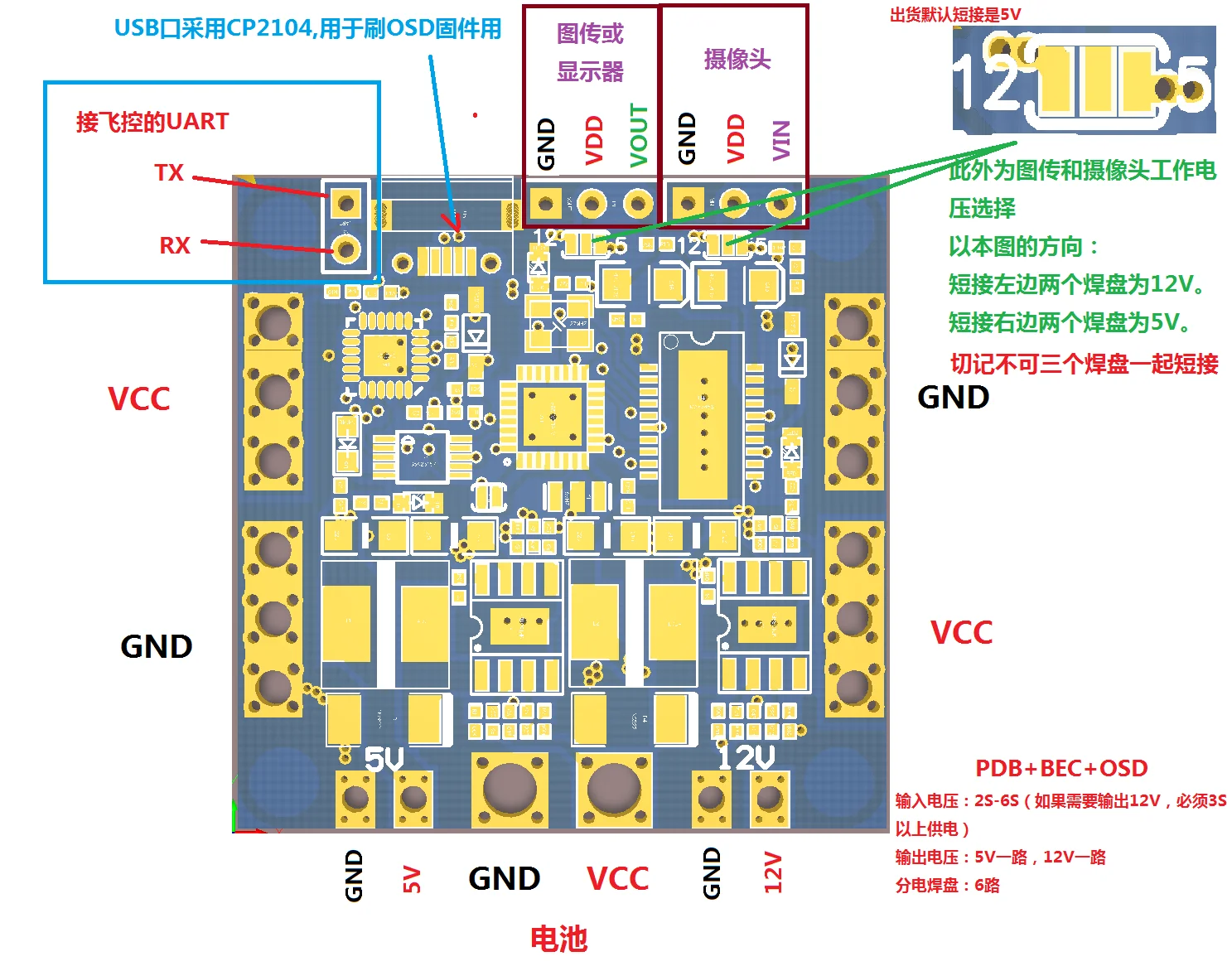

-Function: integrated panels, dual BEC, OSD, OSD and control automatically disconnect function;
-Input voltage support 2-6S;
-12V 5V solder joint for camera and telemetry parts;
-2oz copper foil 4 laminates PCB
-Battery electrically adjustable pads are arranged in pairs, which is convenient for welding wire
-Dual channel BEC, DC-DC synchronous rectifier 5V regulator (3A)
-With OSD function, support MWOSD KVteam and other firmware, comes with FTDI;
-OSD and PC will automatically connect and disconnect the TX RX flight control;
-36*36mm, the installation hole distance 30.5mm (with Naze32, CC3D, SP3 and 36*36 size flight mounting hole);

Package Included:
- PDBOSD board*1
