The postage will be subject to the actual weight.Because the product too much We have all range of Pneumatic and hydraulic components in SANMINSE store ,cylinder with MXQ.MXS.MXF.MXW.MXH.MXP.MXJ.CY1L.CY1S.CY3R.CXSJ.CJP2.CJP.CJ1.CQ2.   Air Compressor Parts ， Compressed Air ， Pneumatic Components ， Pneumatic Parts , Air Cylinder , Compressed Air Cylinder , Pneumatic Actuator , Pneumatic Cylinder , Pneumatic Cylinder Bore .

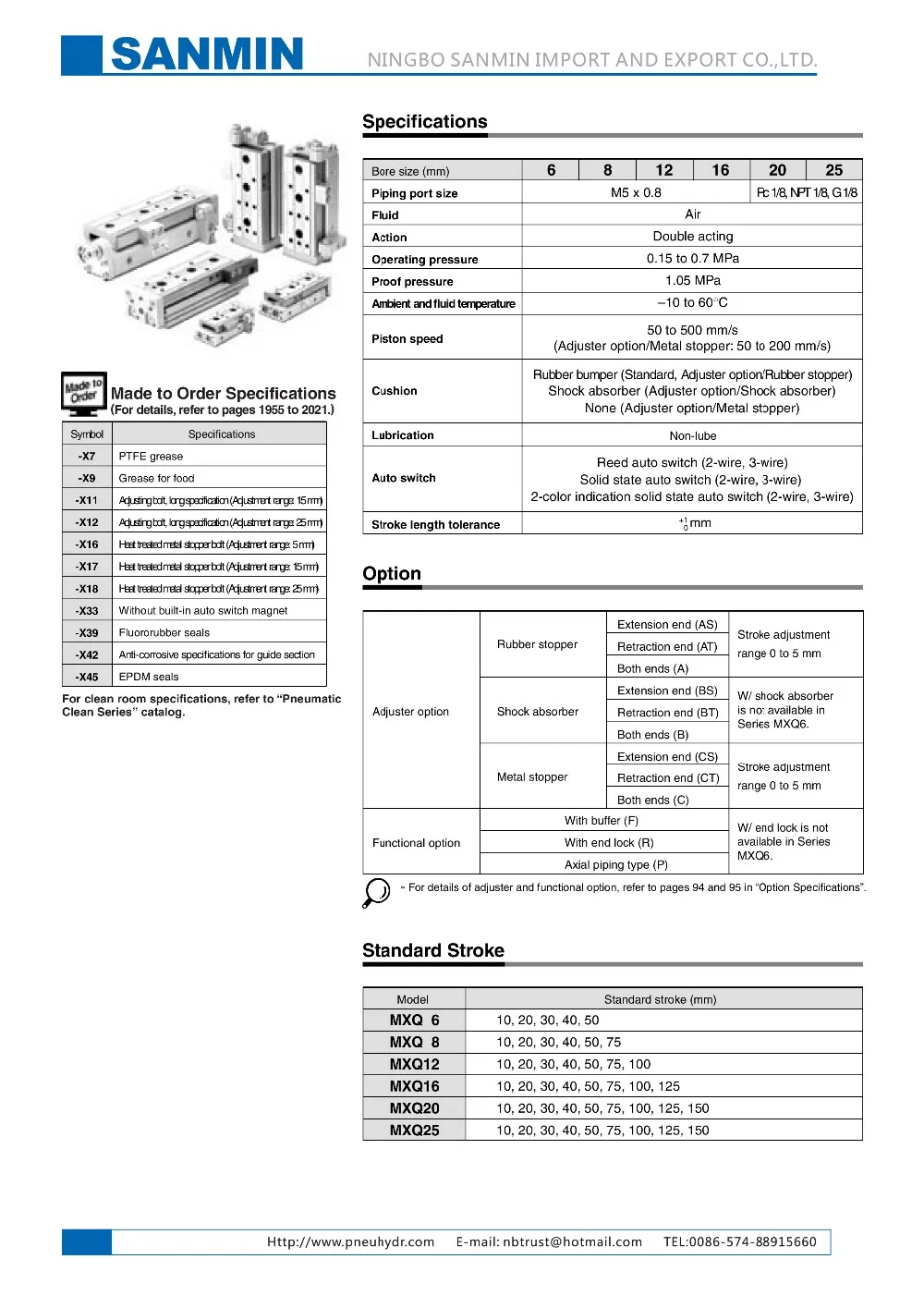

Specifications



Bore Size ( mm )	6	8	12	16	20	25
Piping port size	M5 × 0 . 8				Pc1 / 8 , NPT1 / 8 , G1 / 8
Fluid	Air
Action	Double acting
Operating pressure	0 . 15 to 0 . 7 MPa
Proof pressure	1 . 05 MPa
Ambient and fluid temperature	-10 to 60 ℃
Piston speed	50 to 500 mm / s (Adjuster option / Metal stopper : 50 to 200 mm / s)
Cushion	Rubber bumper ( Standard , Adjuster option / Rubber stopper ) Shock absorber ( Adjuster option / Shock absorber ) None ( Adjuster option / Metal stopper )
Lubrication	Non - lube
Auto switch	Reed auto switch ( 2 – wire , 3 – wire ) Solid state auto switch ( 2 – wire , 3 – wire ) 2 – color indication solid state suto switch (2 – wire , 3 – wire )
Stroke length tolerance	+1mm 0mm

  Why choose us                                                                                                                                           1: Various style for each products and completely series pneumatic products . 2: Large stock for fast shipping . 3: High quality with competitive price . 4: Sample order & small quantity order is acceptable . 5: Customize according to your special request . 6: Provide free products information . 7: Reliable quality assured and active after-sell service 8: One year quality guarantee 9. Ina Chen M(Whatsup):+86 15168536055   Desk phone: +86 574  88915660   FAQ                                                                                                                                                           Q: How much is our minimum order quantity ? A: Our minimun quantity is 1 Piece .   Q: Could you offer the free samples ? A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.   Q: What ' s your business scope ? A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .   Q: What ' s your delivery date ? A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .   Q: What is the price of the product ? A: Our prices are based on the size and type of material , if you can give me the information , then we can give you an estimated price is for reference only . We can do any size and any desgin .   Q: what types of products you can make ? A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .   Q: Do your company have specialized technical personnel ? A: Design as  your requirements,and have QC for make 100% inspection   Q: Can the product be made with our logo and brand ? A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



​​ We have MXQ 6-10 Slide cylinder, MXQ 8-10 Slide cylidner, MXQ 12-10 Slide cylinder, MXQ 16-10 Slide cylinder,   MXQ 20-10 Slide cylinder,  MXQ 25-10 Slide cylinder, MXQ 6-20 Slide cylinder, MXQ 8-20 Slide cylinder,   MXQ 12-20 Slide cylinder, MXQ 16-20 Slide cylinder,  MXQ 20-20 Slide cylidner, MXQ 25-20 Slide cylidner,   MXQ 6-30 Slide cylinder, MXQ 8-30 Slide cylidner, MXQ 12-30 Slide cylinder,  MXQ 16-30 Slide cylinder,   MXQ 20-30 Slide cylinder, MXQ 25-30 Slide cylinder, MXQ 6-40 Slide cylinder, MXQ 8-40 Slide cylidner, MXQ 12-40 Slide cylidner, MXQ 16-40 Slide cylinder, MXQ 20-40 Slide cylidner, MXQ 25-40 Slide cylinder,   MXQ 6-50 Slide cylinder,  MXQ 8-50 Slide cylinder, MXQ 12-50 Slide cylinder, MXQ 16-50 Slide cylinder,   MXQ 20-50 Slide cylinder, MXQ 25-50 Slide cylinder,  MXQ 8-75 Slide cylinder, MXQ 12-75 Slide cylinder,   MXQ 16-75 Slide cylinder, MXQ 20-75 Slide cylinder, MXQ 25-75 Slide cylinder,  MXQ 12-100 Slide cylinder,   MXQ 16-100 Slide cylinder, MXQ 20-100 Slide cylinder, MXQ 25-100 Slide cylinder, MXQ 16-125 Slide cylinder, MXQ 20-125 Slide cylinder, MXQ 25-125 Slide cylinder, MXQ 20-150 Slide cylinder, MXQ 25-150 Slide cylinder.
