waterjet cutting glass , 5 aixs 3D water jet cutting mahcine with high speed

Introduction Water jet Cutting Machine

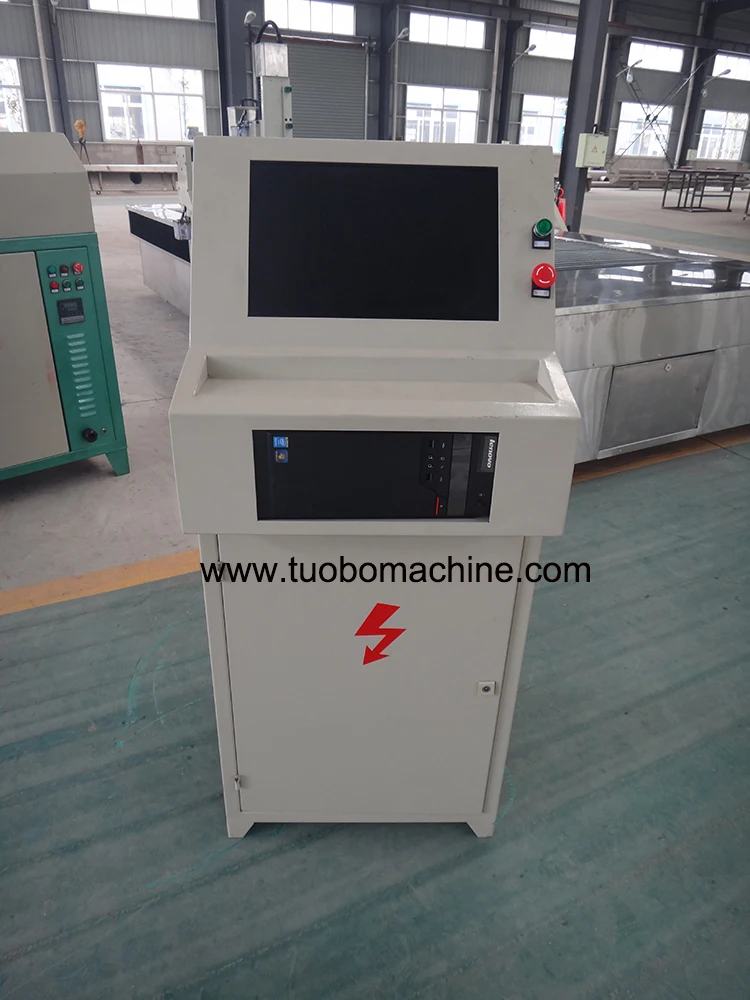

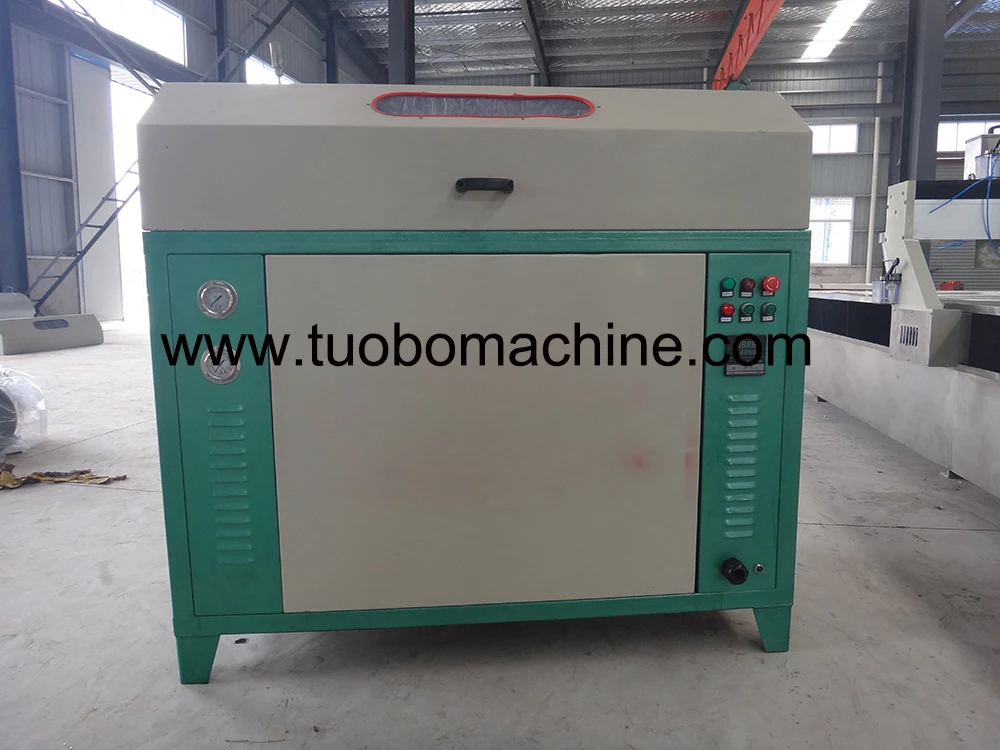

CNC waterjet consists of three parts:Ultra-high pressure water jet generator (high pressure pump),Numerical control processing platform,Water cutting CNC control system.

Working Principle

Water supply is mainly by hydraulic pressure,The basic process is

1. Through high-power motor driven oil pump, resulting in a high pressure of the hydraulic oil.

2. Hydraulic oil into the supercharger, through the reciprocating motion around water pressurization, when pressure, through the electronic directional control valve, adjust the entry of water and oil, so as to complete the water pressure.

3.  After pressure of high pressure water is stored in the accumulator, ready to provide a steady high pressure water cutting.

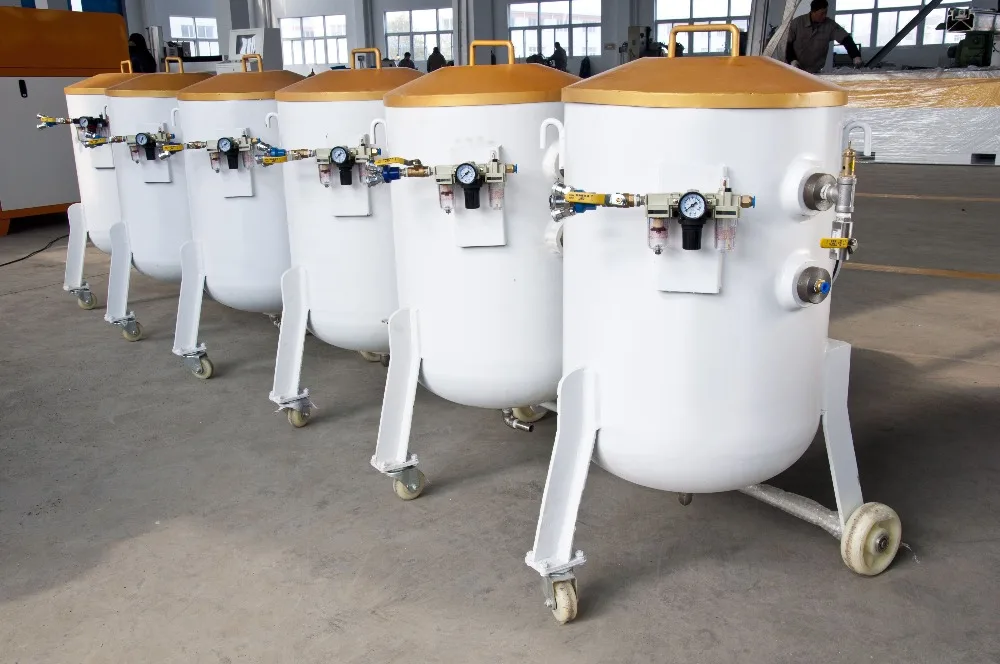

4. Accumulator and the connection between the cutting heads have a high pressure pipe, high pressure water knife on the pneumatic switch, high pressure water through ruby nozzle, then through sand tube nozzle jet, cutting head into the sand tube connected to the sand cone, rely on water jet when the negative pressure, automatic into the sand.It can be used to cut the water.At the same time, through numerical control software, control cutting head in X axis and Y axis movement.

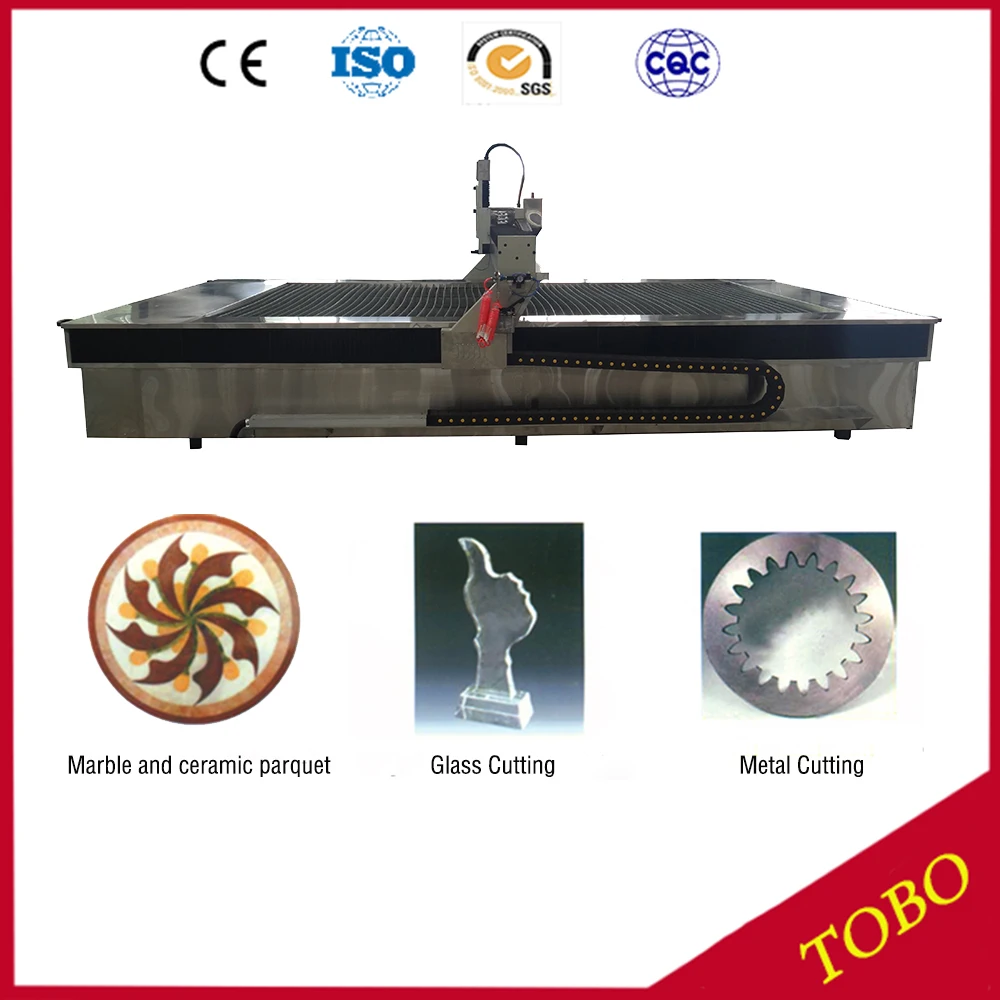

 Applied range

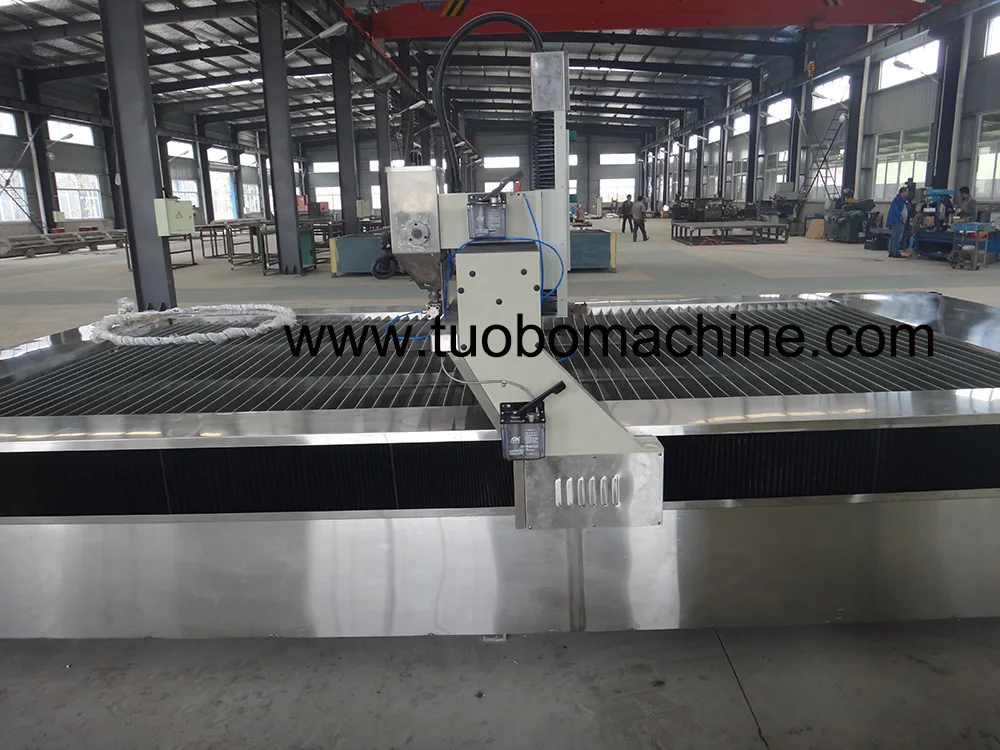

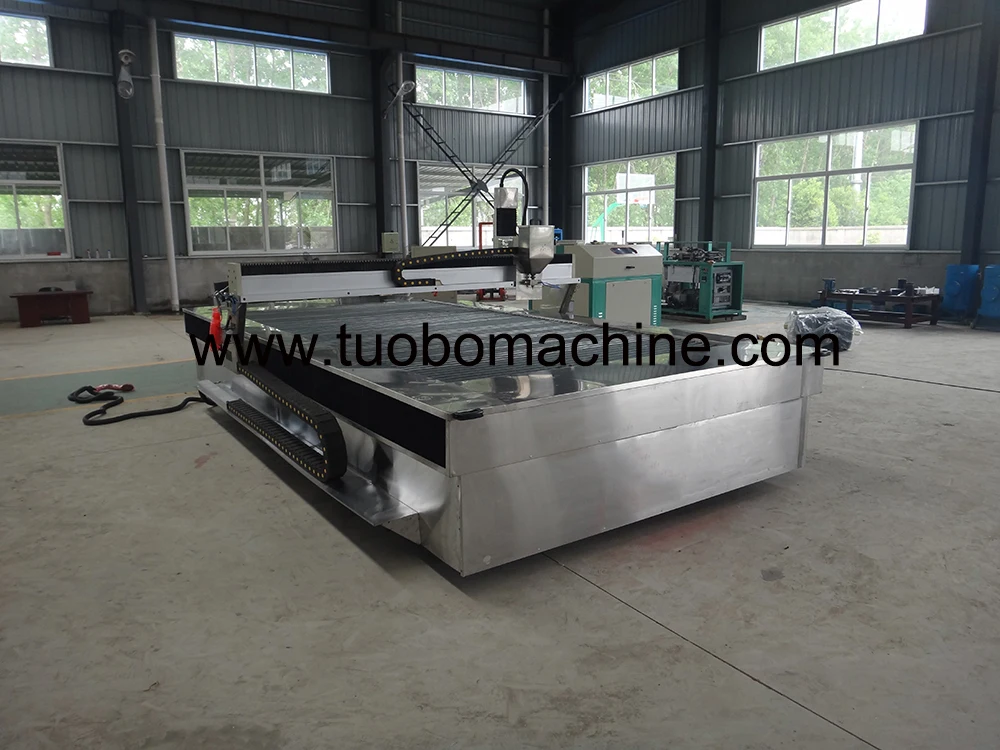

 Machine picture

 The parameters of the machine

 Different materials of cutting speed

 Water jet cutting machine PK Plasma cutting machine,Wire cutting machine,Laster cutting machine

 Processing sample of water jet cutting machine

This price is only the price of accessories, the exact price please contact the relevant person !
