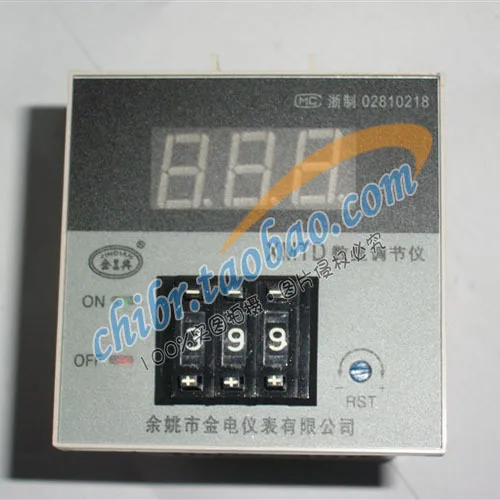

K type XMTD-3301 time scale digital control temperature instrument / gold electric meter |

K type XMTD-3301 time scale digital control temperature instrument / gold electric meter |

Brand: Golden Power

Specification model: XMTD-3301 time scale digital temperature regulator

Instrument precision: 1

Contact output: 3A 220V (resistance)

Working voltage: 220V/50HZ

Measurement range: 0-399

Index number: K type

XMT series digital instrument and traditional XC series moving coil instrument and ordinary te series simulation instrument compared with high precision, strong earthquake, good reliability, convenient installation, clear reading, no parallax, remote viewing, and other unique advantages. In the form of regulation there are two type, three type, time proportional type, SCR continuous regulation, I D P and so on, and can be based on the need to enhance the function of out of gauge, is the XC series of instrument replacement products. Widely used in metallurgy, textile, plastic, incubator, oven, cooling chemical, medical and other industries for about 200 DEG C to 1800 DEG C temperature measurement and automatic control, with corresponding sensors can also be used to display and control the pressure, flow, level and other parameters.

Configuration and installation of the size of the opening unit: mm

Usage method
1, installation of a good size, the instrument into the mounting bracket fastening;
2, according to the correct wiring diagram, carefully check;
3, the temperature sensing element on the right place, and do not pay attention to the power cord or tied in one;
4, after electrify, set the desired temperature value of 90% (dial code can be directly given potentiometer type, then put the switch to "set", turn the knob to the desired value of the dial, in the dial switches to "measure") and several action, in the set to the desired value.
5, the green light that is heated, the red light is stopped heating;
6, equipped with silicon controlled instrument, as found in the voltage across the load of jitter, the terminal pulse output two lines on the exchange.

Note: stating the order product models, specifications, regulating range, sensor equipped with other, such as special specifications, please specify. Such as K0; TEEA-2001 ~ 399; K0; XMTA-3301 ~ 399 CA batch of orders, price negotiable)

Each baby above the marked freight are within one kilogram of the freight, if the purchase of a number of the actual weight of the freight charge!

After you take the picture, we will combine shipping charges and then we will inform you of payment!
