От завода регулятор для водяного насоса переключатель контроля уровня воды

---

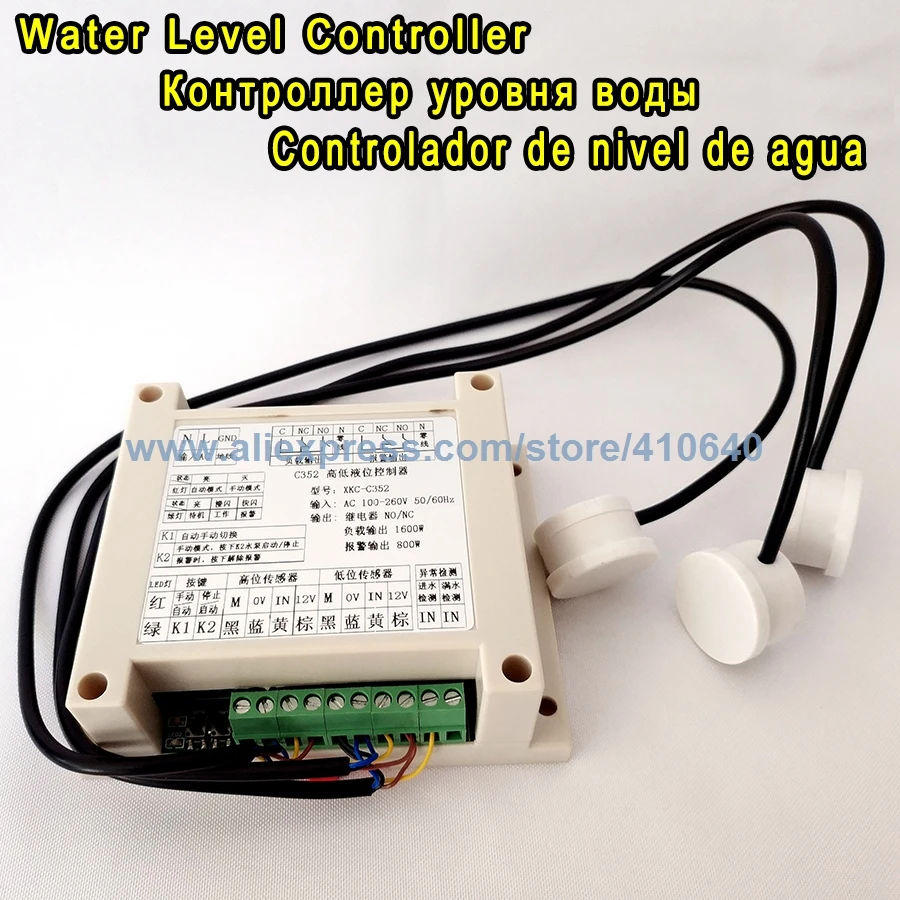

Water Pump Controller/ Water Level Controlling Valve/ Floater Level Controller Replacement/ Water Tank Level Controller

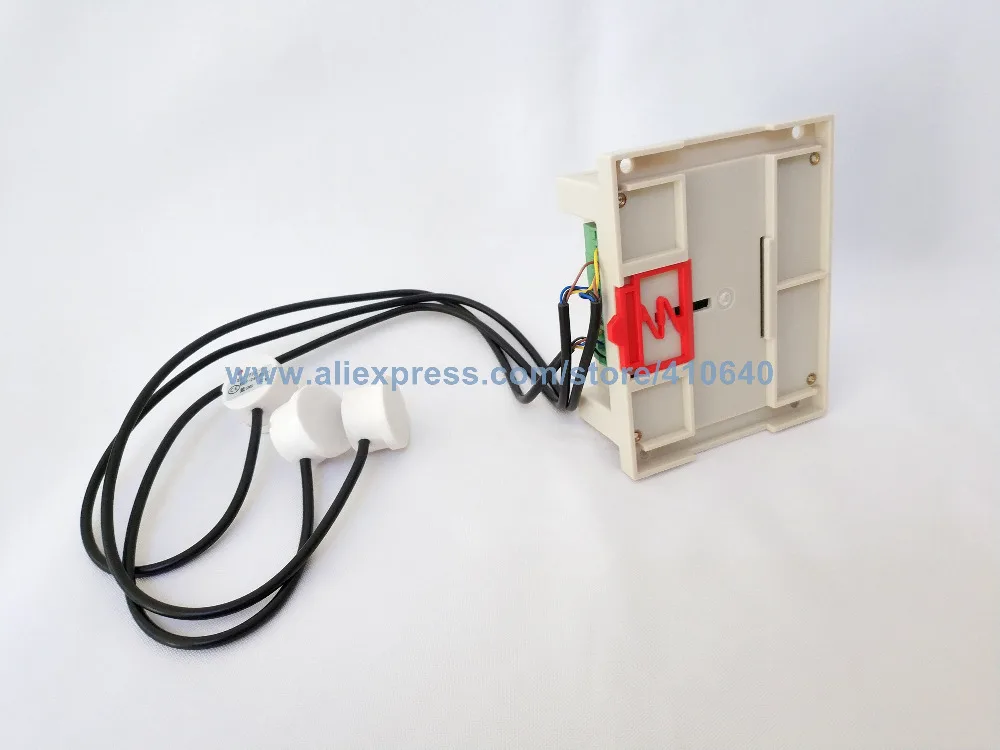

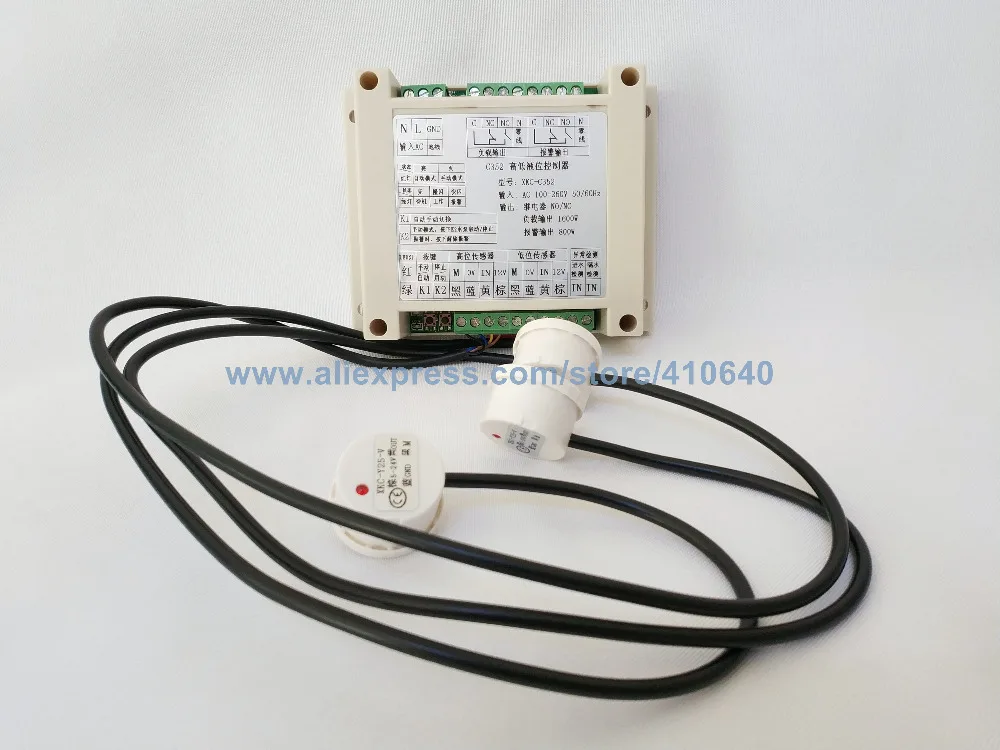

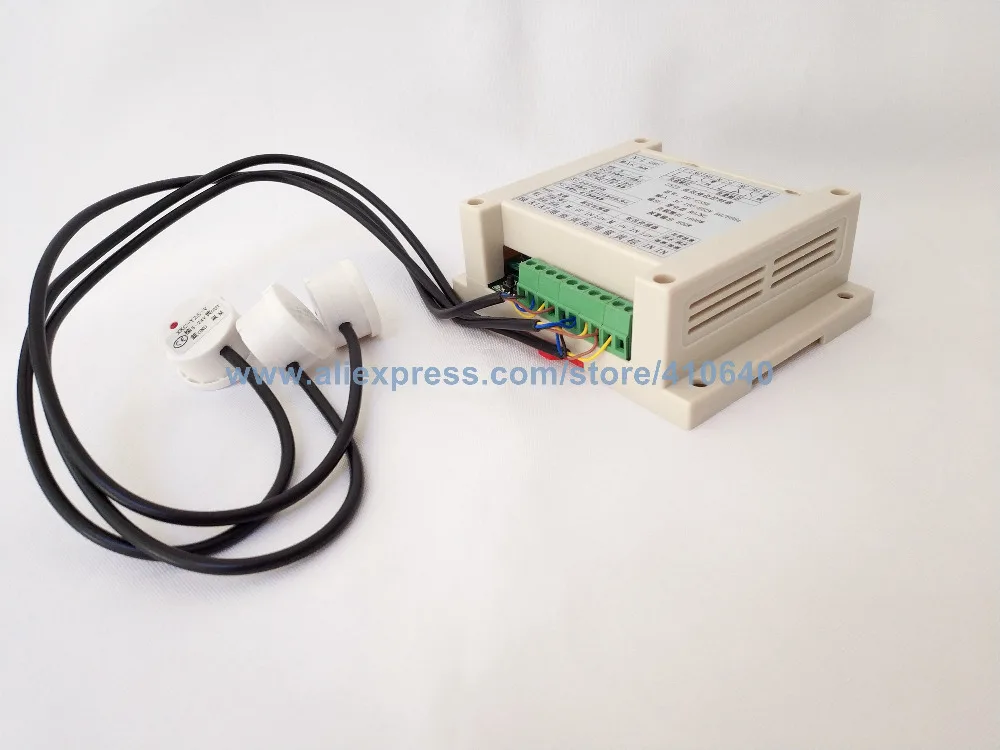

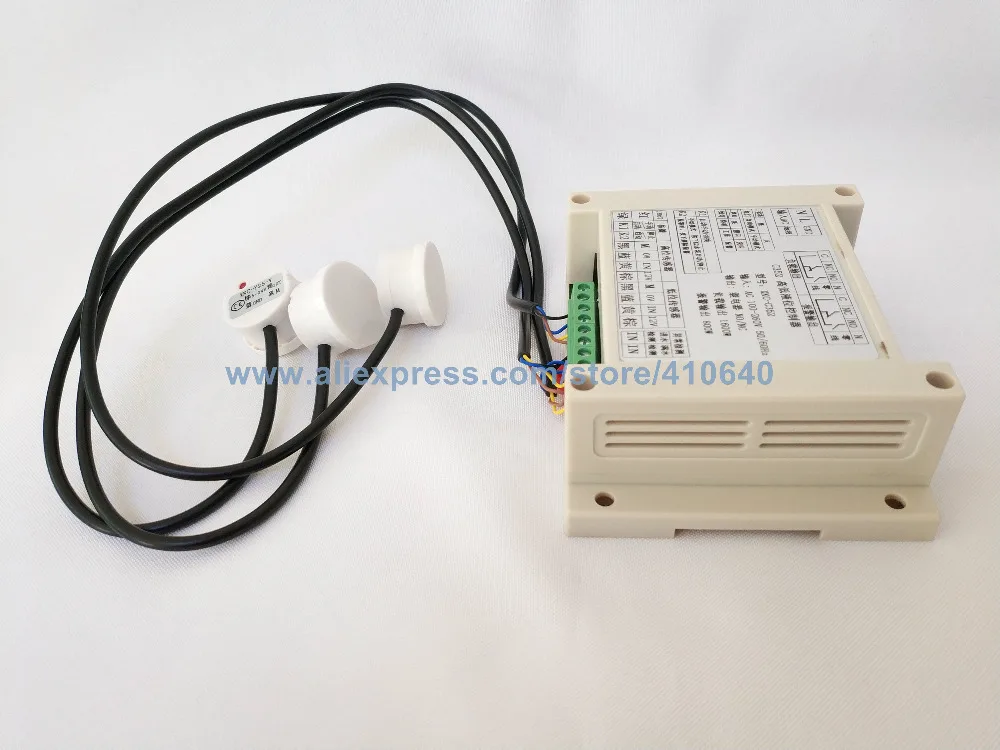

IMPORTANT NOTICE BEFORE YOU ORDER: This link is for "THREE probes level controller" Model: XKC-C352A !!!

The double probes level controller buying link,

The double probes controller buying link

The single controller buying link,

The single controller buying link


  cathy       1. Overview   XKC-C352 low level controllers and XCK-Y25 non-contact liquid level sensor used in conjunction with, and to be with other float level sensors and other uses, low level in the container is too small level emitted by the level sensor alarm when the pump starts automatically added to the signal level, the liquid level reaches a certain height high level sensor sends a signal to automatically stop the pump working, the container liquid level in order to achieve automatic control functions. The controller is protected by a self-test capability with the pump stopped pumping air testing, high overflow detection, pumping out check; control diversification can control the pump in manual mode, the automatic mode can also control the pump; a variety of output, all the way to high load output power control up to 1600W, one alarm output control up to 800W, there is normally open relay outputs can also be AC 110V or 220V output. The controller is a full feature set, suitable for many applications.   2. Characteristics        1, compatibility level sensor input can use a variety of control;        2, strong protection ability, with anti-slip protection and pump water overflow detection output, comes with 4 hours overtime pumping alarm;        3, relay dry contact output, suitable for a variety of load control;        4, the control diversification can be manual or automatic mode to control the pump;        5, easy to install, can be installed positioning screws rail mounting electrical boxes;     3. Electrical Parameters   Model: XKC-C352A   Name: C352 high and low level automatic controller   Input voltage: AC100V-220V, 50 / 60Hz   Operating voltage: DC12V   Current job: working current ≤110 mA, static current consumption ≤20mA   Load power: 1.6KW or less (for three-phase pump overload or the need to install AC contactor)   Alarm output: 800W (resistive load) normally open normally closed output   Output: normally closed or normally open relay AC AC110V / 220V (please leave a message, the default setting to send 220V)   input signal   Low sensor signal input;   High induction signal input;   Pump idling detection signal;   Water overflow alarm signal input;   Sensing head interface voltage: DC 12V   Working temperature: -10 ~ 75C   Dimensions: 115 * 90 * 40     4. Basic Function Introduction   1. The water level control: low water level below the sensing probe, the pump automatically starts to rise, to the high water level, automatically shut down the pump.   2. idle delay to stop the pump: After starting as detected no water supply pipe, the delay of 3 to 5 minutes, turn off the pump. Pumping process, where there is disruption of water flows more than 3 seconds, then immediately turn off the pump.   3. The automatic tracking of water: two hours after idling the pump stops pumping water once every start the pump until the water filled pump stops.   4. pumping overtime protection: Continuous automatic pumping over five hours, automatically stops the pump. Working indicator flashes quickly, press K2 key to stop or delay the automatic recovery standby.   5. Manual and automatic switch: The controller automatically enters the default boot mode, press K1 key to switch the operating mode, the red light for the automatic mode to manual mode the red light off.   6. The non-contact sensing probe: non-contact capacitive sensing technology and a dedicated sensor control chip design, the probe has a durable, strong anti-jamming capability, sensor sensitivity, not in contact with the liquid, corrosion resistance, safety and non environmental pollution.   5: Dimension Drawing     cathy
